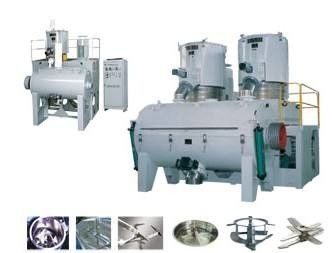

PLC Touch Screen Control Plastic Mixer Machine For PVC Pipe / Profile Making

China PLC Touch Screen Control Plastic Mixer Machine For PVC Pipe / Profile Making supplier

Large Image :  PLC Touch Screen Control Plastic Mixer Machine For PVC Pipe / Profile Making

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE, ISO
Model Number: LB-1000U

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD, EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 30 SETS PER MONTH
Contact Now
Detailed Product Description
Speed Control: Transducer Transducer: ABB
Motor Power: 75 Kw+ 15 Kw Machine Height: 3.5 Meters
Mixing Unit: 15 Minutes Per Pot Motor Brand: SIEMENS









PLC Touch Screen Control Plastic Mixer Machine For PVC Pipe / Profile Making









Application

  • Mixer is mainly used in mixing, drying, the mixture of phenolic resin, powders etc.It is one of the necessary equipment in the industrial of plastic & rubber, pharmaceutical, dyeing etc.
  • PVC plastics mixer is effective, with the high homogeneity in mixture, it`s
  • quite easy for operating and cleaning, as well as the durable compact structure.
  • Stainless steel paddle with scientific structure, able to mix raw material completely; minimize
  • load, save time and electricity; Made of premium stainless steel, high strengthand easy to clean.
  • The unit combains heat mixing and cooling mixing craft together.The materials after heat mixing can be got into cool mixer for cooling automatically,exhausts remaining gases and prevent agglomeration. The unit is developed by importing and advanced foreign technology.
  • Heat mixing has such functions as self-friction ,and electric heating.cool mixer absorbed slowdown tech form overseas,adopts direct slowdown device,overcomes the deadly weakness causing by use of retarder.that makes it running smoothly even more.This machine has come up to the same kind of product level in the word.That is an ideal equipment for producting plates,pipes and special-shaped materials etc.





Machine features



  • High speed mixing motor inverter started
  • High speed parts 3 methods temperature increasing: material self-friction/electric heating/conduction oil heating
  • Material discharge 2 methods: temperature controller automatic release/mixing time control
  • The parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment
  • The barrel covers and three direct links made of cast aluminum
  • The bearing chambers with special designs for the lubricating oil injection
  • Driving motor over current protection design
  • PLC touch screen control system can be choosed for the high automatic control requirement
  • Special designed mixing axis design can avoiding the raw material leaking from the barrel
  • Used in all kinds of plastic mixing dry colouring process.
  • The main shaft sealing device, adopts the special material seal and oil resistant high temperature resistant skeleton oil seal type
  • Hot mix with self friction and electrical heating or steam heating function
  • Pot with double sealing cold mix USES the arch, not changeful form
  • Has a compact structure Beautiful appearance etc.
  • Equipped with a dust filter unit
  • The blades are through Static balance test 8. Electrical manual and PLC automatic control.





Machine technical parameters







Model SRL-Z100/200 SRL-Z200/500 SRL-Z300/600 SRL-Z500/1000 SRL-Z800/1600
Total Volume 100/200 L 200/500 L 300/600 L 500/1000 L 800/1600 L
Effective Volume 65/130 L 150/320 L 225/380 L 375/650 L 600/1050 L
Motor Power 14/22/7.5 KW 30/42/11 KW 40/55/11 KW 47/67/15 KW 60/90/22 KW
Mixed Speed 650/1300/80 RPM 475/950/80 RPM 475/950/80 RPM 430/860/60 RPM 370/740/50 RPM
Mixing Time 8-12 min 8-12 min 8-12 min 8-12 min 8-15 min
Weight 2200 kg 3400 kg 3600 kg 4800 kg 6200 kg
