Fiber Glasses Strength PPR Composition Pipe Extrusion Machine Line
PPR Fiberglass Composite Pipe Extrusion Machine is used for making PPR fiberglass composite pipes which is a kind of three-layer composite
pipe, fiber/ PP-R composite pipe is a improver of normaI PP-R pipe, its inner and outer layer is made of PP-R, which ensures the pipe hygienic when
used for water supplying. The fiberglass as mic-layer greatly improves the strength of pipes.
Consists of PPR inner and outer layers and a special mixture of Glass Fiber (GF) PP middle layer.The Glass Fiber Reinforced (GFR) within the two
layers of PPR activates as an agent to reduce extension capability of the pipes nearly to the level of metal pipes. GFR pipe bears all of the physical
in same pressure rating pipes and can be safely used under 10 bar pressure at 90°C liquid or air transmissions
Feature of PPR Fiberglass Composite Pipe :
- Greetly reduced linear expansion coefficient, 70% less than ordinary PP-R pipe, close to that of the stable composite pipes.
- Higher strength and stability of dimension. It can bear 25% more pressure than PP-R under the same condition.
- Improved resistant to impulse under low temperature
- Excellent resistant to high temperature. lt can be used in 90 for long term
- Socket fusion connection with PP-R fittings, credible and convenient
- Unlike alumunium foiled pipes; there is no need to shave the end of the pipe. Welding process should begin directly. This provides ease of install
- GFR PPR pipe extrusion machine line consists mainly of material color mixer, dryer, vaccum loader, single screw extruder, co-extruder, co-extrusion mould and die head, vacuum calibrating cooling tank, water cooling tank, online printer, traction haul-off machine, non-dust cutter, stacker or coiler, as well as auxiliary machine.

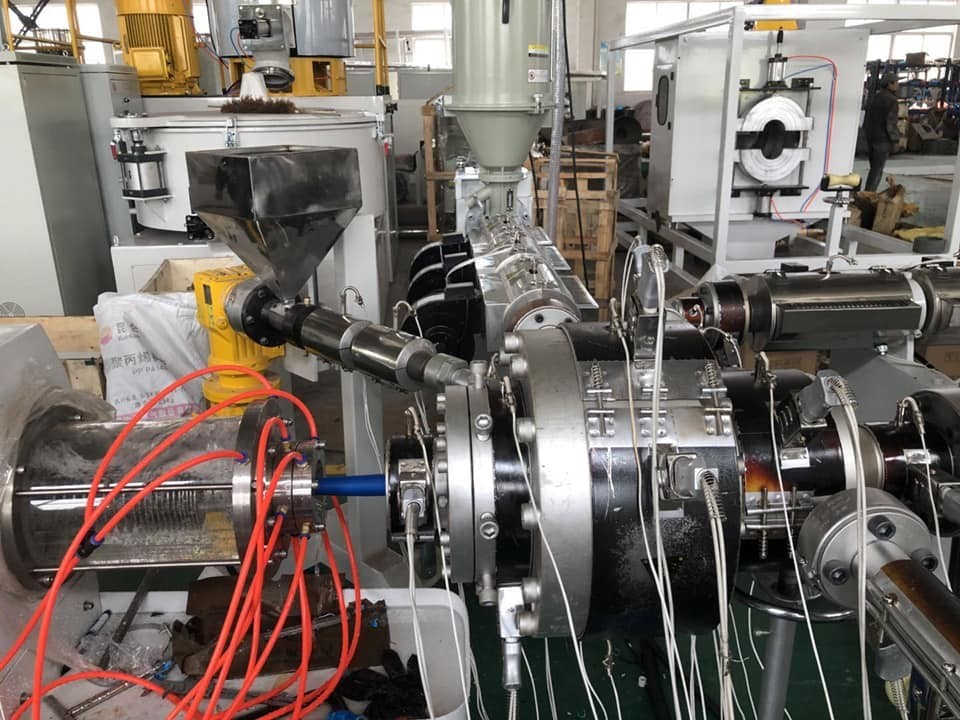

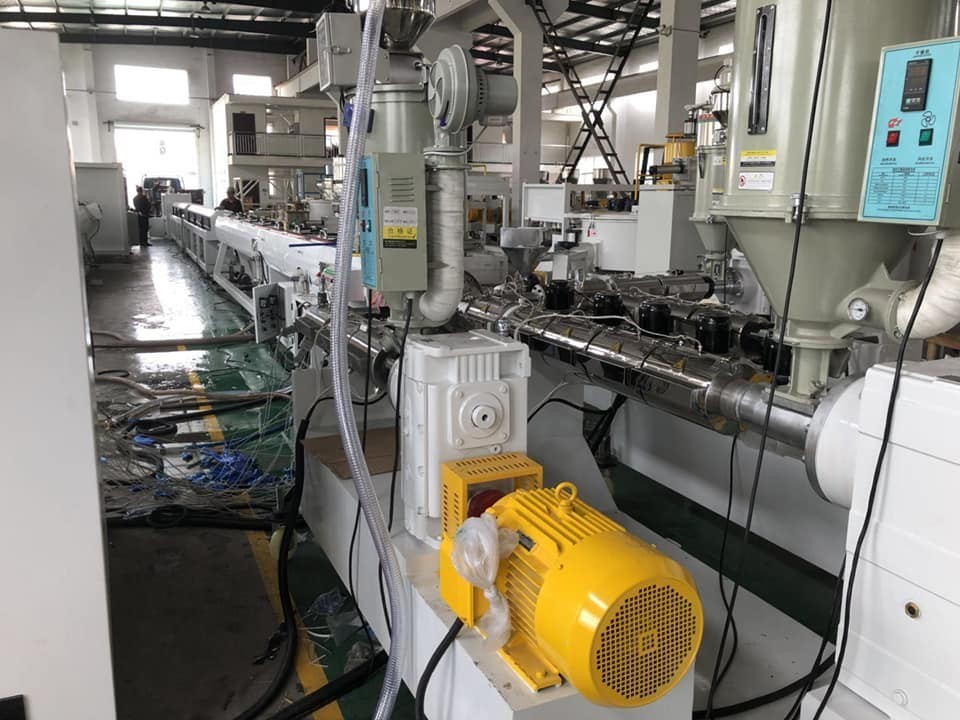

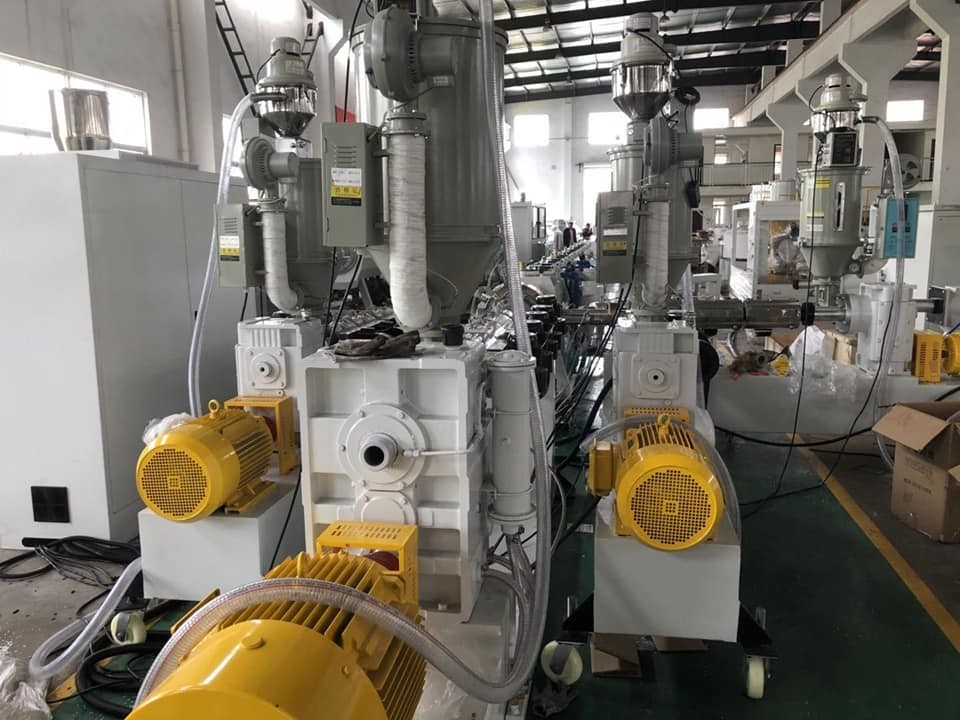

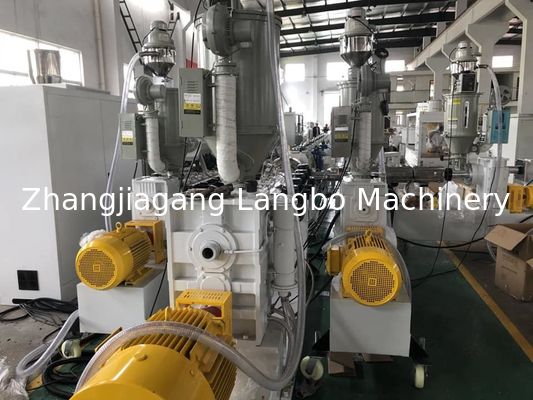

GFR PPR pipe extrusion machine line consists mainly of material color mixer, dryer, vaccum loader, single screw extruder, co-extruder, co-extrusion
mould and die head, vacuum calibrating cooling tank, water cooling tank, online printer, traction haul-off machine, non-dust cutter, stacker or coiler,
as well as auxiliary machine.
Feature of PPR Fiberglass Composite Pipe Extrusion Machine:
- Screw & Barrel, PLC control system and Spiral Type Die Head and other parts of the High Speed PPR pipe plant are designed in manner to bring optimum result and ensure better productivity results.
- Spiral type die head ensures stable wall thickness of PPR pipe even at higher output.
- Low pressure diagonal channel with spiral mixing part ensures extrusion at low temperature and homogeneous plasticization.
- Energy efficient ensuring lower power consumption
- It is designed for an easy operability and performance optimization.
Flowing Chart of PPR Fiberglass Composite Pipe Extrusion Machine:
