PPR Plastic Pipe Making Machine Automatic Cold / Hot Water Pipes Production

PPR Plastic Pipe Making Machine Automatic Cold / Hot Water Pipes Production
PPR Plastic Pipe Making Machine Automatic Cold / Hot Water Pipes Production

Large Image :  PPR Plastic Pipe Making Machine Automatic Cold / Hot Water Pipes Production

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH

PPR Plastic Pipe Making Machine Automatic Cold / Hot Water Pipes Production

Condition: New Automatic: Full Automatic
Plastic Processed: PPR Motor: Siemens Original
Inverter: ABB Main Electrical: Siemens And Schneider
High Light:

ppr pipe production line


cpvc pipe making machine



PPR Plastic Pipe Extrusion Line , Automatic Cold / Hot Water Pipes Production



Product description:

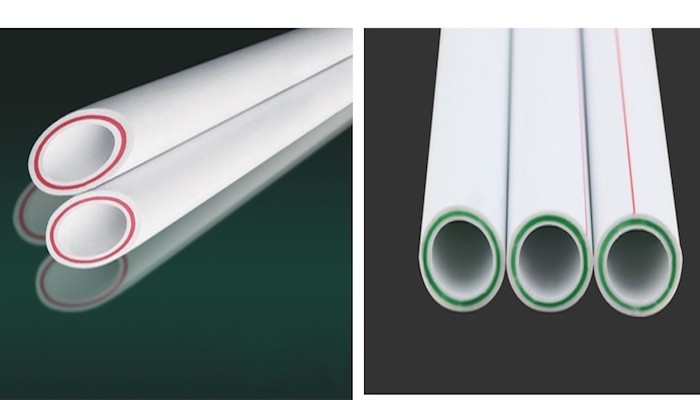

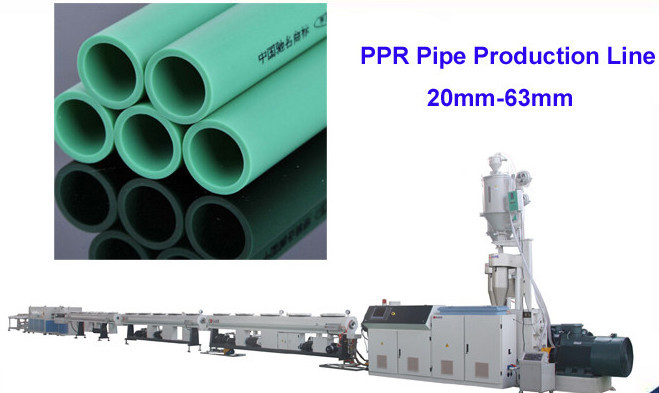

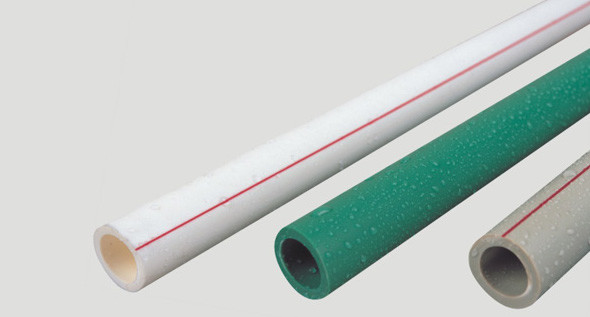

PPR Pipe production Line mainly used in the production of PPR cold/hot water pipes. In the same Production Line of PPR, it can also applied to


produce PP, PE, PB and PPRC pipes. This line is available to use single extruder to make monochrome pipe, or use multiple extruders to make


multi-layer color pipe, or color line marked pipe. Equipped with special screw and high quality reducer, have the characteristics of stable extrusion


and high-speed plasticization. This unit adopts combined spiral machine head; effectively remove the material memory function. In addition, Vacuum


calibration and constant temperature control eliminate the pipe stress. The whole line is of compact structure, high degree of automation and simple


operation, so it is the ideal production equipment.


LB Machinery depends on design production experience of many years; join the domestic and international actual circumstance, developed full-


automatic production line, which from extruder including all automation units and peripherals, whole production line realizes automatic control from


charging to finished product.




Technical parameter:



Type Pipe Spec(mm) Extruder Max. output (kg/h)
PE63 φ20-φ63 SJ-45/30 SJ-25/25 120
PE160 φ63-φ160 SJ-60/30 SJ-25/25 300
PE250 φ75-φ250 SJ-75/30 SJ-25/25 400
PE450 φ160-φ450 SJ-90/30 SJ-25/25 600
PE630 φ315-φ630 SJ-120/30 SJ-25/25 800
PE800 φ450-φ800 SJ-150/30 SJ-25/25 1000
PE1200 φ710-φ1200 SJ-150/33 SJ-25/25 1300

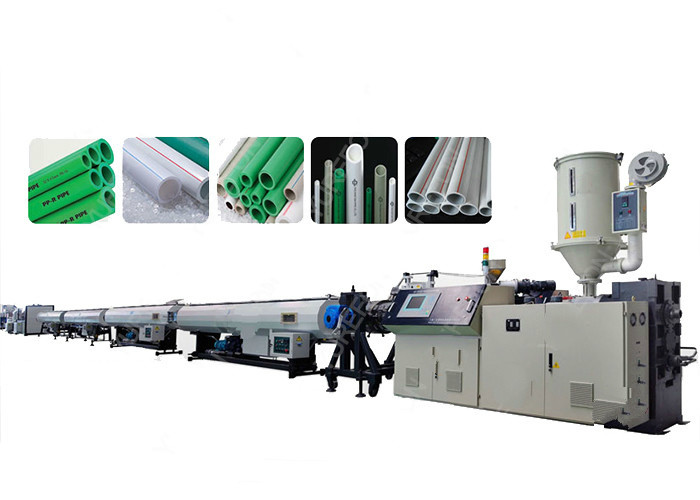

PPR pipe production line, PPR plastic pipe making machine​process:



Material + Color Master-batch → Mixing → Vacuum Loading → Raw Material Drying → Single Screw Extruder → Color Line Extruder → Mold → Vacuum Forming Tank → Spray Cooling Water Tank → Crawler Haul-Off → Planetary Cutter→ Stacker → Completed Product Inspection & Packaging




The Feeder used to feed material into the extruder, usually using a vacuum feeder to feed pellets into the extruder.



Single Screw Extruder


Usually recommends two single screw extruders in this case: the larger extruder used to extrude the actual pipes while the smaller extruder used to extrude the colored mark line. This is the integral part of the entire extrusion line and Yurefon only uses the finest quality extruders to insure reliability and performance.



Mould (Die Head)


The mould is another essential part of the HDPE extrusion line. Mould defines the shape and diameter of the PE pipes. The quality of the extruded pipes are largely depending on quality of the mold (die head).



Vacuum Calibrating and Cooling Tanks


High quality Vacuum calibration and the cooling tanks give produced PE pipes a better looking exterior. An extra set of vacuum calibrators and cooling tanks are required when extruding pipes with larger diameters.



Water Cooling Tanks


The pipes extruded from the mould (die head) is extremely hot. Even after going through vacuum calibration and the cooling tanks, they will still need to be further cool. The water cooling tanks in this case further cool down the pipe through water. Usually, the larger the diameter of the pipes been extruded, the larger the water-cooling tank will need to be.



Haul-off Unit


The Haul-off unit used to move the pipe forward, the particular make and model of the haul-off unit depends on the quantity of the claws.





LB ’s pipe machine cutter completed automated and controlled digitally. The interface designed for ease to use and with great performance in mind.




Winder or Stacker



A winder used in smaller diameter PE pipes production, those small diameter PE pipes are flexible enough to coil around a winder, and thus

essentially allow unlimited length for produced pipe.

A stacker is recommended in larger diameter case, usually above 63 mm, in this case produced PE pipes are stacked together efficiently on stacker, waiting for final packaging and transportation.
