Detailed Product Description
Motor Brand: Siemens Material: PVC
Inverter: ABB Motor: Siemens Brand
Warranty: 1 Year Color: Optional





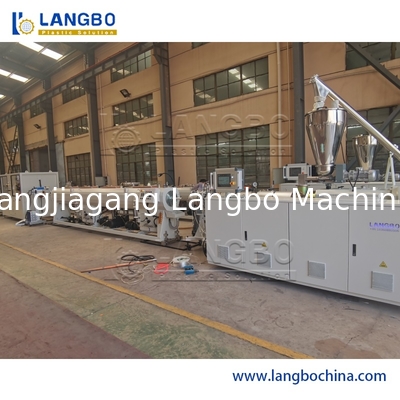

Professional PVC Tube Making Machine , HDPE Pipe Extruder Machine 0-32mm





Description:



PPR high performance glass fiber composite tube is composed of three layers of material, the middle layer glass fiber reinforced material, the inner layer is hot water and the outer layer is pp - r imported raw material.The product [1] has higher temperature resistance and low expansion coefficient than ordinary pp-r tube.Only twenty percent of the pp-r pipe, effectively solve the telescopic pipe bending problem, higher compression performance, long service life, high strength, impact resistant performance is better, prevent pipeline sagging phenomenon, is solar energy, heat circulation system, heating system, water supply ideal choice.





PPR Pipe Standard:



1. Final PPR Pipe usage:

2. Raw Material: PPR raw material

3. Pipe Color:Black

4. Color Line:

5. Final Pipe Size and Pressure Level:

6. PE Pipe




Equipment list:





I. Condition



1,Place Indoor

2,Power No danger

3,Humidity 85% non-condensing

4,Temperature 0-35℃



II. Working Condition



1,Power 3P 380V(—10%,+5%) 50Hz

2,Installation Power: 115kW

3,Cold Water: ≤20℃ ≥0.3Mpa 8~105m3/h

4,Air Supply: 0.3m3/min >0.5MPa

5,Installation Length: 28.5m



III.

  1. Material :PPR
  2. Output:
Extruder Model Material Output Mark
SJ65×33 PPR 80-100kg/h
SJ25×25 PPR 1—2kg/h



Output will be different according to different raw material and operations condition.







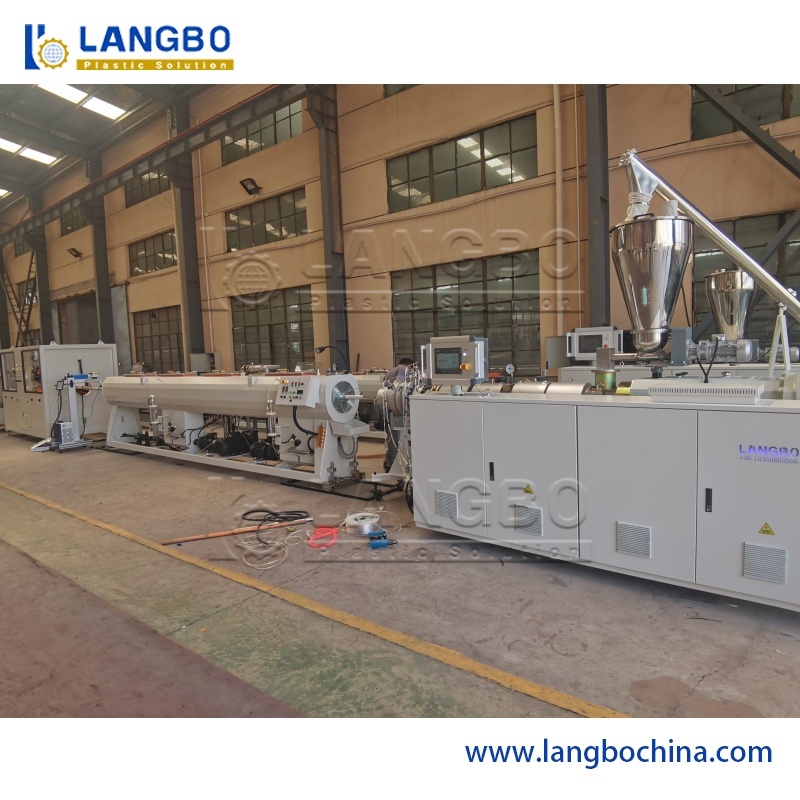

NO Machine name PCS
1. SJ65/33Single screw extruder 1
2. Molds (16-63mm ) 1

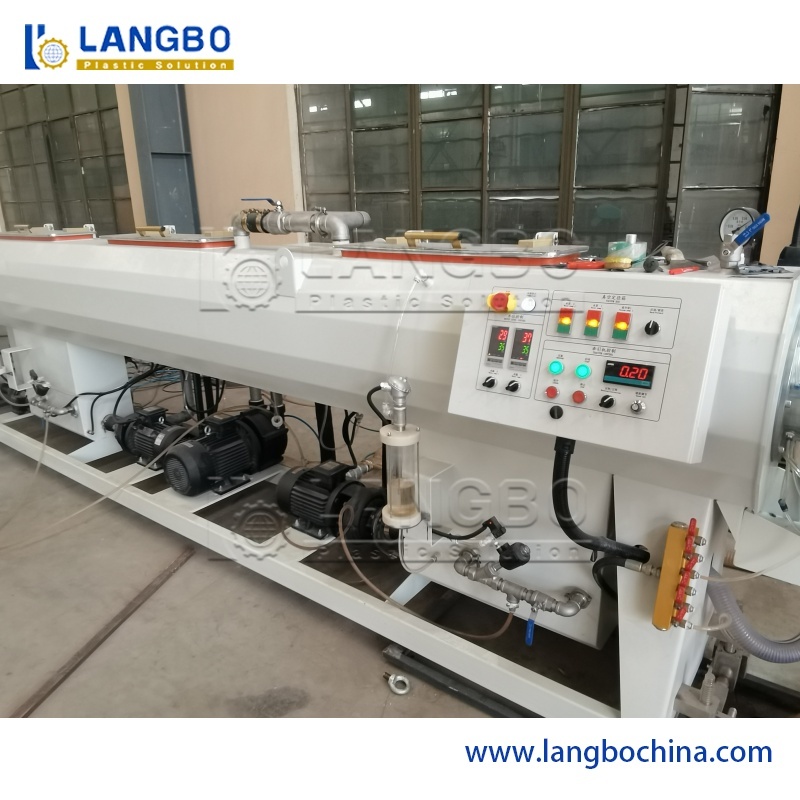

3. Vacuum forming box 1
4. Water spray tank 1
5. Two claw haul-off machine 1
6. Pipe chipless cutting machine 1

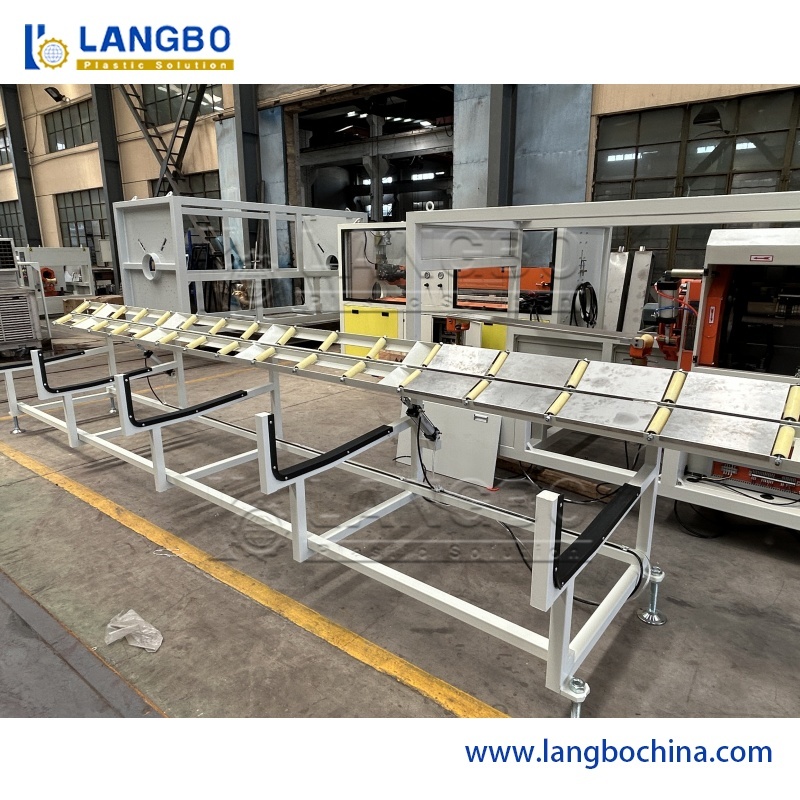

7. Stacker 1
8. SJ25/25 single screw extruder 1
9. Hopper Dryer 1
10. Automatic Loader 1





Machine specifications:

  • Size:16,20,25,32,40,50,63
  • Production Speed:1.0~15m/min(according to different thickness)
  • Extruder Center Height:1000mm
  • Operation Directly:From Right to Left
  • Color:Friend Machinery Standard or customized



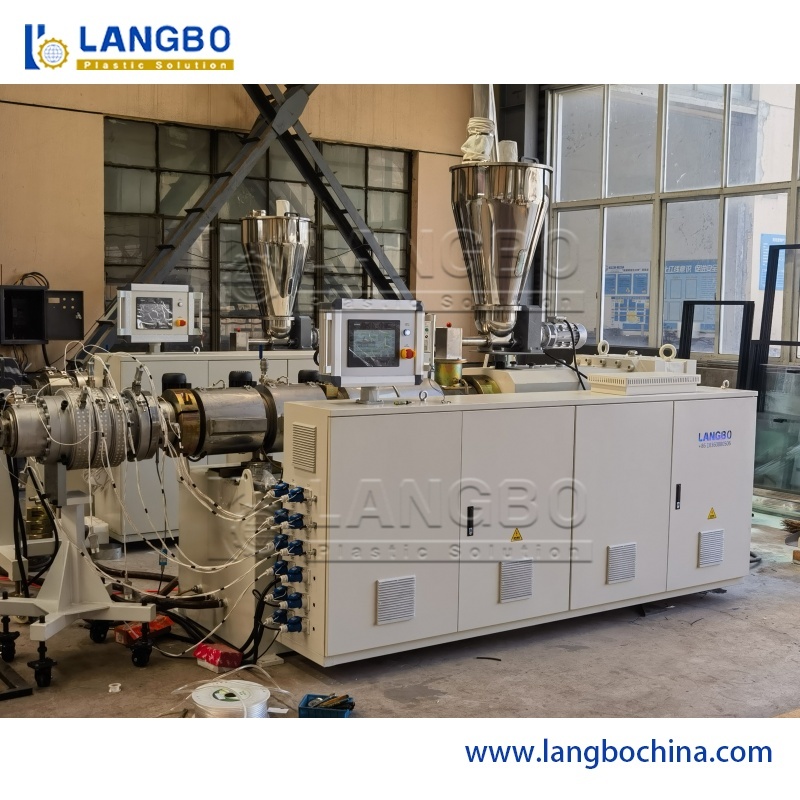

S/N Item name QTY Specifications
1

SJ65/33

Single screw extruder



1 set

Screw :

Diameter of screw: Ф65mm

L/D:33:1

Material of screw: 38CrMoAl

Surface treatment: Nitride processing, thickness: 0.5 ~ 0.7mm, Polishing

Barrel:

Material of Barrel: 38CrMoAlA

Inner processing: Nitride with thickness: 0.5 ~ 0.7mm

Heating zones: 5

Heating mode: Cast aluminum + stainless steel covering

Heating power: 15KW

Cooling power: 0.25KW×5

Method of cooling: air blow

Driving motor:

Motor power: 37KW ( DC motor )

Rotating speed: 7-94rpm

Main electric part :

HOLIP inverter ( Famous Chinese Brand )

OMRON temperature controller

Siemens contactor

Jiangyin brand gearbox

Zhoushan brand screw and barrel



Self protective system:

Over current protective of motor

Over pressure protective of screw

Weight:2500kg

dimension(L×W×H): 3000mm*950mm*1300mm



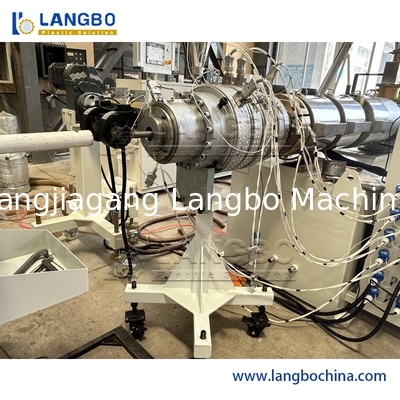

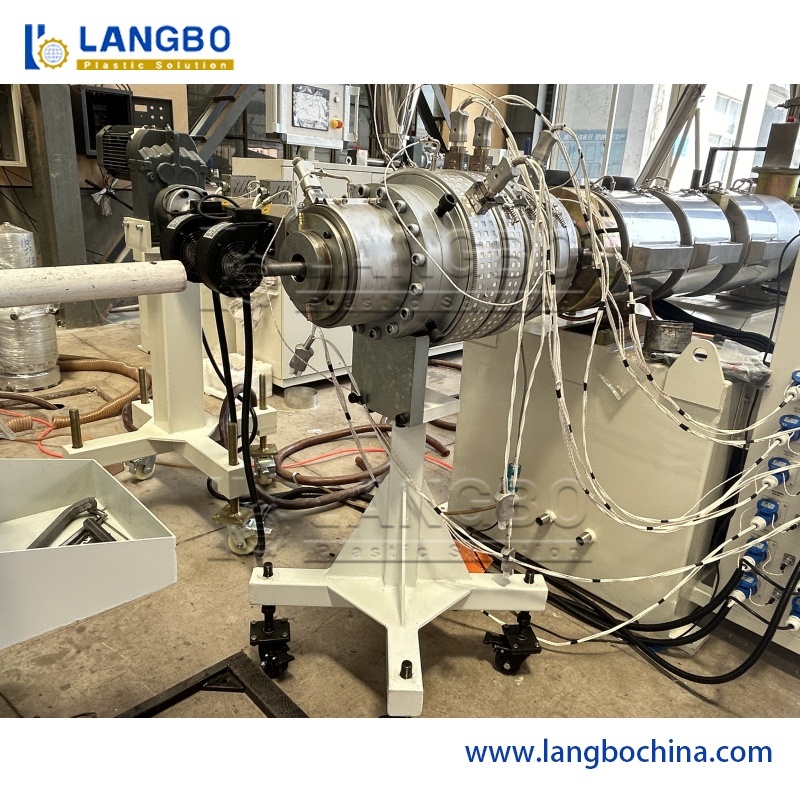

2

Molds (16-63mm)



1set

Material:

Made by 40Cr.

Inner surface polished

Calibration:

16-63mm (16,20,25,32,40,50,63 )

Connection head material : 45# carton steel

Match with mica heater

3

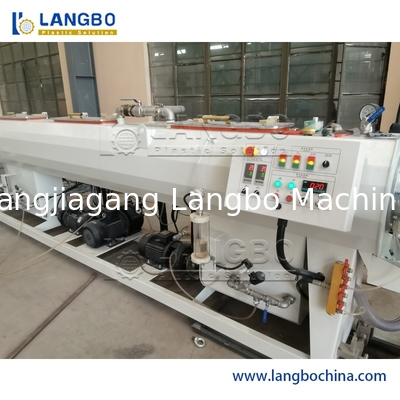

vacuum forming box



1set

Dimensions:

Length: 6000mm

Vacuum forming type : spray cooling

Spray head:

Vacuum pump:

SHANDONG vacuum pump

Power: 3 kw *2pcs

Water pump:

Power: 3kw*2pcs

SHANDONG vacuum pump

Moving motor power: 0.75kw

Tank material:

3mm thickness Stainless steel

Limit switch

Electric cabinet with water-proof protection

Water level control system

Water temperature control system

Outline dimension(L×W×H):6000*1490*600



4

Water spray cooling tank



1set

Dimensions:

Length:6000mm

Water pump:

Power: 4kw

Cooling type : spray cooling



Tank material:

3mm thickness Stainless steel

Limit switch

Electric cabinet with water-proof protection

Water level control system

Water temperature control system

Outline dimension(L×W×H):6000*1490*600

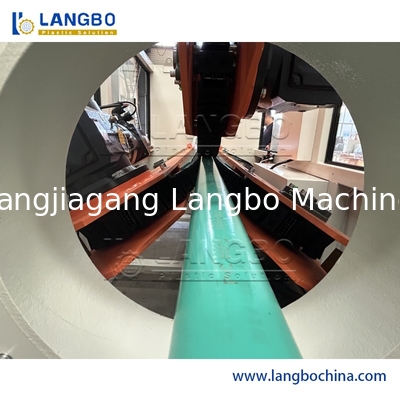

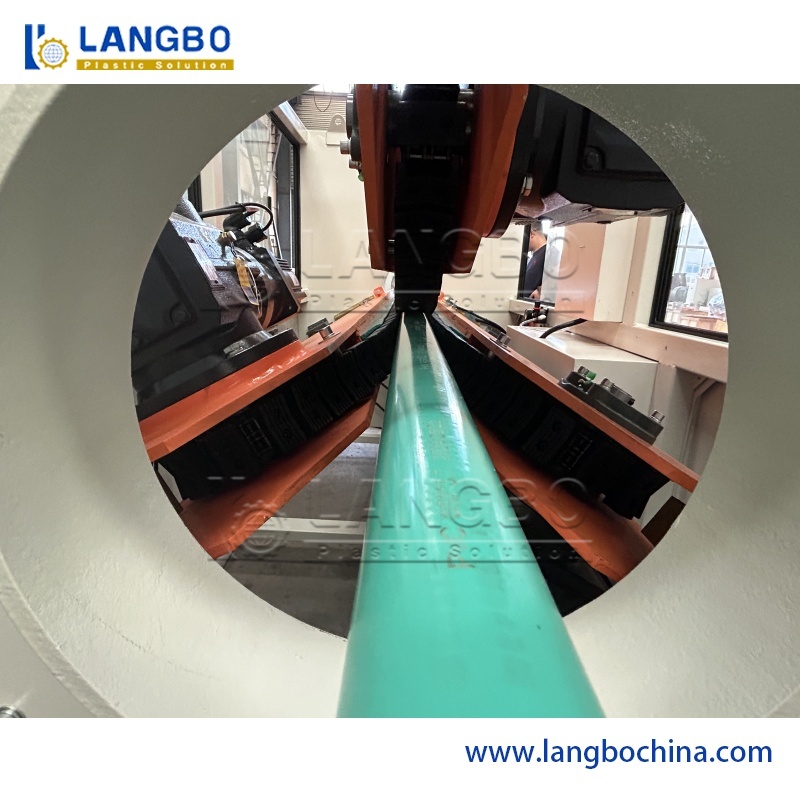

5

Two claw haul-off machine



1 set

Tracking type : Caterpillar

Haul off type : Two claw

Clamping length:(mm)1200

Up and down: ±90mm

Hauling speed:(m/min)0.1-2 or required

Center height:(mm)1000

Motor brand: Sima motor

Motor power:(kw)2.2kw

Outline dimension(L×W×H): 2790*2150*1400



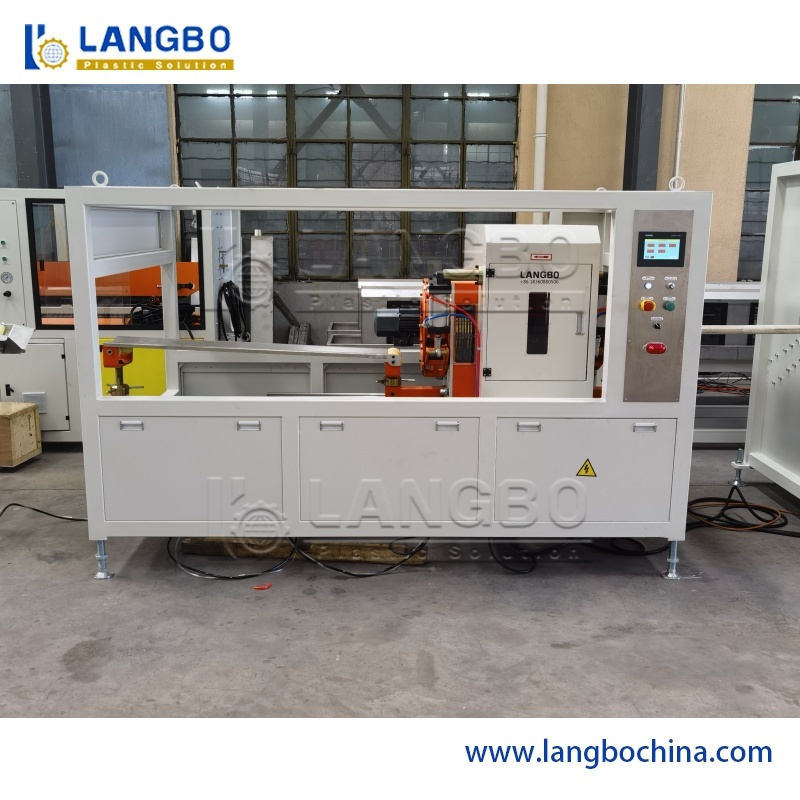

6 Pipe chipless cutting machine 1 set

Biggest cutting diameter(mm):20-63

Cutting blade material : high quality tooling steel

Cutting blade size : 350mm diameter

Cutting motor: pneumatic

Motor power(Kw):1.5kw

Pipe clamping type : Aluminum die clamped by air cylinder

Electrical system: Siemens contactors

Taiwan Tend terminal

PLC control

Up and down: ±90mm

Outline dimension(L×W×H): 2910*2170*1240



7

Stacker



1 set

Pneumatic discharging

Length:6,000mm

Up and down: ±90mm

Outline dimension(L×W×H): 6000*1300*1570

Could be customized by customer’s final pipe length



8

SJ25 single screw extruder



1 set

Screw :

Diameter of screw: Ф25mm

L/D:25:1

Material of screw: 38CrMoAl

Surface treatment: Nitride processing, thickness: 0.5 ~ 0.7mm, Polishing

Driving motor:

Motor power: 1.5KW

Main electric part :

HOLIP inverter ( Famous Chinese Brand )

OMRON temperature controller

Siemens contactor



9 Hopper Dryer 1 set

Type : 150L

Drying power: 6.35kw

Fan power: 750w



10 Automatic Loader 1 set

Type : Vacuum material loader

Motor: 0.75kw

Capacity: 200kg
