Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB16-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD / EURO
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH

PE TUBE, PE PIPE, PLASTIC PIPE, PE EXTRUDER, PE WATER PIPE,PE GAS PIPE

Description
Extruder Power (kw): 37--400KW SCREW MATERIAL: 38CrMoALA
COLOUR: BLACK, ORANGE WATER PIPE DIAMETER: 16-1200MM
GAS PIPE DIAMETER: 16-160MM SCREW CONCEPT: SINGLE SCREW / CO-EXTRUDER
High Light:

hdpe pipe production line

,

plastic pipe extrusion machine

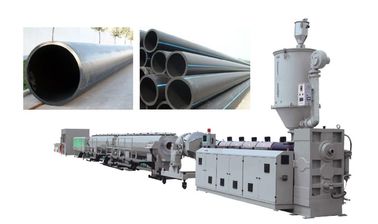

PE PIPE PRODUCTION LINE



COMPONENTS AND FEATURES:

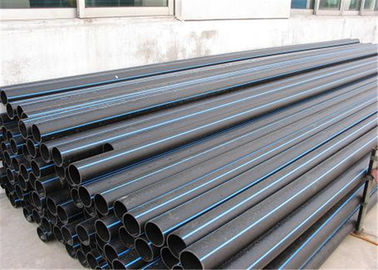

PE pipe extrusion lines are applied for manufacturing PE pipes with different pressure classes needed in field of petrol gas, agriculture, architecture, telecom communication, etc..

The complete extrusion consists of following items:

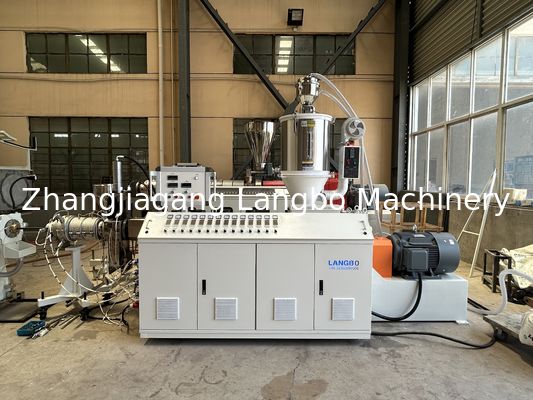

  • Single screw extruder

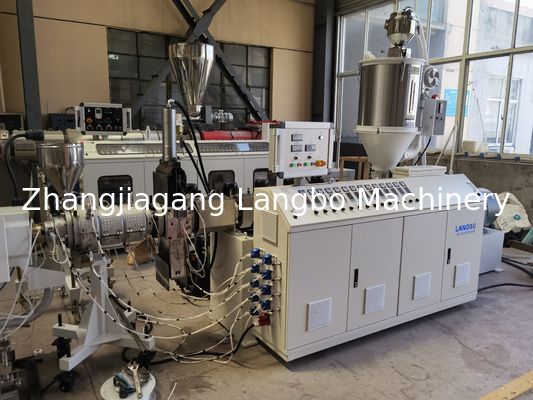

  • Co- extruder: manufacturing marking line on pipe or multilayer of pipes

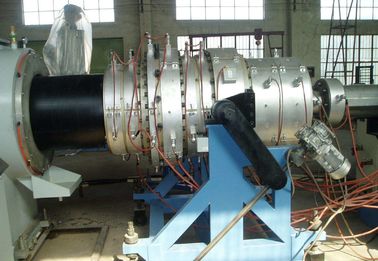

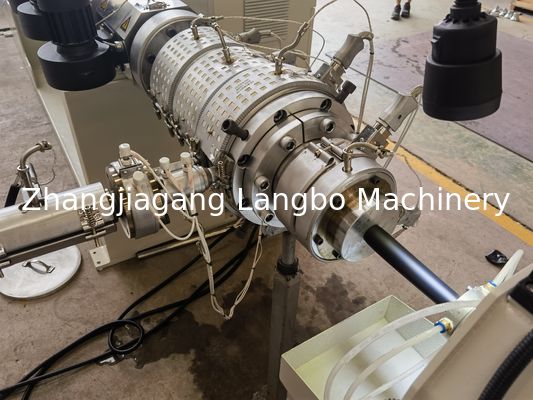

  • Die head
  • Vacuum tank: due to diameter, it can be designing of single, double vacuum chamber
  • Cooling tank: due to diameter, the numbers of cooling tank can be one, two or three

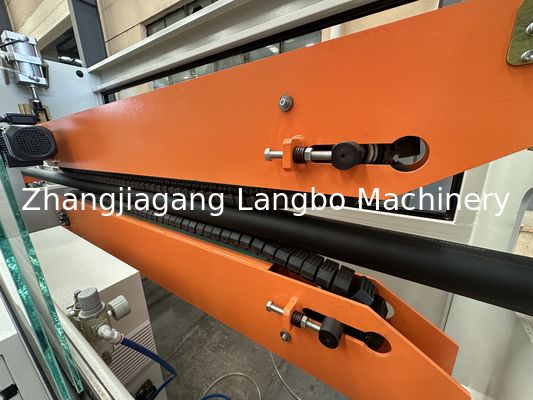

  • Haul-offs: due to diameter, it can be designing of double, three, four, six, eight, ten, twelve caterpillars
  • Cutter: due to diameter, it can be designing of no-scraps cutter or planetary cutter

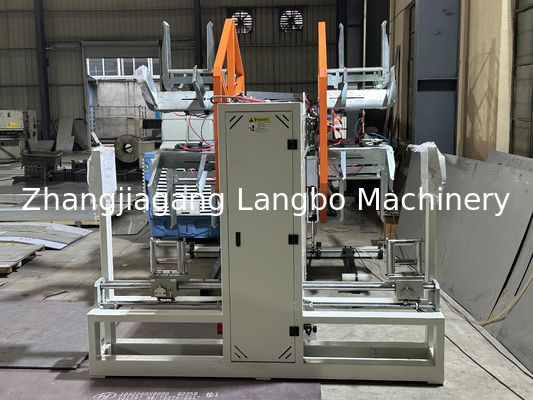

  • Coiler/Tipping chute

SPECIFICATIONS:



MODEL Pipe diameter(mm) Extruder Extruder power(kw) Capacity(kg/hr)
LB-63 20-63 SJ65/33 55AC 150
LB-110 20-110 SJ65/33 55AC 150
LB-160 75-160 SJ75/33 90AC 280
LB-250 90-250 SJ75/33 110DC 350
LB-315 110-315 SJ90/33 160DC 450
LB-450 160-450 SJ90/33 160DC 450
LB-630 315-630 SJ120/33 280DC 850
LB-800 500-800 SJ150/33 315DC 1100
LB-1200 710-1200 SJ150/34 400DC 1350
