Product Details:
|
| RAW MATERIAL: | PVC POWDER | HEATING WAY: | SELF-FRICATION |
|---|---|---|---|
| POWER: | 30/42KW | OPERATION: | AUOMATIC |
| TEMPERATURE: | AOTOMATIC | WARRANTY: | 1 YEAR |
| CERTIFICATION: | CE ISO | ||
| High Light: | plastic mixer machine,heating cooling mixer |
||

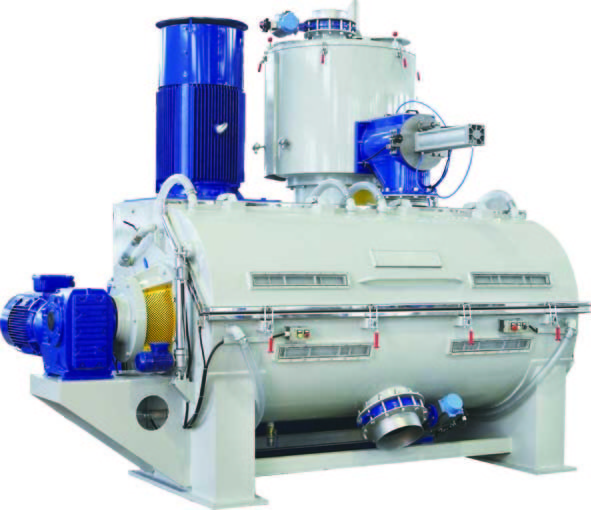

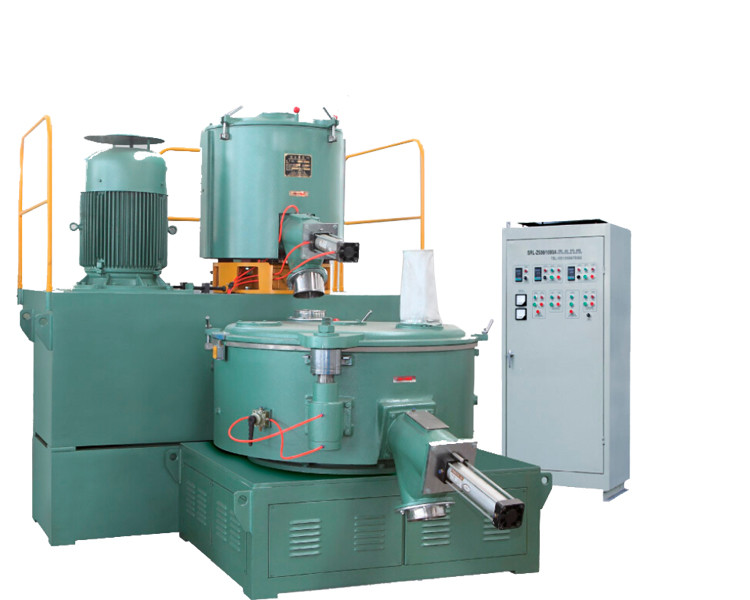

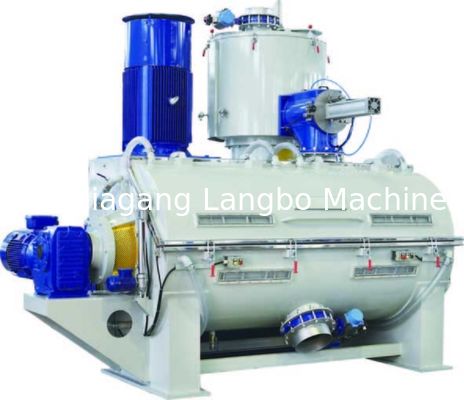

CE CERTIFICATE, PVC MIXER, PVC BLENDING MACHINE, TURBO MIXER, VERTICAL/HORIZONTAL MIXER
COMPONENTS AND FEATURES:
High-speed heating mixers are applied for mixing, coloring and drying in the industry of plastics, rubber and chemical, etc.. Based on requirement of technology, it can be kind of heating mixer independently or mixers combinations. The structure designing of cooler mixer can be type of vertical or horizontal according to its volume of mixing container.
SPECIFICATION FOR HEATING MIXER:
| Model | Mixing container(liter) | Motor power(kw) | Heating medium | Discharging |
| GH-50 | 50 | 7/11 AC | Electricity/Self-frication | Manual/Pneumatic |
| GH-100 | 100 | 14/22 AC | Electricity/Self-frication | Manual/Pneumatic |
| GH-200 | 200 | 30/42 AC | Self-frication | Pneumatic |
| GH-300 | 300 | 40/55 AC | Self-frication | Pneumatic |
| GH-500 | 500 | 55/75 AC | Self-frication | Pneumatic |
| GH-800 | 800 | 83/110 AC | Self-frication | Pneumatic |
SPECIFICATION FOR MIXERS COMBINATION:
| Model |
Mixing container (heating/cooler) (liter) |
Motor power (heating/cooler) (kw) |
Cooler type | Discharging |
| GHL-100/300 | 100/300 | 14/22/7.5 AC | Vertical | Pneumatic |
| GHL-200/500 | 200/500 | 30/42/11 AC | Vertical | Pneumatic |
| GHL-300/600 | 300/600 | 40/55/11 AC | Vertical | Pneumatic |
| GHL-500/1000 | 500/1000 | 55/75/15 AC | Vertical | Pneumatic |
| GHL-500/1600 | 500/1600 | 55/75/15 AC | Horizontal | Pneumatic |
| GHL-800/2000 | 800/2000 | 83/110/22 AC | Horizontal | Pneumatic |
| GHL-800/2500 | 800/2500 | 83/110/22 AC | Horizontal | Pneumatic |
