150KG/High Capacity PVC Pipe Extrusion Line with Dust / Chip Free Cutting System

Certification
China Zhangjiagang Langbo Machinery Co. Ltd. certification
China Zhangjiagang Langbo Machinery Co. Ltd. certification
I'm Online Chat Now

150KG/High Capacity PVC Pipe Extrusion Line with Dust / Chip Free Cutting System

150KG/High Capacity PVC Pipe Extrusion Line with Dust / Chip Free Cutting System
150KG/High Capacity PVC Pipe Extrusion Line with Dust / Chip Free Cutting System 150KG/High Capacity PVC Pipe Extrusion Line with Dust / Chip Free Cutting System 150KG/High Capacity PVC Pipe Extrusion Line with Dust / Chip Free Cutting System 150KG/High Capacity PVC Pipe Extrusion Line with Dust / Chip Free Cutting System

Large Image :  150KG/High Capacity PVC Pipe Extrusion Line with Dust / Chip Free Cutting System

Product Details:
Place of Origin: ZHANGJIAGANG, JIANGSU, CHINA
Brand Name: LB
Certification: CE ISO
Model Number: LB-63W
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

150KG/High Capacity PVC Pipe Extrusion Line with Dust / Chip Free Cutting System

Description
PIPE DIAMETER: 16-63MM APPLICATION: WATER PIPE

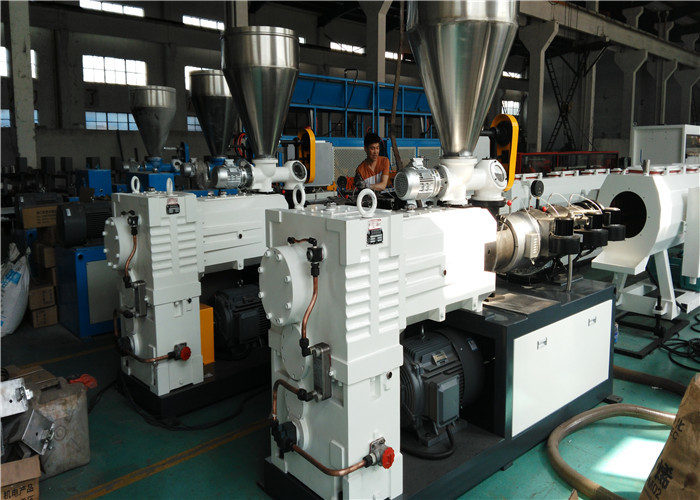

EXTRUDER MODEL: SJSZ51/105 MOTOR POWER: 22KW
CAPACITY: 150KG/H PIPE COLOUR: Customer Oriented
Automatic Grade: Full Automatic
High Light:

plastic pipe extrusion line

,

pvc pipe production line

WATER PVC PIPE EXTRUSION LINE DOUBLE STRANDS WITH DIAMETER 16-63MM





ABOUT COMPANY:


LANGBO MACHINERY is a company that makes the manufacture of plastic pipe machinery. Company principles are manufacturing without compromising high quality and standards and being customers oriented.
With young. dynamic powerful engineers, we produce standard, customer design, and fully automated plastic machines. Our R & D department is improving the machine quality, making a low cost and increasing the durability of the machine.

The manufacture of high capacity pipes are increasingly feeling the pressure of rising energy and raw material costs. As a result of this, LANGBO MACHINERY has continuously being optimizing its pipe extrusion solutions during recent years. The result: a first rate energy balance with high output and pipe extrusion with maximum effectiveness. With extrusion line from LANGBO MACHINERY-everything from one source –you can be on the safe side. We accompany you from the initial idea to the finished product-reliable, competent and fair.

PVC double strands electrical conduit pipe extrusion line is applied for manufacturing PVC electrical conduit pipe with the pipe diameter of 16-32mm, 16-50mm and different pressure classes that are
applied in fields of building, architecture, telecom communication, etc..

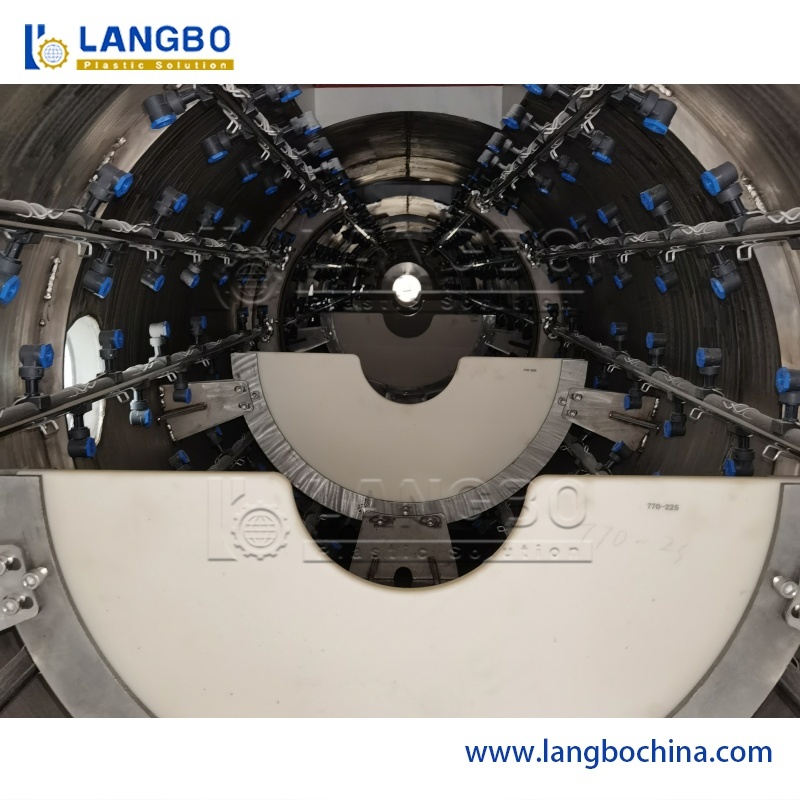

Covering a large range of diameters, we supply vacuum calibration sleeves which are used inside the vacuum tanks for the calibration process.



FEATURE & Core Components:

  • High wear resistant

  • Customer Definite outer diameter calibration

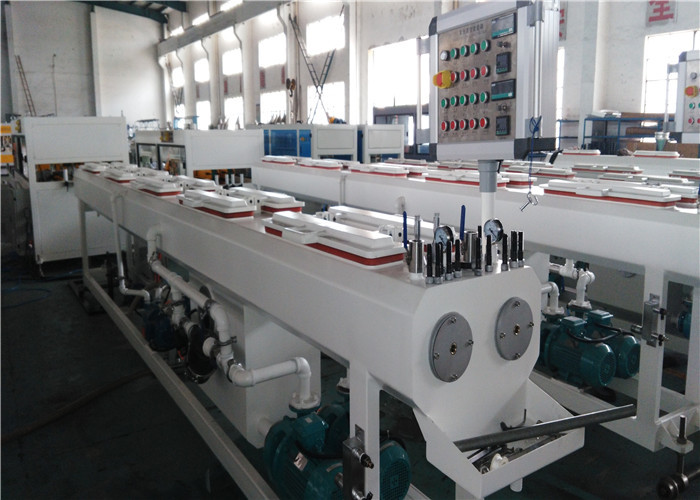

    We provide vacuum tanks for the calibration and cooling process of plastic pipes covering diameters from 16 to 800 mm. All of our tanks are built in stainless steel which guarantees total absence of corrosion. Motorized longitudinal movement lets precise and fast positioning during the process.

  • Stainless steel tank

  • Motor-driven longitudinal movement

  • Wide Product Range
    Diameters from 16 to 800 mm
    Vacuum tank length from 6 to 9 mt

  •  Cooling tanks are manufactured from SUS304 stainless steel.

  • Seals at inlet and outlet of tanks have been developed as brush seal instead of rubber seals This development let to change diameter more quickly. The pipe support in tanks is roller type supports.

  • A wide range of haul-off units allows us to supply to the customers the ideal solution for a diameter range of 16 to 800 mm. We supply both caterpillar and belt-type haul-off units on our pipe down streams. Caterpillar is driven by AC or servo driveSynchronization with extruder speedSpeed adjustment by inverter​

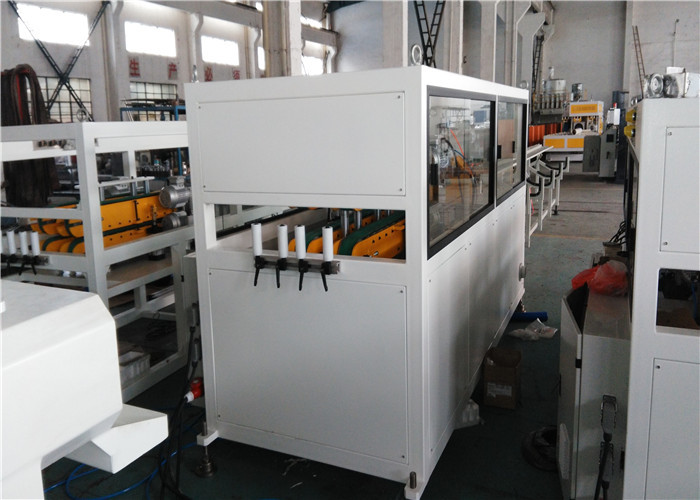

  • Several types of cutting units for pipe applications. For medium and large diameter pipes, we supply our planetary cutting units. For small diameter pipes, we offer our guillotine and saw cutter.

    Planetary Cutter:
    Cutting and chamfering rigid pipes
    Synchronization with extruder speed
    Low maintenance cost
    Adjustable cutting speed
    Product Range: Pipe range from 50 to 800 mm


Saw Cutter:
Cutting pipes up to 63 mm
Low maintenance cost
Adjustable cutting speed
Cutting pipes up to 63 mm
Pipe range from 16 to 63 mm
Guillotine Cutter: GK 32 Features
Special design for pipes

Dust and chip-free cutting system
Low maintenance cost
Pipe range from 16 to 32 mm

Special designing of this machine with the necessary adaption of tools PP and PVC wasted water and sewage pipes has been made possible. The fully automatic machine that is running in line.


  • belling machine

With the special design of this machine is very high capacity production is possible. It can also produce 150cm pipe. also depending on customer requests we also manufacture special manual belling machine

The belling machine is capable of belling PE,PP,PVC pipes and sizes can be specified in international standards.

By working synchronous with pipeline, without any human intervention machine can take pipes from the line then make belling.
Pipe heating degree and blowing pressure can be adjusted.

  • With the wide selection feature on touch screen, wastage of pipe can be prevented.

By using internal PLC system, machine can work independently from pipe line.
LB-32 is the model that has the highest capacity. For this model, the diameter range of 16-32mm, it is designed to produce 4 sockets per cycle.
LB-63 is the model that has the highest capacity as well. For this model, the diameter range of 16-63mm, it is designed to produce 2 sockets per cycle.

  • Double Strands Tipping Table:
    It operates on pneumatic cylinders.
     150KG/High Capacity PVC Pipe Extrusion Line with Dust / Chip Free Cutting System 0
    SPECIFICATIONS:

MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER (KW)
LB-32F 16-32 (FOUR PIPE) SJSZ65/132 37 AC
LB-32E 16-32 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-32W 16-32 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-40E 16-40 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-40W 16-40 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-50E 16-50 (DOUBLE PIPE) SJSZ51/105 22 AC
LB-50W 16-50 (DOUBLE PIPE) SJSZ65/132 37 AC
LB-63W 16-63 (DOUBLE PIPE) SJSZ65/132 37 AC
