Heater Cooler PVC Mixer Machine Horizontal Type 500L / 1000L Vessel Volume
Product Details
| VESSEL VOLUME: | 500L/1000L | COOLER MIXER TYPE: | HORIZONTAL |
|---|---|---|---|
| NOTOR POWER: | 55/75KW /30KW | DISCHARGING: | PNEUMATIC |
| TEMPERATURE: | AOTOMATIC | MATERIAL MIXED: | PVC & ADDITIVES |
| Highlight |
pvc compounding mixer,plastic mixer machine |
||
Product Description
Heater Cooler PVC Mixer Machine Horizontal Type 500L / 1000L Vessel Volume
COMPONENTS AND FEATURES:
Horizontal type heater –cooler mixers combination for extrusion line of PVC water pipe are an essential and integral part of high performance processing units.
Ideal appliance for fast preparation of mixers in general and PVC compounds in particular, mixer models available in configuration depending of the capacity and materials designing for each specific production requirement.
- Universal usable
- Available with different drive options
- High throughput rates with optimal mixing quality
- Low operation costs
- Compact design
USAGE AREAS OF MIXER:
- PVC Window & Door profiles

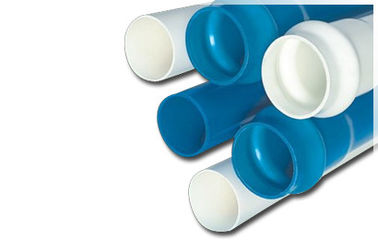

- PVC water pipes
- PVC cables
- PVC cable channels
- PVC Curtain Rails
- PVC Hoses
- PVC Water Isolation Membranes
- PVC Panels
- PVC Shoe Soles
- PVC Floor Covers
- PVC Shrink Film
- PVC Tent
Optional Accessories:
- The production will be with soft starter if frequency inverter is not ordered with the machine.
- The production will be with Microcontroller if PLC is not ordered with the machine.
Mixture quantity:
- Including all of additives and raw material density, which will be mixed, are calculated as 0.5kg/lt and mixture temperature 120 degrees centigrade. Depend of the auxiliary raw material, the loading system can be different.
- Changeable quantity is the event of the plant temperature conditions.
Specification for Horizontal Type Heater –Cooler Combination PVC Mixer:
| Model |
Mixing Container Volume (lt) (Heater /Cooler) |
Motor Power (kw) (Heater/Cooler) |
Discharging |
| LB-300/600 | 300/600 | 40/55/11AC | Pneumatic |
| LB-500/1000 | 500/1000 | 55/75/15 AC | Pneumatic |
| LB-500/1600 | 500/1600 | 55/75/15 AC | Pneumatic |
| LB-800/2000 | 800/2000 | 83/110/22 AC | Pneumatic |
| LB-800/2500 | 800/2500 | 83/110/22 AC | Pneumatic |
| LB-1000/3000 | 1000/3000 | 83/110/30 AC | Pneumatic |
ADVANTAGES:
• Maximum capacity and efficiency
• Savings from time
• Save handwork
• Additives used in each product provides the same rate and ensures the continuity of product quality.
• Reduce waste
