Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO
Model Number: LB-180

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
EXTRUDER MODEL: CONICAL TWIN SCREW EXTRUDER PROFILE'S SIZE: 180MM
MOTOR POWER: 22KW RAW MATERIAL: PVC
CUTTER: SAW CUTTER CAPACITY: 150KG/H

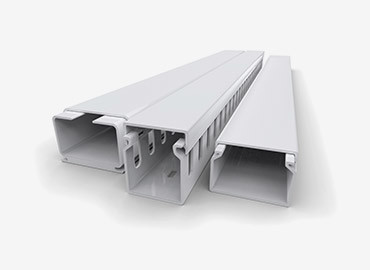

PVC CABLE CASING PIPING EXTRUSION MACHINE WITH PLC TOUCH SCREEN CONTROL



The Conical Twin Screw Extruder is designed for the PVC profile. We target to provide the optimal solutions for the customer’s special needs with the advantage of flexibility in material choices, high performance and long durability.

Features

High flexibility in raw material combinations

Gentle and homogeneous plastification

Barrel with air cooling system

AC motors for low energy consumption

Control panel with color touch screen

Product Range

Screw diameters 51,65,80mm

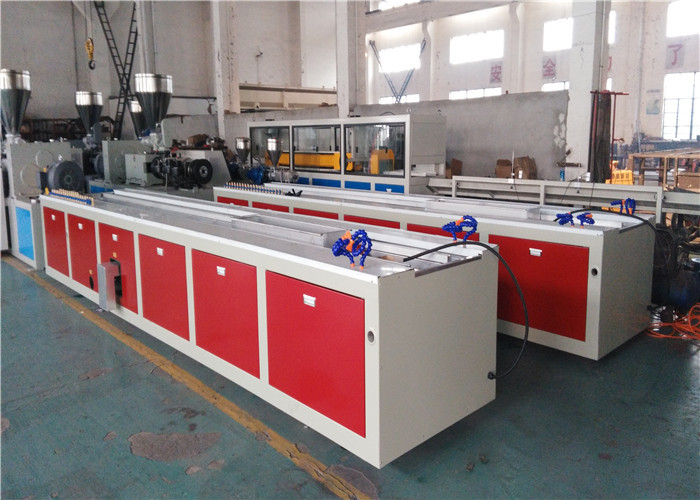

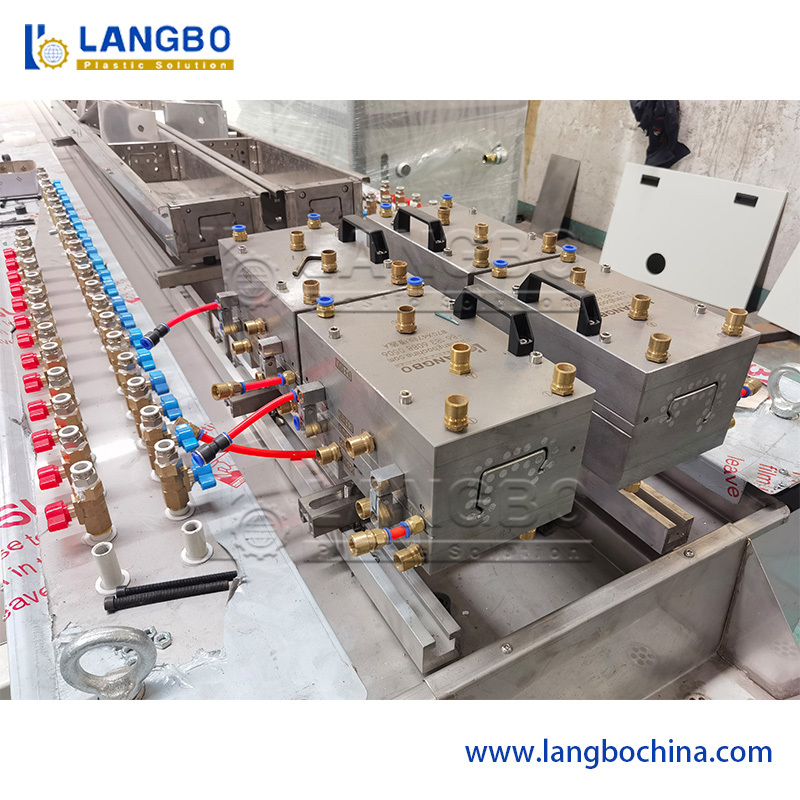

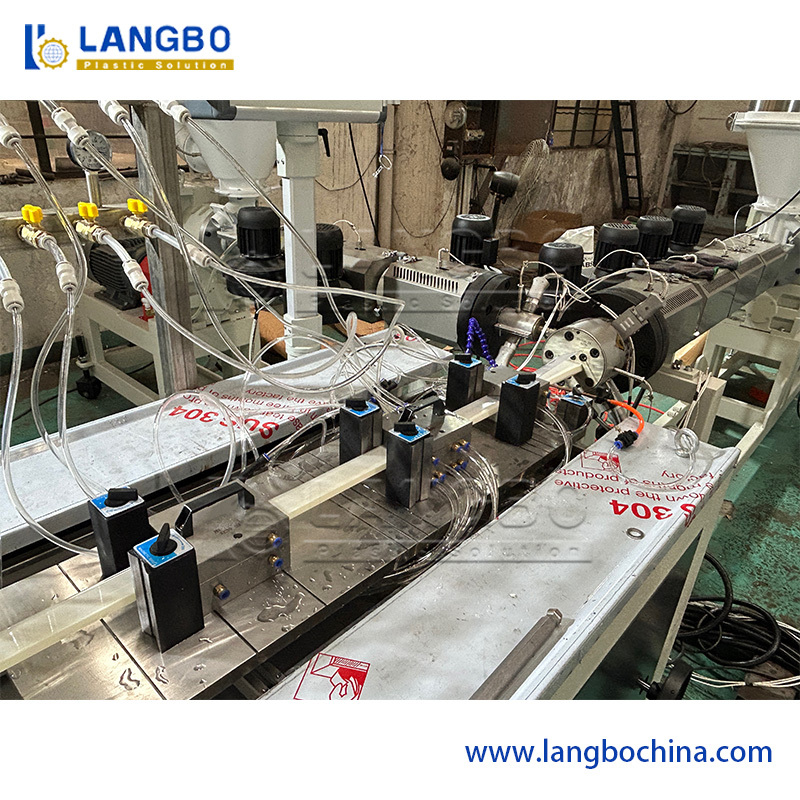

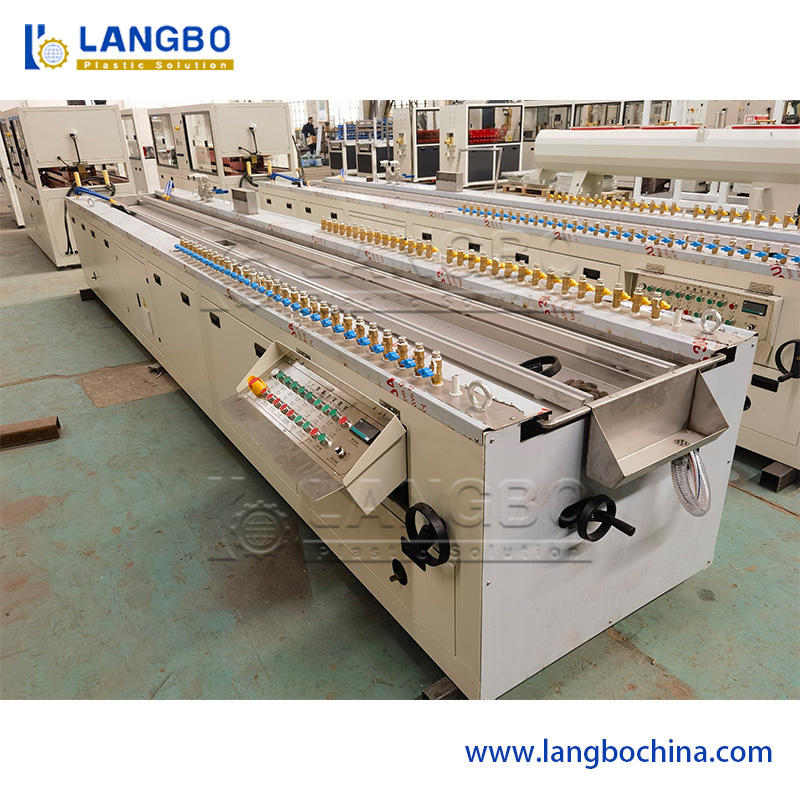

A wide range of calibration tables, providing an optimal and tailor-made solution for every need and application.

Features

Motor-driven height and side movement

Motor-driven longitudinal movement

Manuel tilting movement

All parts that are in contact with water is made of SUS304

Low maintenance cost

Product Range

Table length from 4,5 to 14 mt

Vacuum pumps can be added upon request

FeaturesFocusing on the energy saving system, Lima Extrusion provides LESS (Lima Energy Saving System) to benefit vacuum energy savings up to 80%.

Vacuum energy savings up to 80%

Vacuum pumps are driven by individual frequency

Inverters in order to use them according to the real need

Low noise level

Closed circuit to save as much water as possible during the extrusion process

Product Range

Table length from 4,5 to 14 mt

Vacuum pumps can be added upon request

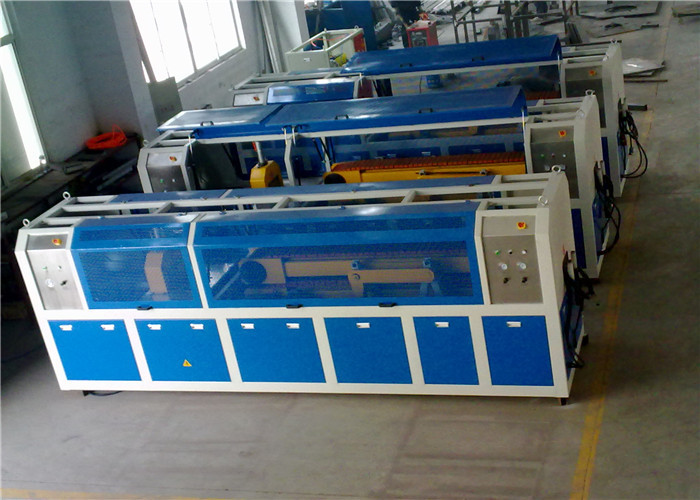

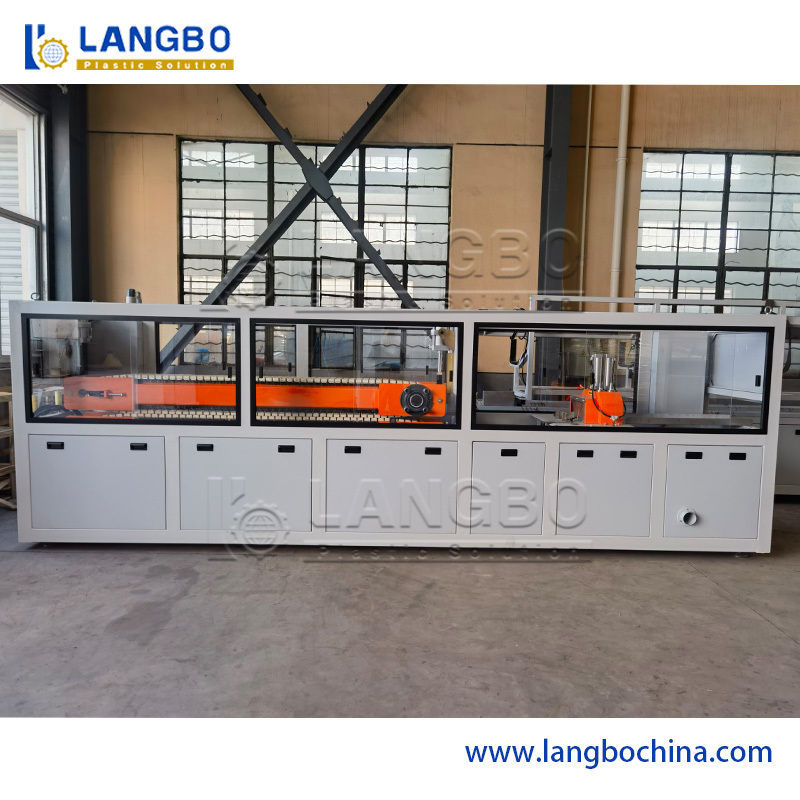

The caterpillar haul-off units, we provide the optimal solutions for the customer’s needs with the advantage of flexibility in pad dimensions and track lengths. Our haul-offs are equipped with two independent tracks with gearboxes with continuous speed adjustment by inverter.

Features

Flexibility in pad dimensions

Two independent tracks with gearboxes

Speed adjustment by inverter

Product Range

Pad width range from 220 to 500 mm

Tracks length from 1400 to 2000 mm

Extrusion offers two types of cutting units for profile applications: Saw (TK-series) and guillotine (GK PRO) cutting systems. Depending on the customer’s preference, we can install these units in our integrated haul-off and cutting combination or supply separately. As option, for window sill and similar wide panel profiles, we also supply cross-cut system (CC PRO) for cutting profiles into smaller measurements in width. In addition to these units, our blade cutting unit (BK-series) is ideal for cutting profiles with a max. height of 8 mm, without any dust and chips.



Saw Cutter

Features

Different saw dimensions for special profiles
Low maintenance cost

Includes dust absorber unit

Adjustable cutting speed

Cutting width from up to 800 mmProduct Range

Cutting height from 10 to 100 mm



Titling Table Features

Table material is stainless steel

Tilting system is pneumatic

Product Range

Length is 6 mt on standard

Length can be modified upon request

Depending on profile geometry, we can also offer roller-type tables
