Multi Layers PE Pipe Extrusion Line With Haul Offs Cutter Units 90KW Power

China Multi Layers PE Pipe Extrusion Line With Haul Offs Cutter Units 90KW Power supplier
Multi Layers PE Pipe Extrusion Line With Haul Offs Cutter Units 90KW Power supplier Multi Layers PE Pipe Extrusion Line With Haul Offs Cutter Units 90KW Power supplier Multi Layers PE Pipe Extrusion Line With Haul Offs Cutter Units 90KW Power supplier

Large Image :  Multi Layers PE Pipe Extrusion Line With Haul Offs Cutter Units 90KW Power

Product Details:

Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE / ISO
Model Number: LB-160

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Extruder Power (kw): 90KW PIPE DIAMETER: 50-160MM

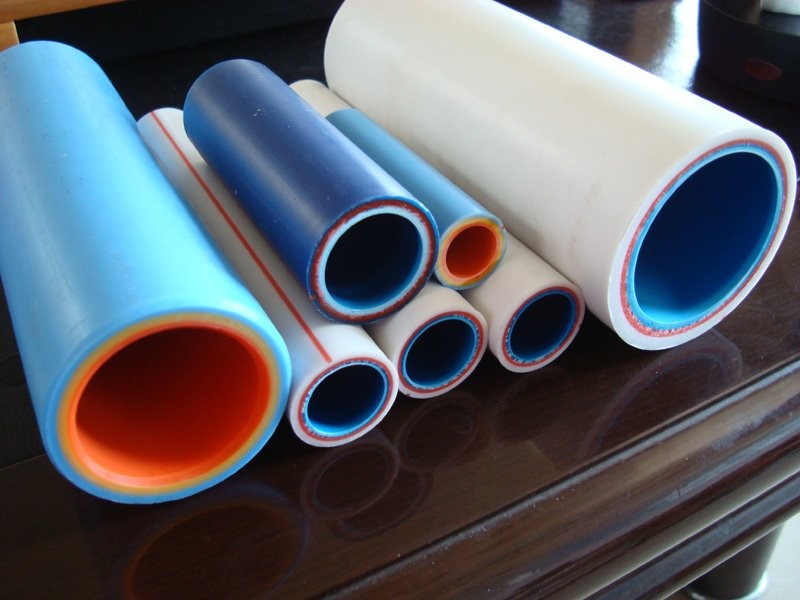

COLOUR: BLACK, ORANGE APPLICATION: MULTI LAYERS PIPE
MARK LINE: HAUL-0FFS & CUTTER SCREW DIAMETER: 90MM

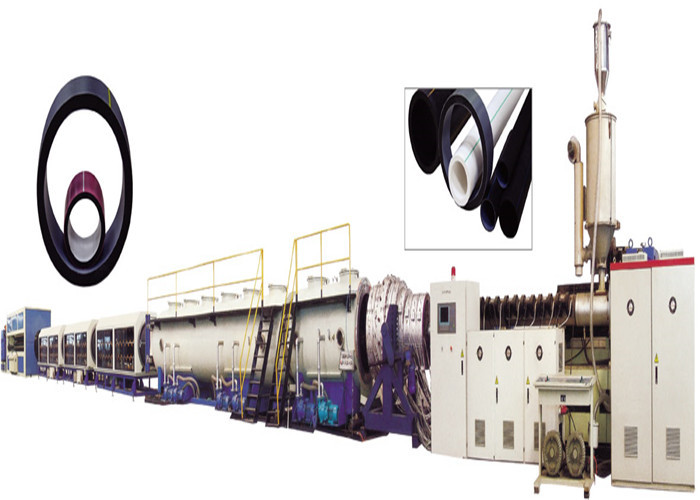

PE MULTI LAYERS PIPE EXTRUSION LINE WITH HAUL-OFFS & CUTTER UNITS


This set is composed of the conical twin-screw extruder, vacuum calibrating tank, haul-off, cutter, stacker or belling machine etc.

The extruder and haul-off adopt the imported AC frequency control device.The vacuum pump and hauling motor employ superior goods.Haul-off of different specifications,such as two caterpillars,three caterpillars,four caterpillars,six caterpillars etv are designed for different requirements.It may choose the saw blade cutting type or the planetary cutting type.It is additionally attached with lengh measuring apparatus and thickness increasing device.The unit is of reliable performance and high production efficiency.



THE COMPLETE EXTRUSION LINES CONSIST OF FOLLOWING ITEMS:

  • Single Screw Extruder:

It is used for melting and stirring plastic material. LANGBO adapts special screw and barrel type that provide perfect mixing and homogenous. Our Extruder has 2.5kg/h-1000kg/h capacity for PE pipe.

We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

  • Die-Head:

Our die-head designing gives ideal viscosity to melt material for pipe producing. It gives tube or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.

LANGBO produce single layer, two layer and multi layer pipe die-heads. Foil cover head. Over steel pipe plastic covering die-head and other special die-head.

  • Vacuum Tank:

LANGBO Vacuum Tanks are manufactured with stainless steel.

Our nozzles designing for maximum cooling performance. Cooled water sprinkles to hot plastic pipe outside face from the nozzles.

With high power water pump, cooled water can reach to pipe completely.

Our vacuum tank’s pressure can be adjusted, so vacuum pressure can be fixed according to pipe requirement.

We sealing gasket for every lid on the vacuum tank. This stops vacuum leakage and minimizing energy consumption.

  • Haul-offs:

With the material we have used in our haul-offs, we have very good adhesion to the pipe and ensure slip prevented.

The needed speed for setting of pallets can be changed with electrical inverter. Different line speeds are adjusted by using control panel easily.

We manufacture haul-offs depending on pipe diameter from 2 pallets to 10 pallets.

Our haul-offs can work synchronously with pipeline. As the extruder speed increasing automatically, haul-offs speed is increased.

  • Cutter:

LANGBO planetary saw cuts the pipe at designed length without any burr.

Cutting speed during the cutting is synchronous with the line speed by PLC, so accurate length is provided.

Pipe length to be cut is easily adjusted via the touch screen.

Pipe length measure by encode so desired length can cut precisely.

  • Tipping Table: It operates on pneumatic cylinder.

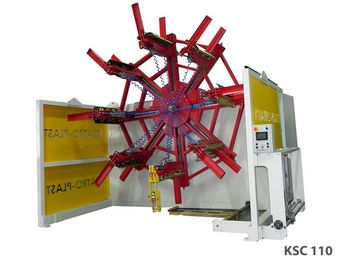

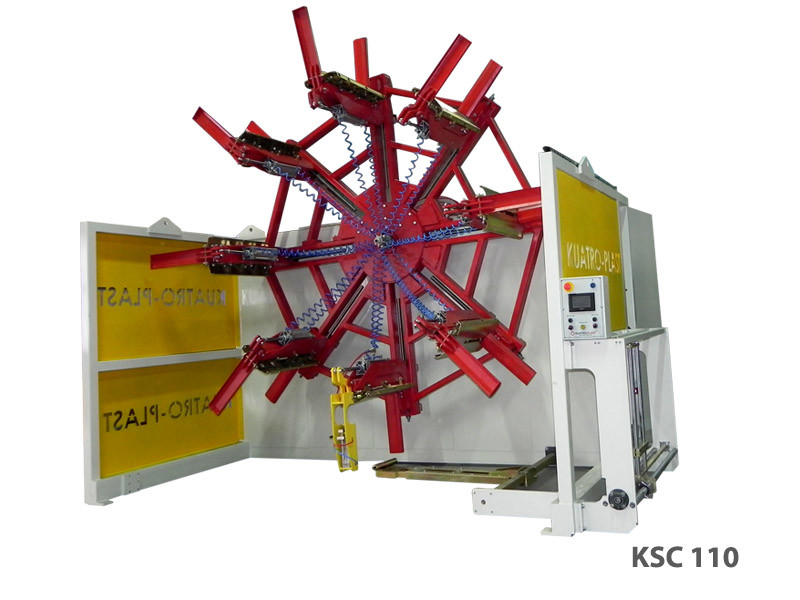

  • Coiler:

LANGBO plastic pipe coiler designed for winding PE pipes, corrugated and dripping pipes. We use torque motor for positioning pipe on the coiler that provides accuracy of coiling.

Our coilers can coil diameter of 16mm pipe up to diameter of 125mm of pipes.

With the torque setting, tension of the pipe coming from the line can be adjusted easily and at the end of coil winding, the coil is removed very easily as well.




All Extrusion pipe lines can be equipped with various auxiliary equipments in order to meet our customer’s requests and provide solution from a single source.


Volumetric and gravimetric dosing units
Raw material loading units
Belling machines
Corrugators

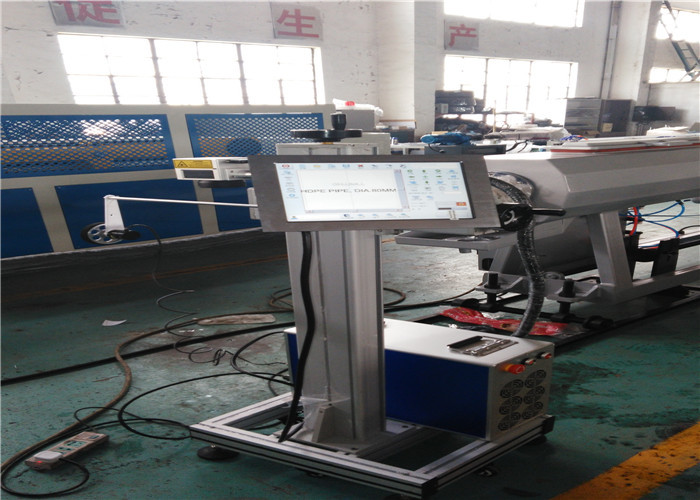

Ink jet marking units
Winding units
Tilting tables


SPECIFICATIONS:


MODEL PIPE DIAMETER (MM) EXTRUDER MODEL MOTOR POWER
LB-63 20-63 SJ65/33 55AC
LB-110 20-110 SJ65/33 55AC
LB-160 75-160 SJ75/33 90AC
LB-250 90-250 SJ75/33 110DC
LB-315 110-315 SJ90/33 160DC
LB-450 160-450 SJ90/33 160DC
LB-630 315-630 SJ120/33 280DC
LB-800 500-800 SJ150/33 315DC
LB-1200 710-1200 SJ150/34 400DC


Multi Layers PE Pipe Extrusion Line With Haul Offs Cutter Units 90KW PowerMulti Layers PE Pipe Extrusion Line With Haul Offs Cutter Units 90KW Power
