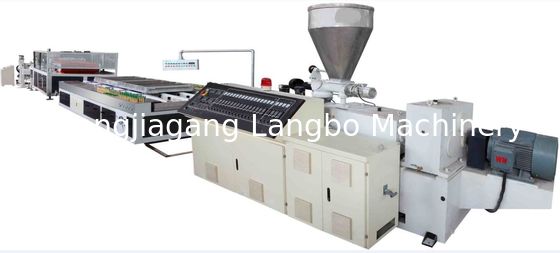

Double Screw Wpc Extrusion Line , Energy Saving PVC Wall Panel Production Line Double Screw Wpc Extrusion Line , Energy Saving PVC Wall Panel Production Line

Large Image :  Double Screw Wpc Extrusion Line , Energy Saving PVC Wall Panel Production Line

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO
Model Number: LB
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

Double Screw Wpc Extrusion Line , Energy Saving PVC Wall Panel Production Line

Description
Condition: New Model Number: SJMS 65/132,80/156,92/188
Power(W): 150KW RAW MATERIAL: WPC
Screw Design: Double-screw Output: 200-500kg/hr
High Light:

wpc profile machine

,

plastic profile extrusion machine

WPC extrusion machine /pvc wall panel production line/WPC profile machine

Product Description



Combining advanced Canadian technology and the domestic practical situation, our company developed the SJMS series WPC production line.WPC profile extrusion line is adopted specially designed screw, barrel, mould and unique WPC craft and formula initiated by our company. The extruder can match with the auxiliary machines and moulds perfectly. The whole production line is of automatic control from the loading to the final discharging. The machines can also be manually adjusted separately. With the advantages of good plastication, low energy-consumption, high output, excellent performance, long endurance, etc.

It can be equipped with relative auxiliary equipment, such as vacuum calibration platform, haul-off machine, cutting machine and material stacker. It is mainly used for extruding outdoor decorative WPC profiles, such as gardening landscapes, outdoor landscapes, pallets, etc.



Model
SJMS 65/132
SJMS 80/156
SJMS 92/188
Screw diameter(mm)
65
80
92
L/D Ratio
22(25)
22(25)
22(25)
Output(kg/h)
200-240
250-350
400-500
Main motor power(kw)
37
55
110
Heating power(kw)
4 zones,20kw
5 zones,38kw
6 zones,54kw





Main Features on WPC extrusion machine /pvc wall panel production line/WPC profile machine

1) Simple structure in linear type, easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) High pressure oil temperature control the die extrusion.
4) Running in a high automatization and intellectualization, no pollution.

5) Apply a linker to connect with the air conveyor, which can directly inline with filling machine
