Product Details:
|
Product Name: | PVC Pipe Extrusion Line | Extruder Concept: | Conical Twin Screw |
---|---|---|---|
Type Of Extrusionline: | SJSZ51/105 | Voltage: | 380v 50HZ 3P |
Relay: | Schneider | Temperature Sensor: | Omron |
Temperature Control: | Recycled Water | Motor: | Siemens |
Inverter: | ABB | Screw Material: | 38CrMoAlA |
Warranty: | Core Components 1 Year | After Sales Service: | On-Site Commission |
Origin: | Jiangsu, China | Port Of Shipping: | Shanghai |
Highlight: | plastic tube making machine,pvc pipe production line |
High Capacity 380V 50HZ 3P PVC Pipe Extrusion Line Plastic Pipe Extruding Machine
Feature of our PVC pipe extruder Machine:
1. High-efficiency twin screw extruder.
2. It can produce PVC pipes.
3. The pipe diameter range:16-630mm or customers' request.
4. The PVC pipe is mostly used in construction industry water supply, drain, electrical cable coating and underground sewage treatment and so on.
5. Our twin-screw feeding device is special designed for PVC powder; an energy efficient feeding is one of the important reasons for our high capacity. What’s more, the feeding concept effectively prevent powder in the feeding process of bridging and material shortage phenomenon occurred.
6. The control system with intelligent distributed the new scheme, with a single adjustment, across the board synchronous linkage, automatic fault alarm, beautiful in appearance, convenient in operation, high degree of automation, stable and reliable production.
Technical Parameters:
Model | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC-315/630 | PVC-500/800 |
Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 500-800mm |
Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h | 1400kg/h |
Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min | 0.05-1 m/min |
Extruder model | SJZ-51/105 | SJZ-51/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | SJZ-92/188 | SJZ-105/220 |
Installed power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw | 305kw |
Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1350mm |
Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m | 42*3.5*3.2 m |
Main Composition:
Item | Quantity |

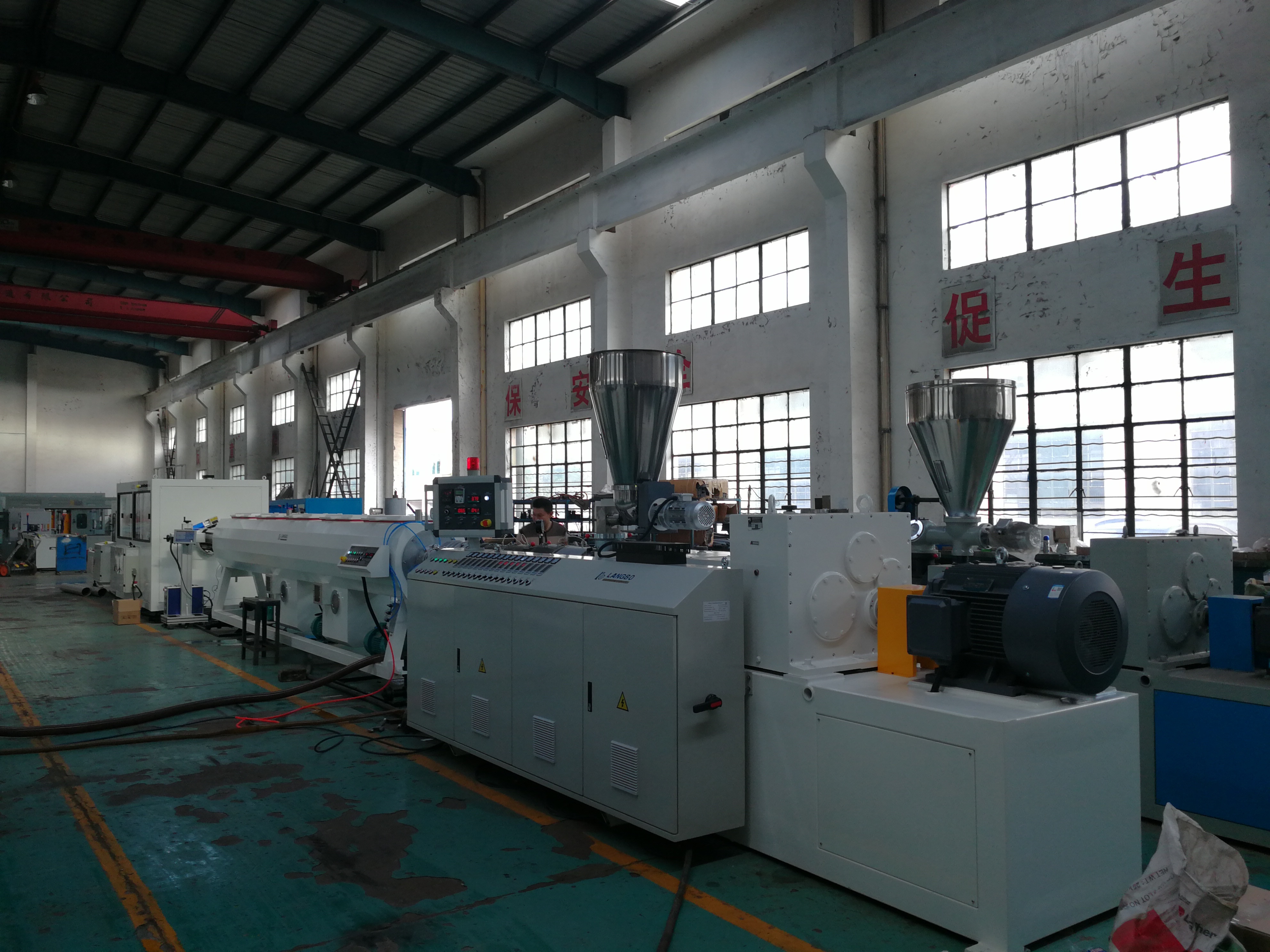

SJSZ-51/105 conical twin screw extruder (Equipped with automatic feeding unit) | Two sets |
Die and Mold | One set |

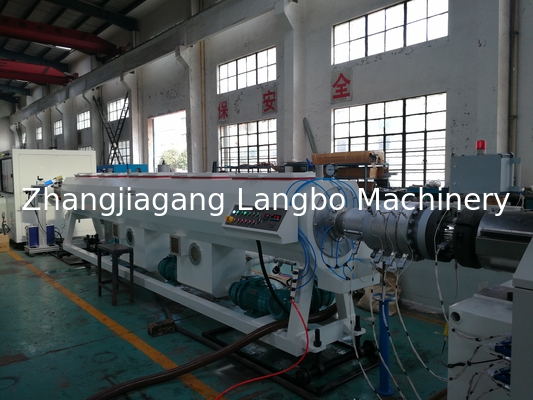

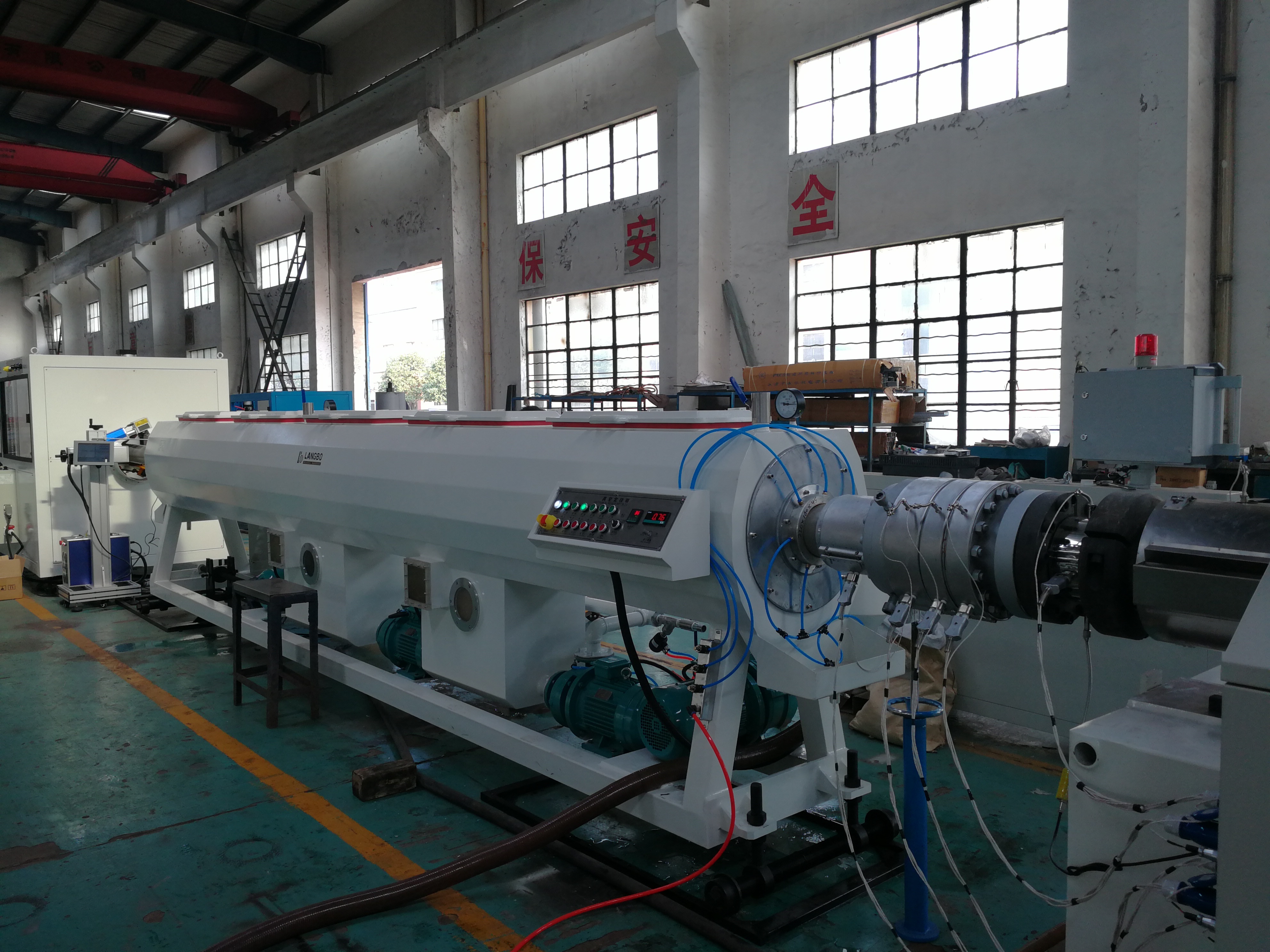

Vacuum calibration unit | Two sets |

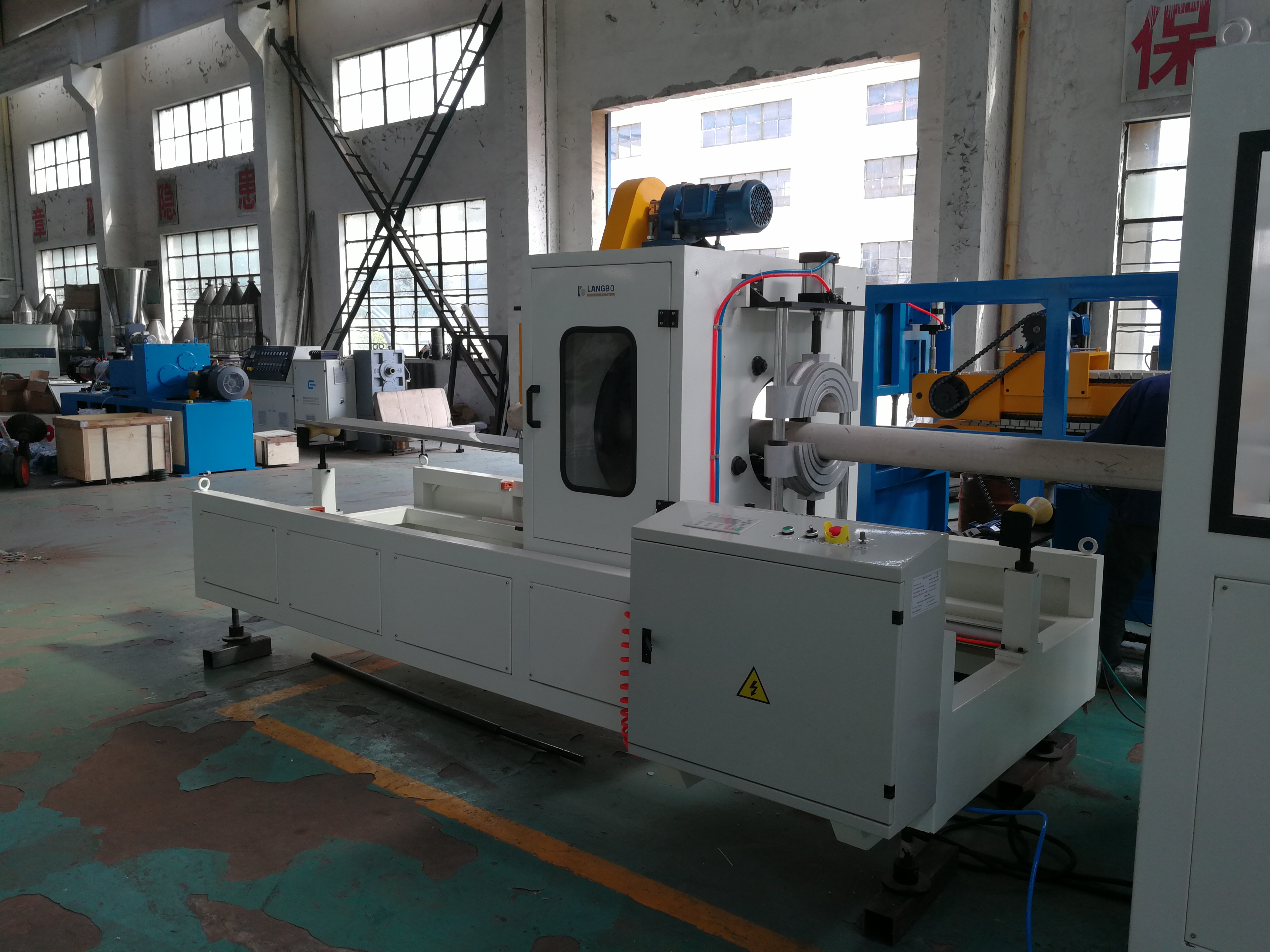

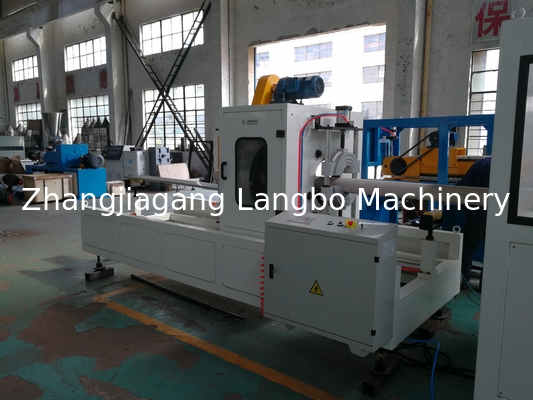

Haul-off unit | One set |

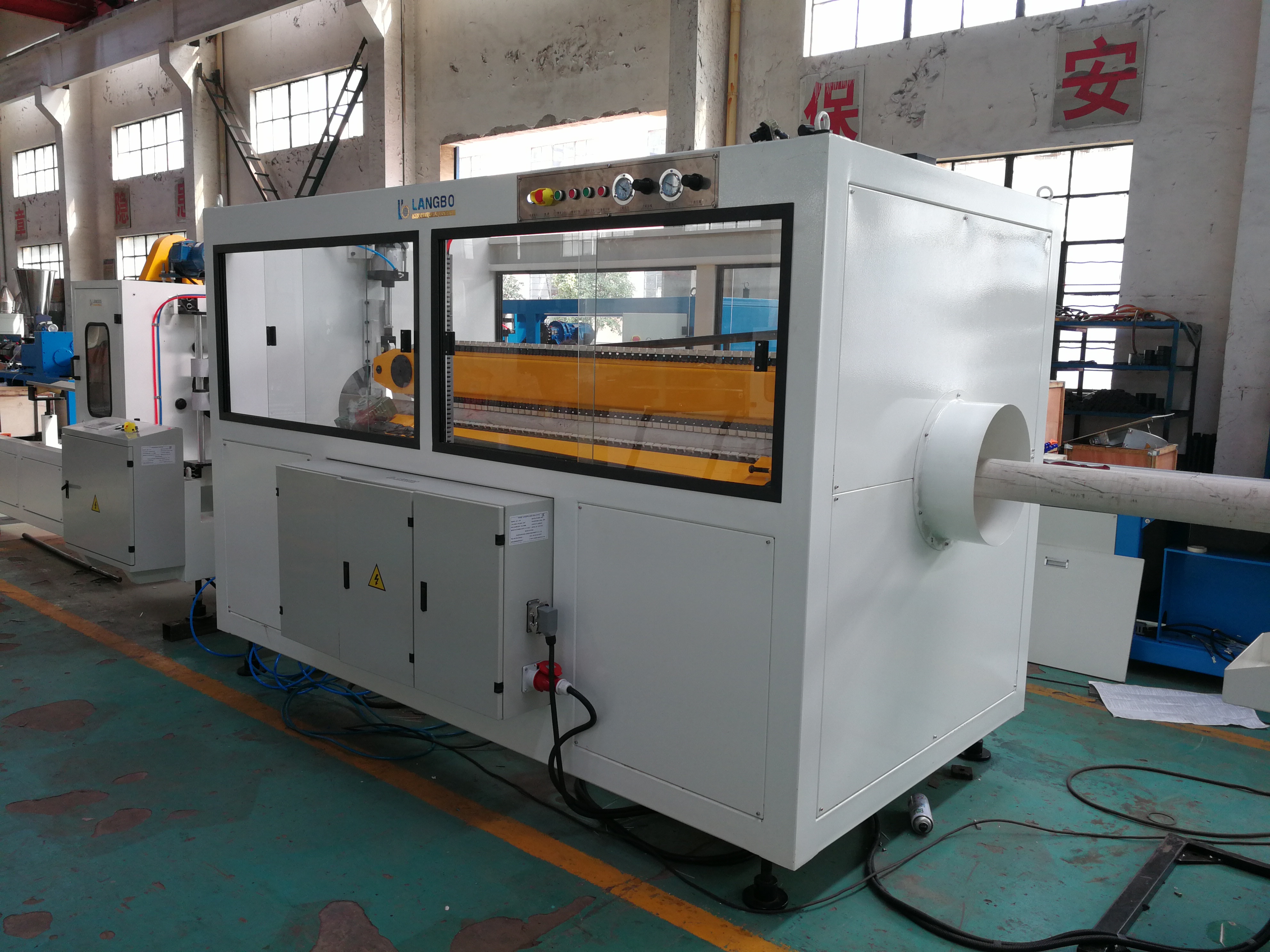

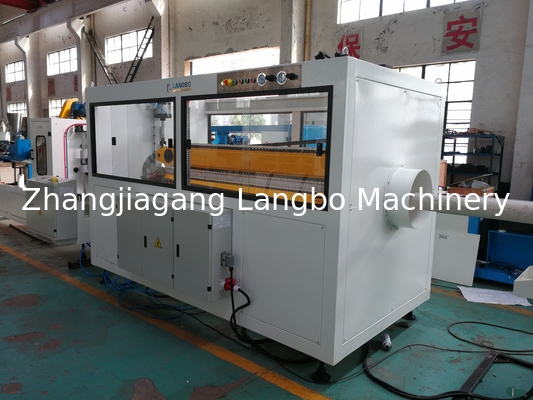

Cutter Unit | One set |
Stacker | One set |
Application:
The PVC pipe is mostly used in construction industry water supply, drain, electrical cable coating and underground sewage treatment and so on.
