16 to 1600mm Plastic PVC PPR PE HDPE Water Supply Drainage Irrigation Gas Pipe Making Machine Extrusion Line

Brand Name: LB
Model Number: LB-63W
Place of Origin: Jiangsu, China
Certification: CE ISO
Minimum Order Quantity: 1 SET
Price: USD EUR
Supply Ability: 15 SETS PER MONTH
Tags

pvc pipe production line

plastic tube making machine

plastic pipe extrusion line

Product Details

Product Name: PVC Pipe Extrusion Line Extruder Concept: Conical Twin Screw
Type Of Extrusionline: SJSZ51/105 Voltage: 380v 50HZ 3P
Relay: Schneider Temperature Sensor: Omron
Temperature Control: Recycled Water Inverter: ABB
Screw Material: 38CrMoAlA Warranty: Core Components 1 Year
After Sales Service: On-Site Commission Origin: Jiangsu, China
Port Of Shipping: Shanghai
Highlight

plastic tube making machine

,

pvc pipe production line

Product Description

Complete production line for PVC/UPVC pipe ranging from 16mm to 800mm diameter. Ideal for manufacturing pipes with various diameters and wall thicknesses for electrical conduit, agricultural, and construction plumbing applications.
Applications

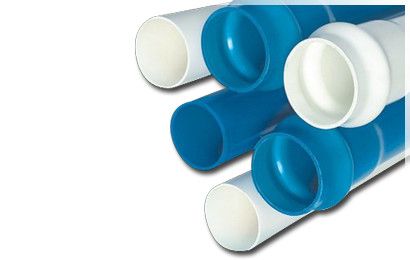

UPVC pipes produced by this line are used for electrical conduit, water supply, sewage systems, house decoration, chemical transportation, and gas distribution lines. Widely utilized in industrial and daily life applications due to their high strength, structural integrity, excellent chemical resistance, durability, thermal stability, non-toxic safety features, and cost-effectiveness.
Production Process
PVC powder + additive → mixing material feeder → twin screw extruder → mould and calibrator → vacuum and cooling tank → spraying cooling machine → haul-off machine → cutting machine → discharge rack or pipe belling machine.
Technical Specifications
Model/Data Pipe Diameter Extruder Model Speed Max Capacity
LB-63 16-63mm LB-51/105 1-10m/min 120kg/h
LB-160 75-200mm LB-65/132 1.5-5m/min 260kg/h
LB-400 200-400mm LB-80/156 0.5-1.5m/min 400kg/h
LB-630 400-630mm LB-92/188 0.1-0.8m/min 650kg/h
Key Components
Mixer
Features specific design that reduces raw material self-friction, improving energy utilization efficiency. Operates with low noise and dust-free vacuum suction loading.
Industrial mixer for PVC pipe production line

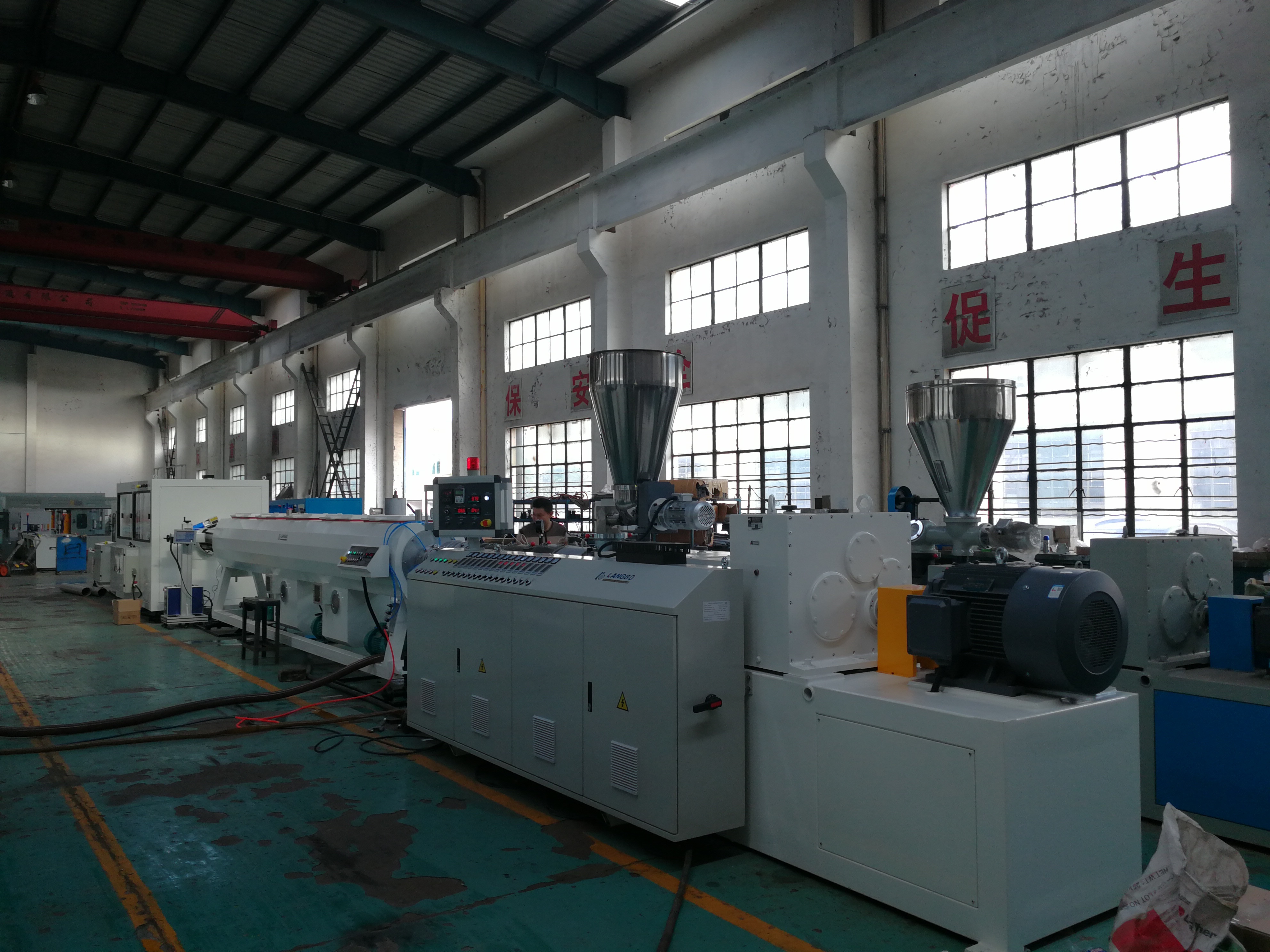

Twin Screw Extruder Machine
Crafted with top brand components to ensure production stability, efficiency, and machine durability. Conical twin screw extruder design ensures homogeneous mixture, better plastification, and superior conveying efficiency.
Twin screw extruder machine for plastic pipe manufacturing

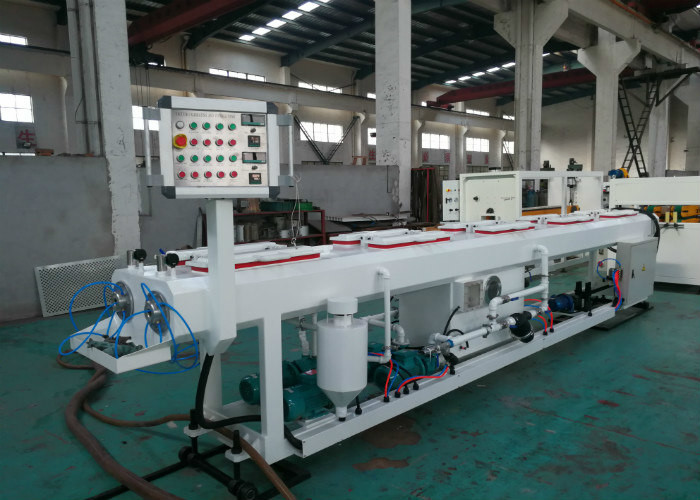

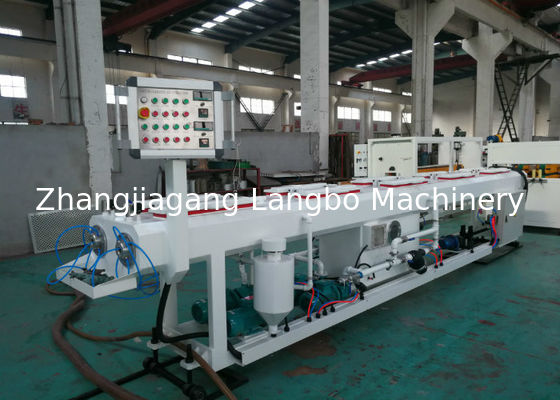

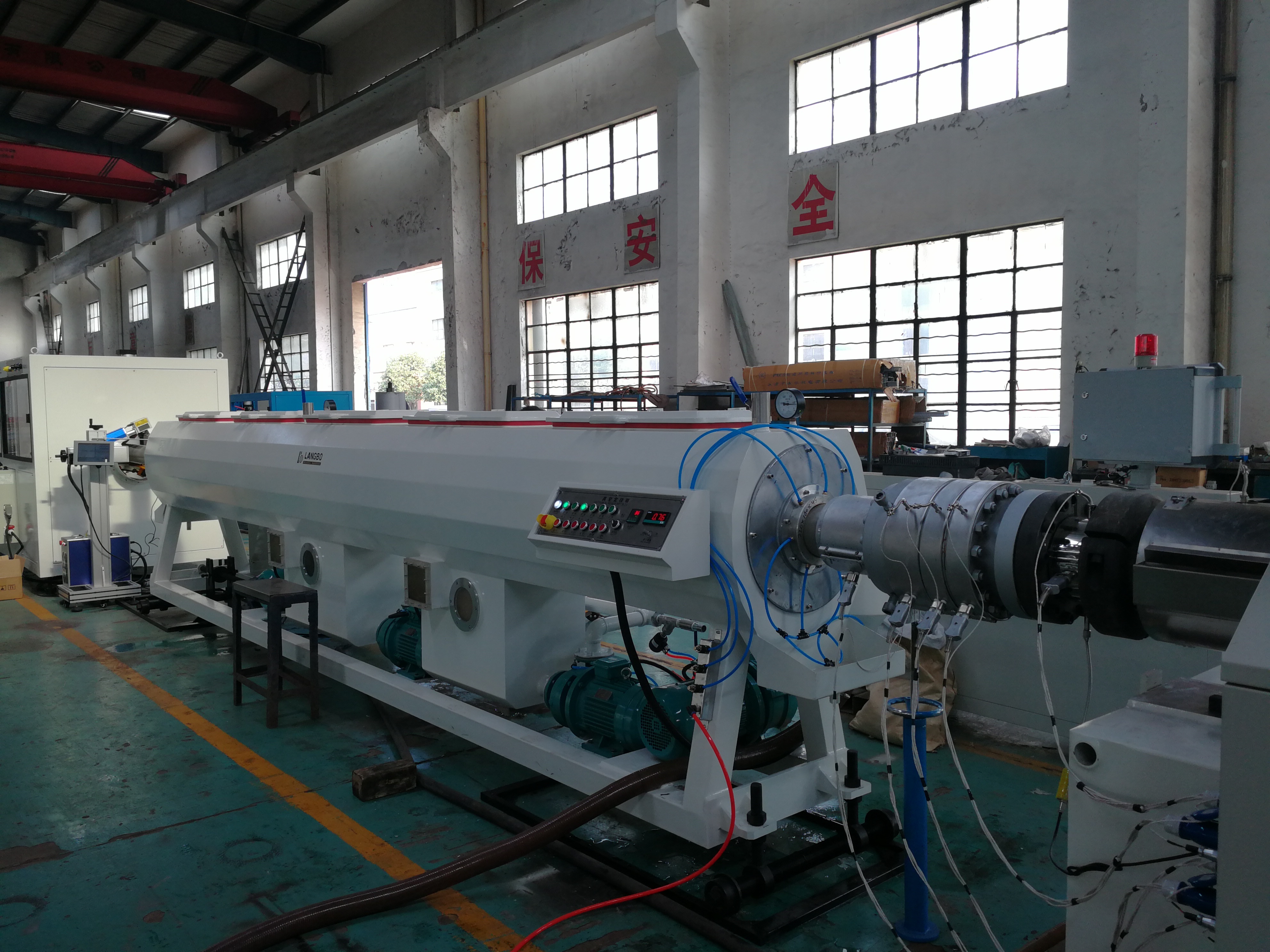

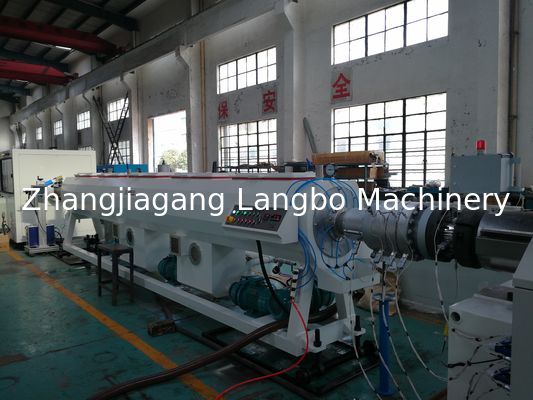

Vacuum Calibration & Cooling System
Two-chamber structure with vacuum calibration and cooling parts. Constructed from stainless 304 steel for both vacuum tank and spraying cooling tank. Excellent vacuum system ensures precise pipe sizing.
Vacuum calibration and cooling system for pipe production

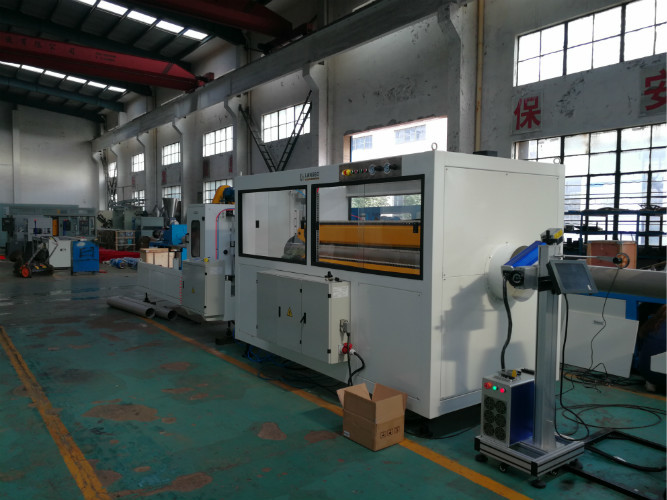

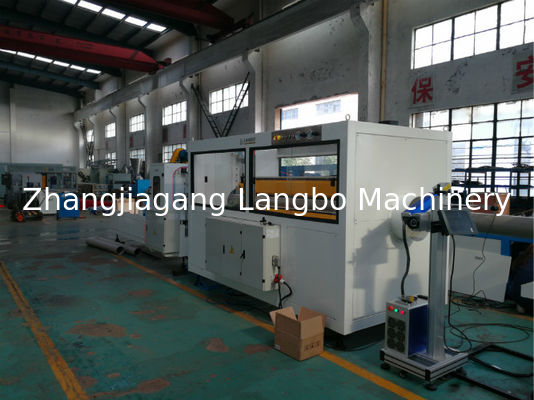

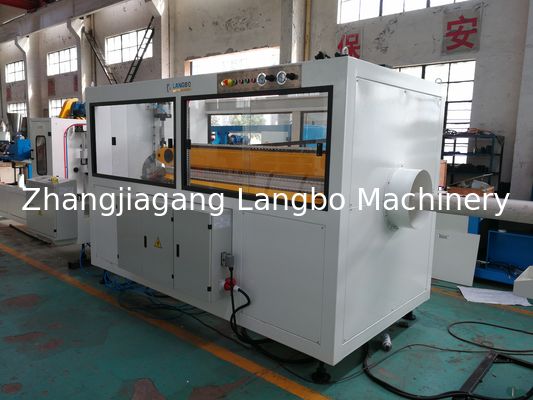

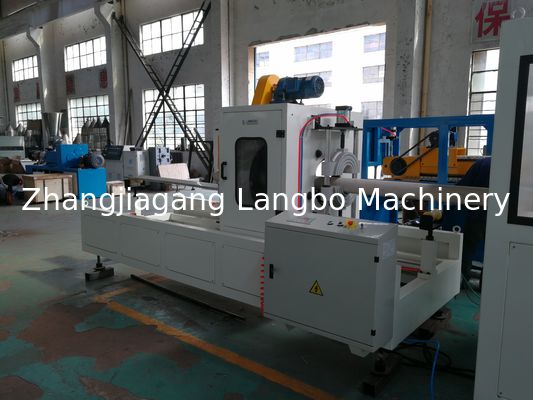

Haul-off Unit
Three crawler tracks ensure stable and steady pipe running. Haul-off units can be tailored to specific production requirements through general control adjustments.
Haul-off unit with three crawler tracks for pipe production

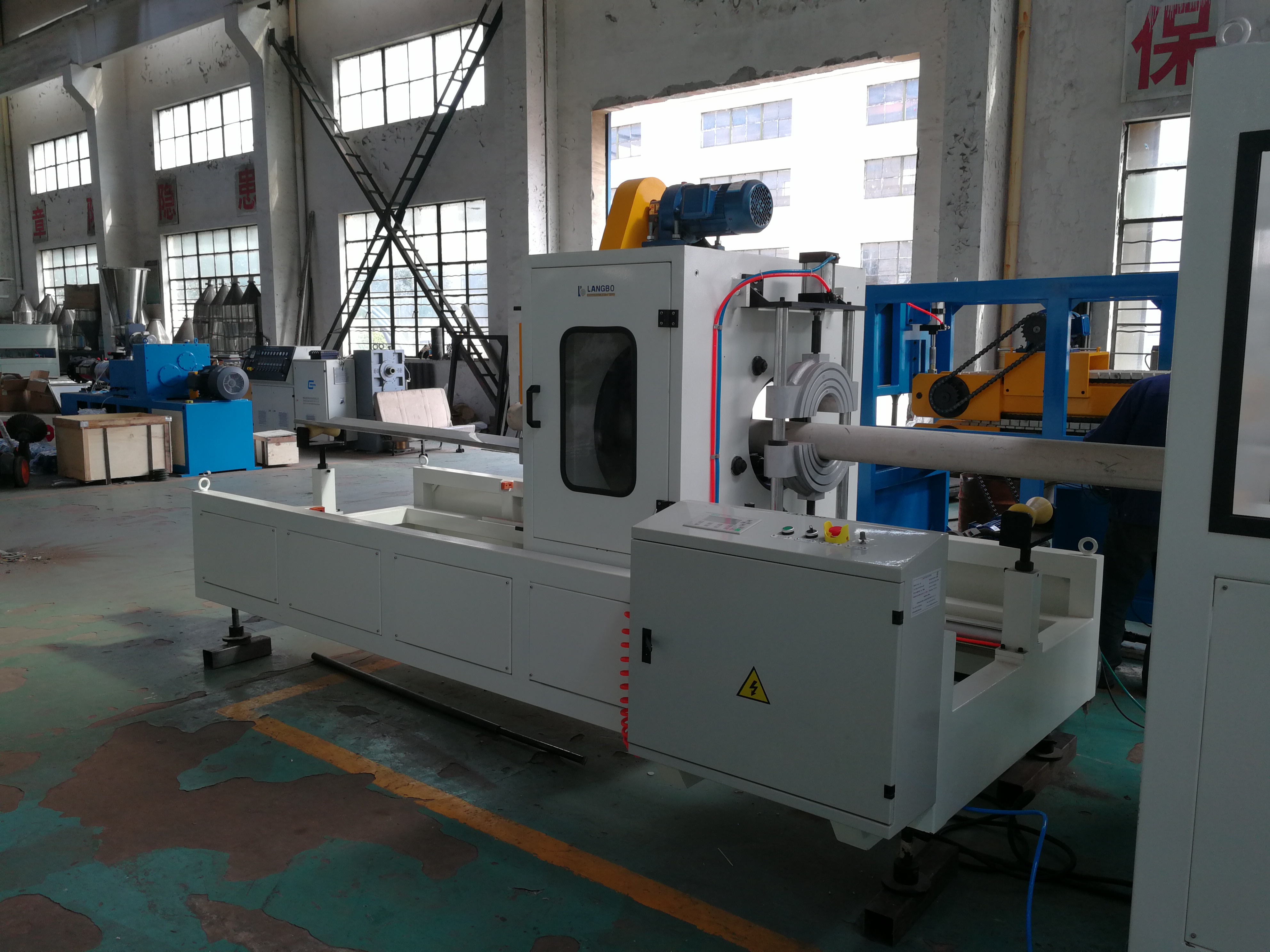

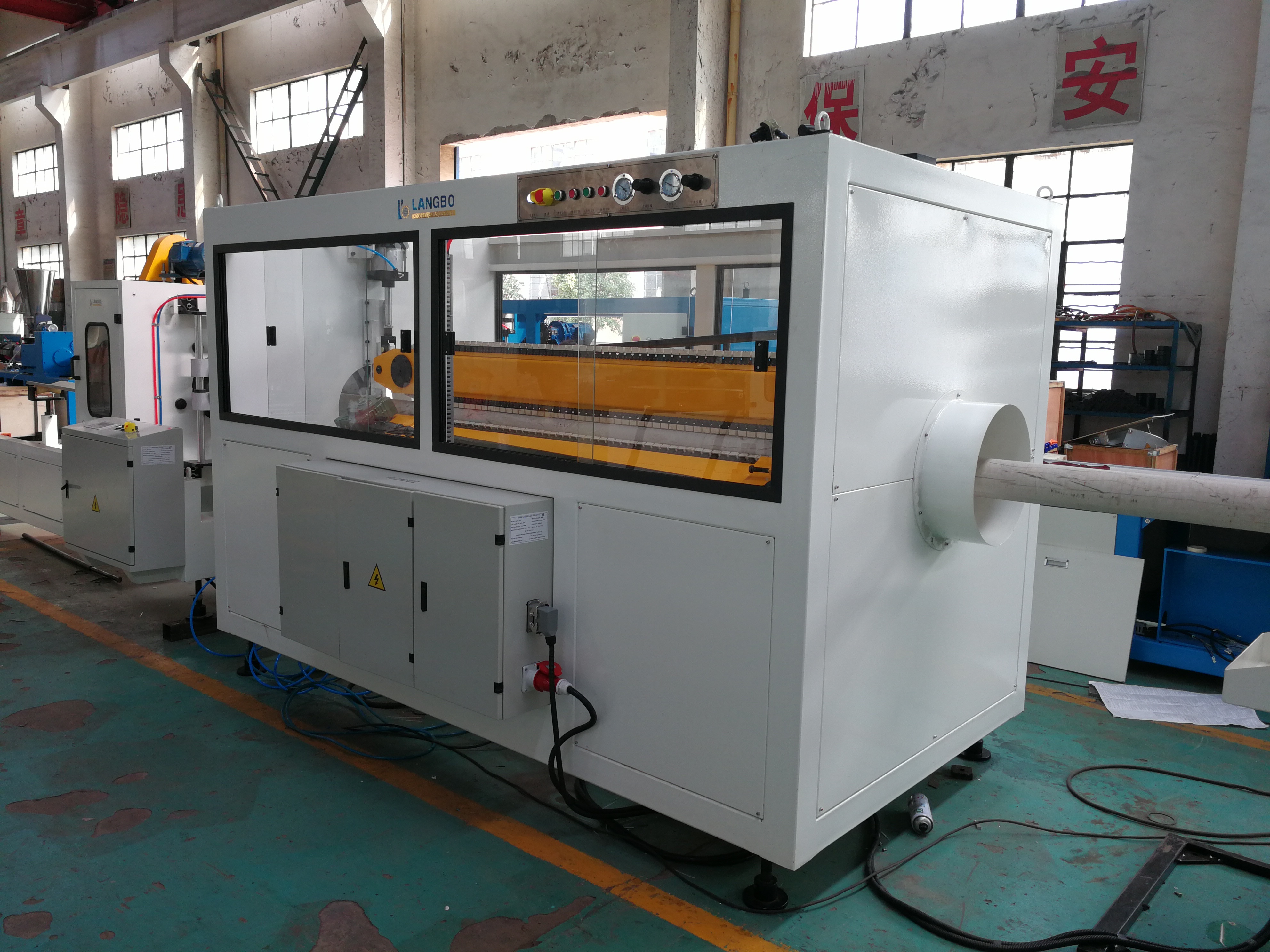

Cutting Unit
High-accuracy encoder ensures precise and stable cutting length. PLC control system allows for manual operation cutting based on specific application requirements.
Precision cutting unit for plastic pipes
Tipping Rack
Automatically tilts to stack pipes neatly, reducing manual handling and ensuring safe, efficient product collection during continuous production operations.
Automatic tipping rack for pipe collection
Service & Support
  • One year guarantee for entire machine
  • 24 hours technical support
  • Overseas installation & commissioning services by our engineers
  • Post-warranty maintenance guidance and competitively priced spare parts
  • Comprehensive operator training services
Delivery & Payment Terms
Delivery: 30 days after order confirmation
Warranty: 12 months
Payment: T/T 30% in advance, T/T 70% before delivery
Packing: Standard export wooden case

Product Highlights

Complete production line for PVC/UPVC pipe ranging from 16mm to 800mm diameter. Ideal for manufacturing pipes with various diameters and wall thicknesses for electrical conduit, agricultural, and construction plumbing applications. Applications UPVC pipes produced by this line are used for ...
