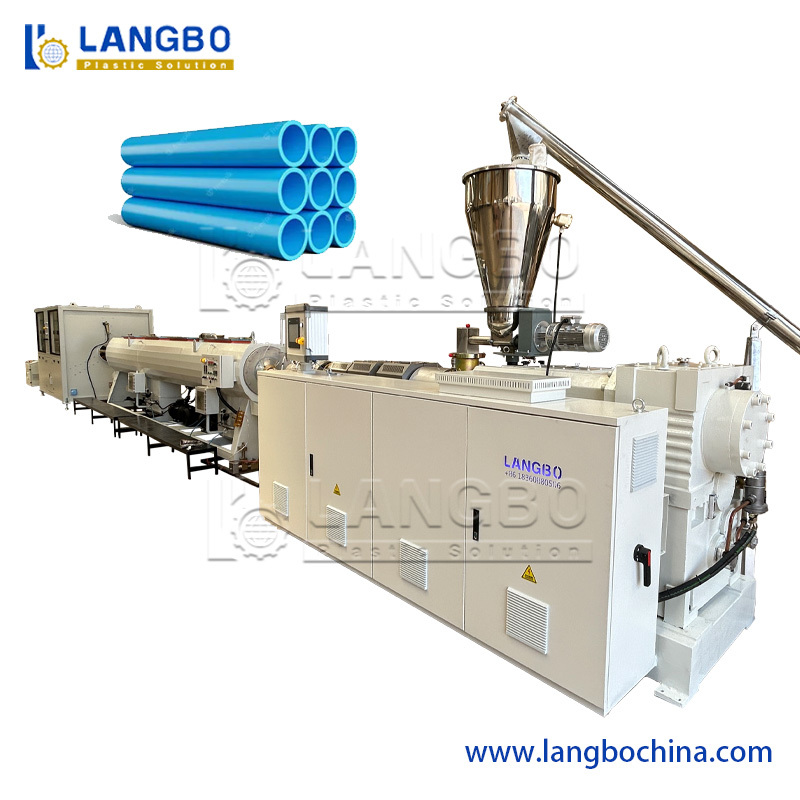

UPVC / PVC Pipe Extrusion Line Full Automatic Plastic Pipe Production Line
Product Details
| Name: | PVC Pipe Extrusion Line | Application: | PVC Pipe Making Line |
|---|---|---|---|
| Raw Material: | PVC／UPVC | Warranty: | One Year |
| Automatic Grade: | Full Automatic | Final Product: | PVC Pipe |
| Inverter: | ABB | Origin: | Jiangsu, China |
| Port Of Shipping: | Shanghai | ||
| Highlight |
plastic tube making machine,pvc pipe production line |
||
Product Description
- Energy-efficient conical twin-screw extruder with specially designed mold enables simultaneous two-piece PVC pipe extrusion
- Clean cutting machine with independent variable frequency speed regulation and Hough clamping device for smooth, burr-free cuts
- Incremental encoder ensures precise cutting length consistency while solving PVC chip dust pollution
- Dual-character ink printing system reduces printing asset costs
- Specialized twin-screw feeding device prevents powder bridging and material shortage
- Intelligent distributed control system with automatic fault alarm and synchronized operation
- Extruder: Conical twin-screw design with optimized screw geometry for reduced plasticizing time and excellent compounding
- Gearbox: High-quality gear box and reducer with stable operation, low noise, and extended service life
- Temperature Control: Cast aluminum heaters with stainless steel covers and wind cooling system for precise temperature management
- Screw & Barrel: Internal temperature control system with vacuum degassing to remove waste gases from raw materials
- Drive System: AC motor with FUJI or ABB inverters for stable torque output and variable speed control
- Vacuum Calibrating Tank: Dual vacuum chambers ensure perfect pipe roundness with spray water cooling and automatic water discharge
- Haul-off Machines: Available in 2, 3, 4, 6, or 8 claw configurations with inverter-controlled speed
- Cutting Unit: Saw cutting or planetary saw cutting options with integrated dust collection system
- Stacking Unit: Automatic overturning system with adjustable pipe length settings
- Control System: Manual control cabinet or PLC touch screen control options
| Model | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 |
|---|---|---|---|---|---|
| Screw Dia. (mm) | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Max. Rotating Speed (rpm) | 40 | 38 | 38 | 37 | 36 |
| Main Motor (kw) | 18.5 | 22 | 37 | 55 | 90 |
| Capacity (kg/h) | 80~100 | 100~150 | 150~250 | 250~380 | 380~700 |
| Center Height (mm) | 1050 | 1050 | 1050 | 1050 | 1100 |
| Net Weight (kg) | 3000 | 3500 | 4000 | 5500 | 8000 |
| L*W*H | 3.6*1.1*2.1 | 3.6*1.1*1.2 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
