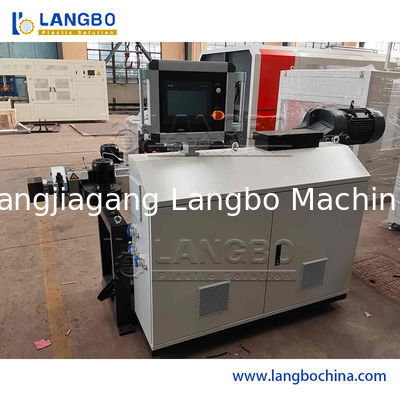

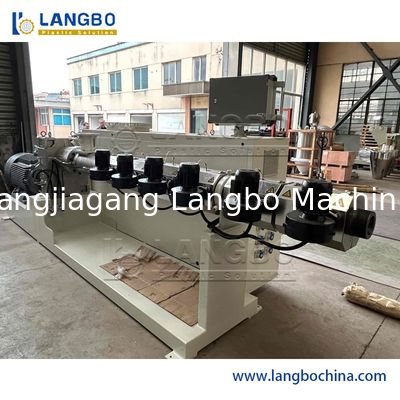

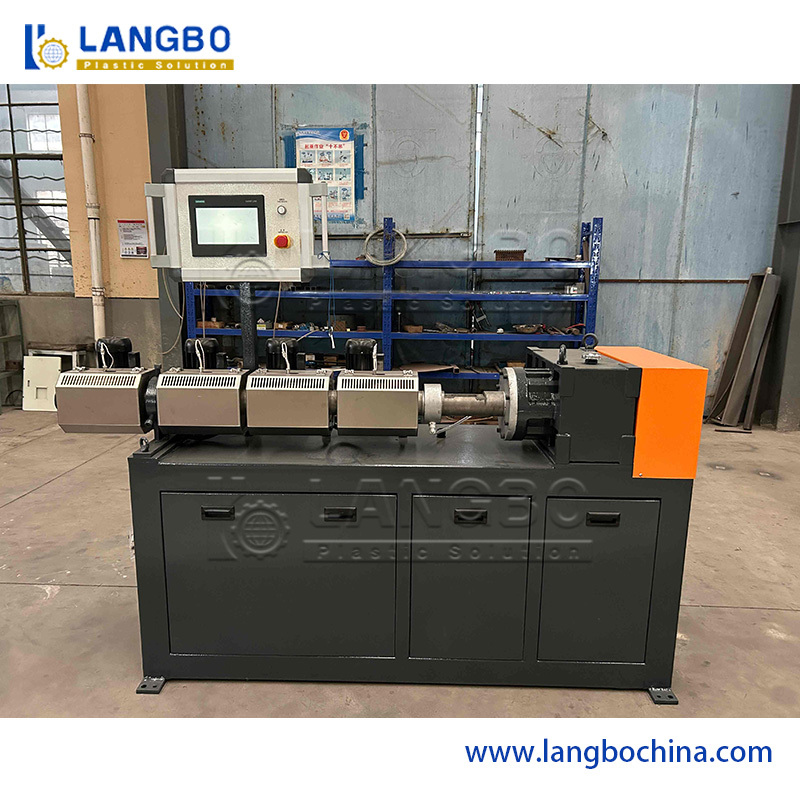

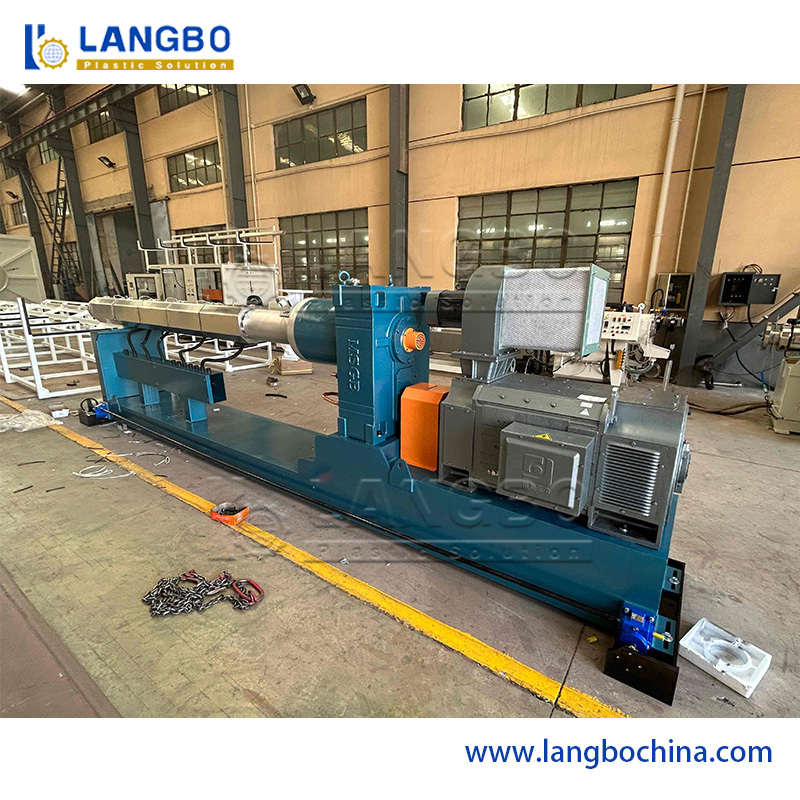

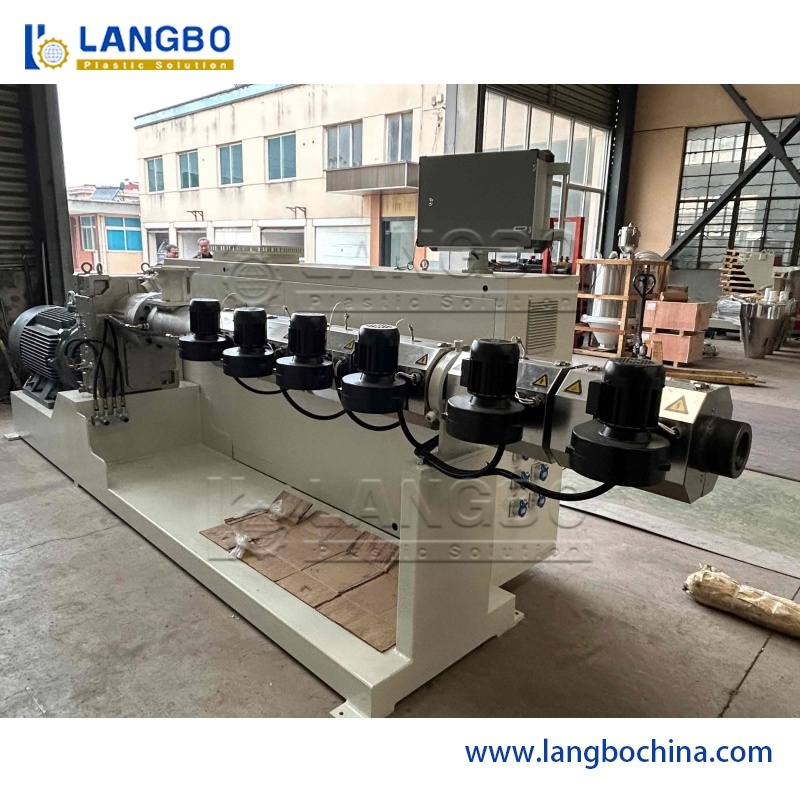

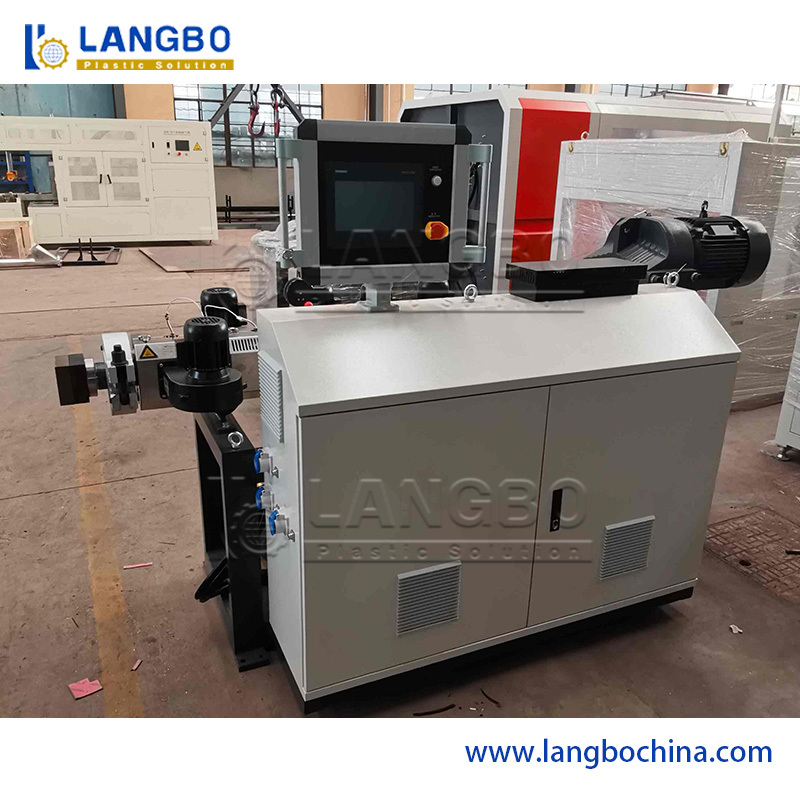

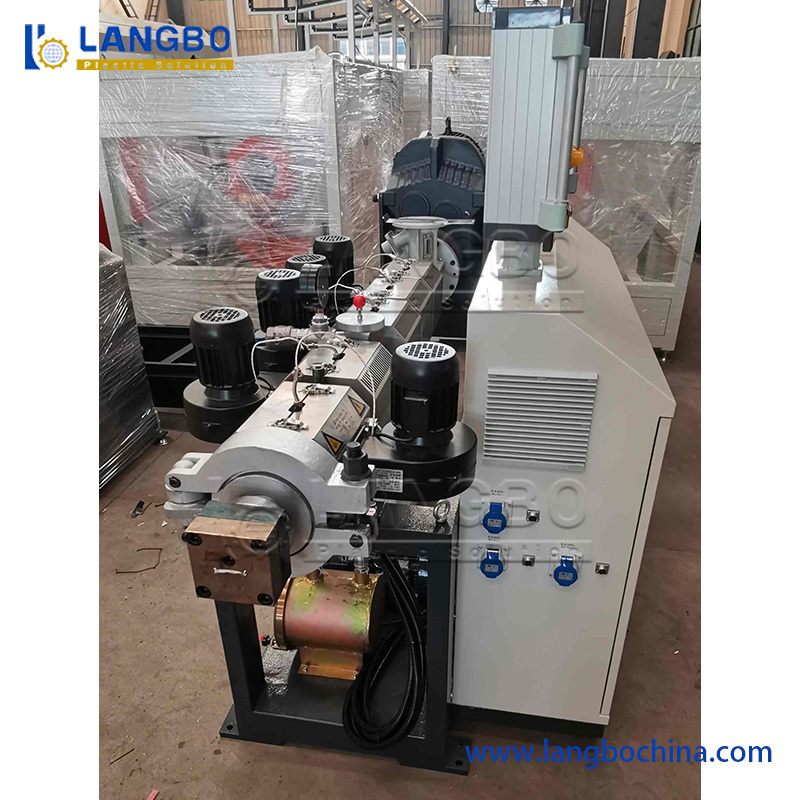

Plastic Single Screw Extruder 150 - 1500KG / H Speed For PE Sewage Pipe

1 SET
MOQ
USD EUR
Price
Plastic Single Screw Extruder 150 - 1500KG / H Speed For PE Sewage Pipe
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Screw Design: Single
Automatic Grade: Automatic
Application: Pipe
Plastic Processed: PP PE
Capacity: 150-1500KG/h
Diameter: 16-1600mm
Highlight:

single screw extruder machine

,

extruder plastic machine
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB
Payment & Shipping Terms
Packaging Details: NORMAL PACKAGE
Delivery Time: 15 SETS PER MONTH
Payment Terms: L/C,T/T
Supply Ability: 15 SETS PER MONTH
Product Description
Plastic Single Screw Extruder 150-1500KG/H for PE Sewage Pipe
High-performance plastic single screw extruder designed for efficient production of PE sewage pipes with output capacity ranging from 150 to 1500KG per hour.
Quick Details
  • Type: PP/PE water and gas supply pipe extruder, PP/PE drainage pipe machine
  • Process Type: Electrical pipe extrusion machinery
  • Pipe Material: PP, PE
  • Application: Water and gas supply pipe systems
  • Diameter Range: 16-1600mm
  • Production Capacity: 150-1500KG/h
  • Usage: Construction and municipal drainage, outdoor gas pipes, agricultural irrigation, threading pipes, wire, cable and optical cable, drainage systems
Product Description
The PE sewage pipe extrusion machine is engineered to produce various pipe types including PPR cold and hot water pipes, single and double pipes, PE/PP/PE-RT/PEX pipes, and silicon core pipes. Capable of producing concolorous pipes using a single extruder or multi-layer co-extruded pipes with multiple extruders for different color layers.
Key Features: High-efficiency special screw ensures stable quality and high extrusion output. Lattice bracket die achieves low melting pressure and plasticizing temperature for wide processing range. Durable tractor crawler track with strong abrasion resistance provides stable high-speed traction power. Dust-free cutting machine operates with low noise and high precision for smooth, flat pipe cutting edges.
Technical Parameters
Model Pipe Diameter (mm) Extruder Model Screw Speed (r/min) Production Speed (m/min) Output (kg/h) Power (kw)
SSG-32PR Ø16-32 SSJ-45 40-100 4-10 100 50
SSG-63PR Ø16-63 SSJ-65 40-100 4-10 150 65
SSG-63PR Ø16-63 SSJ-65 40-100 4-10 150 100
SSG-160PR Ø75-160 SSJ-90 30-90 2-8 200 150
Production Process Flow
Raw material + additive → mixing → vacuum feeder → hopper dryer → single screw extruder → marking line extruder → mould and calibrator → vacuum calibration tank → cooling tank → haul off machine → printer → cutting machine → pipe storage shelve
Applications
  • Construction and municipal drainage systems, outdoor gas pipes
  • Agricultural irrigation systems
  • Threading pipes for wire, cable and optical cable installations
  • Drainage pipe systems
  • Inter-city transportation and urban water supply projects
  • Borehole high-pressure water supply systems
  • Crude oil and natural gas transportation
  • Daily life water supply and drainage
  • Power and chemical plant infrastructure
  • Urban construction projects
Specifications
Model SJ65/30-33 SJ75/30-33
Pipe Diameter Φ20-63 Φ90-200
Screws Dia. & Ribbon Width Φ65,33:1; Φ65,30:1 Φ75,33:1; Φ75,30:1
Output 120kg/h 220kg/h
Linear Velocity (max) 10m/min 4m/min
Installation Capability 58 85
Productivity for Year (meter) 350 150
Competitive Advantages
  • High extruding velocity for maximum throughput
  • Effective plasticization ensuring superior material quality
  • Three co-extruding die capability for versatile production
  • Low operational and maintenance costs
