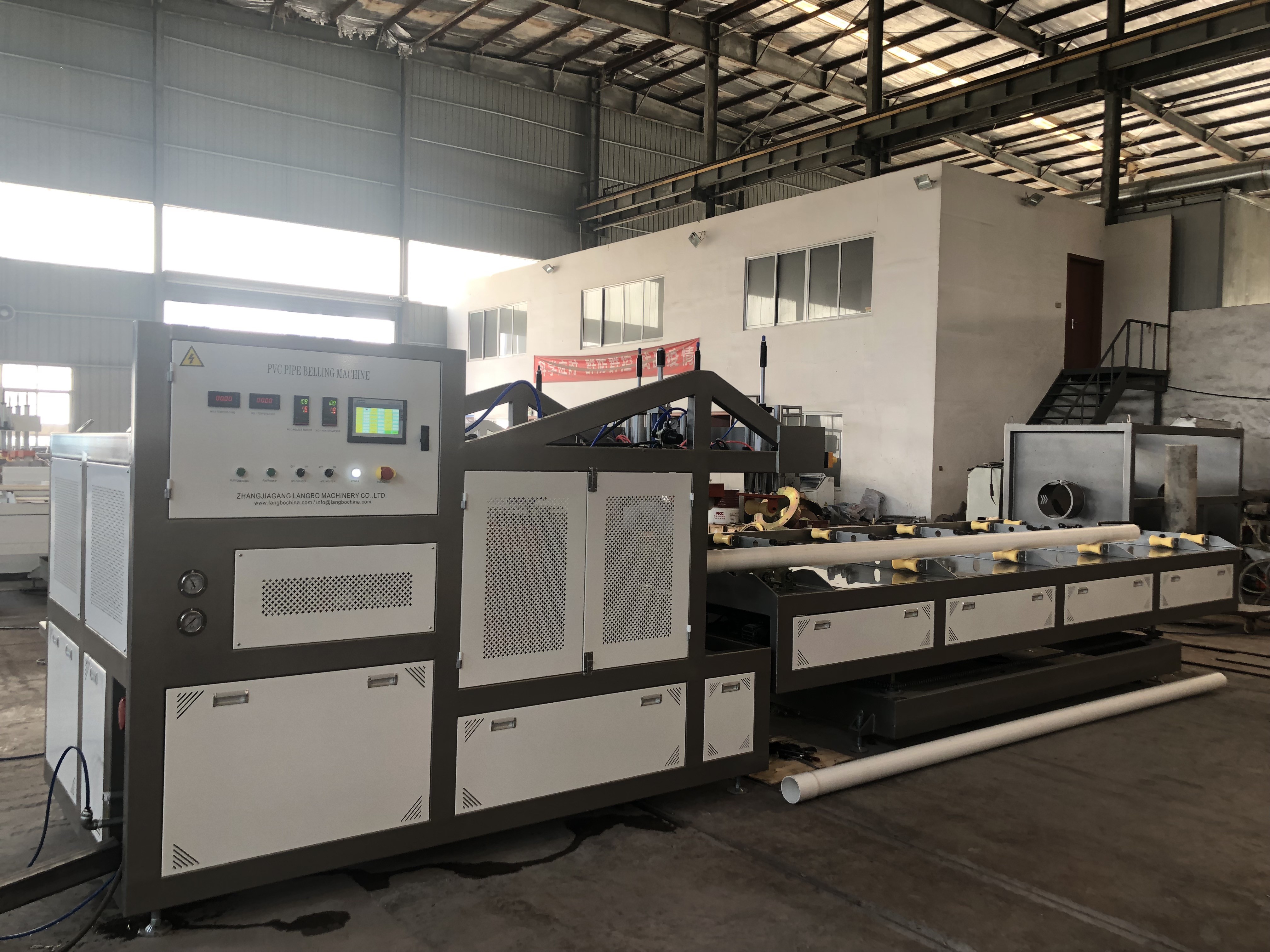

Double Heating Oven Plastic Pipe Belling Machine
Product Details
| Pipe Diameter: | 16~630mm | Capacity: | 120~800kg/h |
|---|---|---|---|
| Delivery Time: | 45days | Install Power: | 37~600kw |
| Extruder: | Single Screw Extruder | ||
| Highlight |
UPVC Pipe Belling Machine,Double Heating Oven Pipe Belling Machine,Rectangle Shape Pipe Belling Machine |
||
Product Description

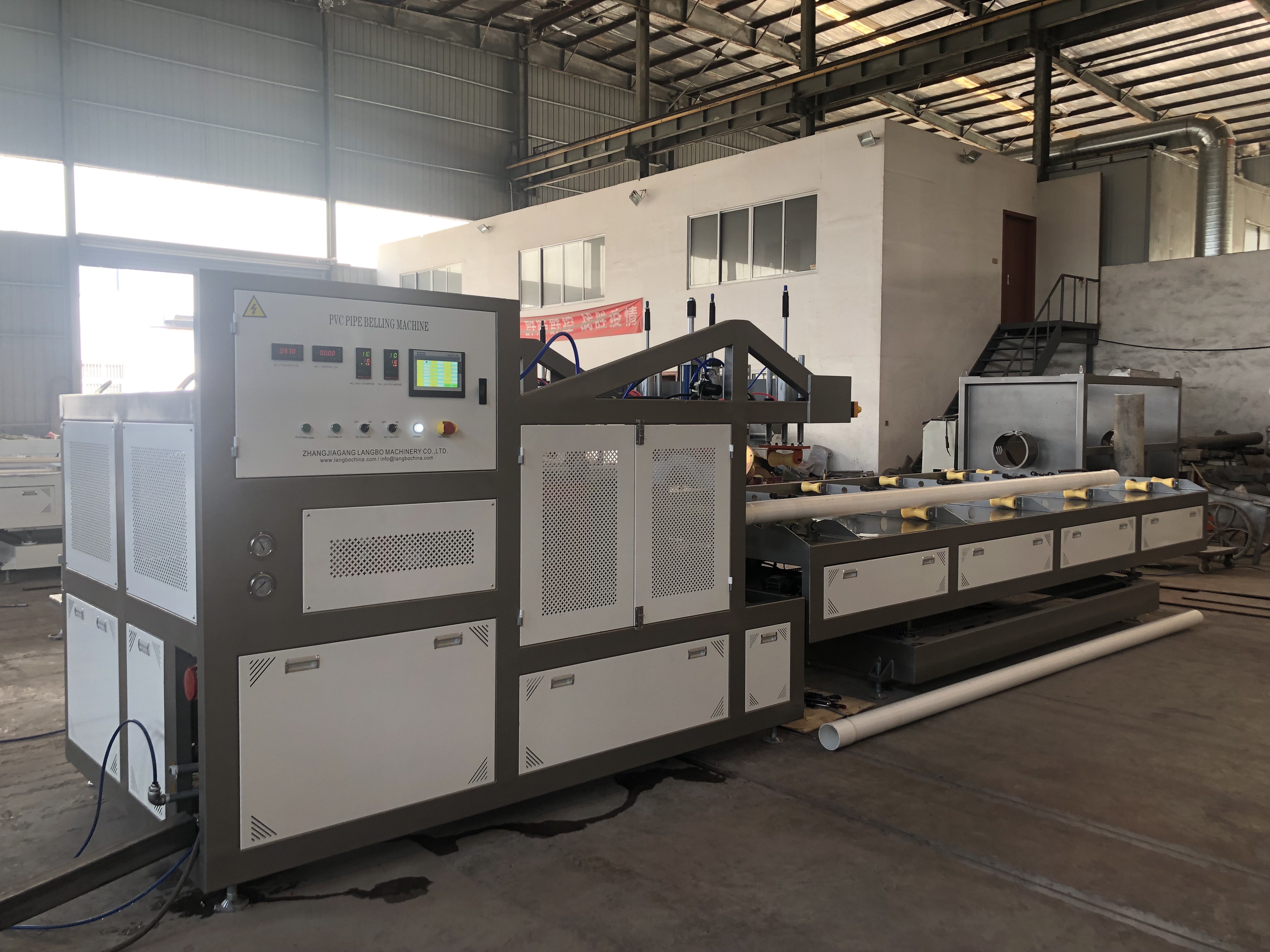

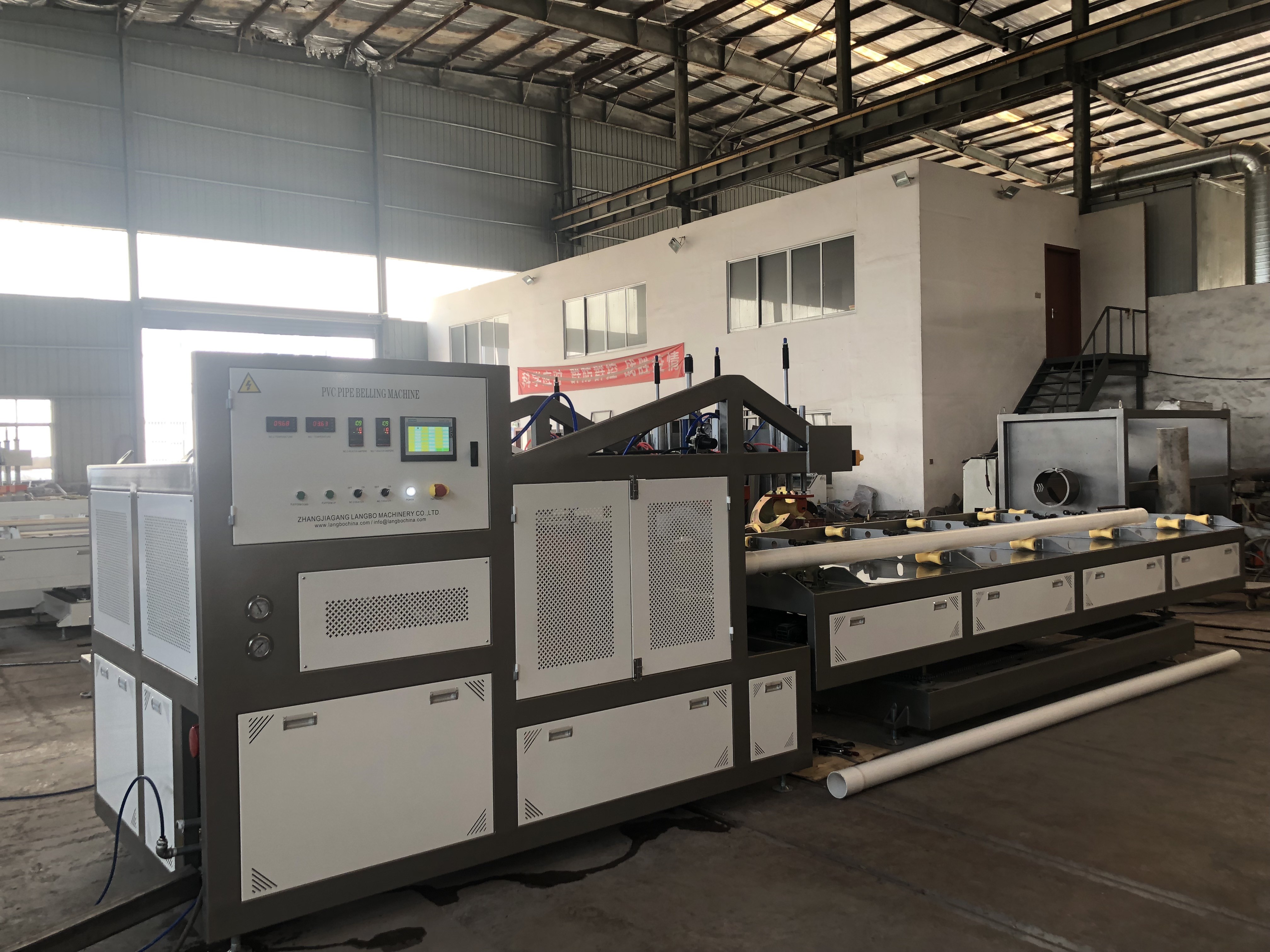

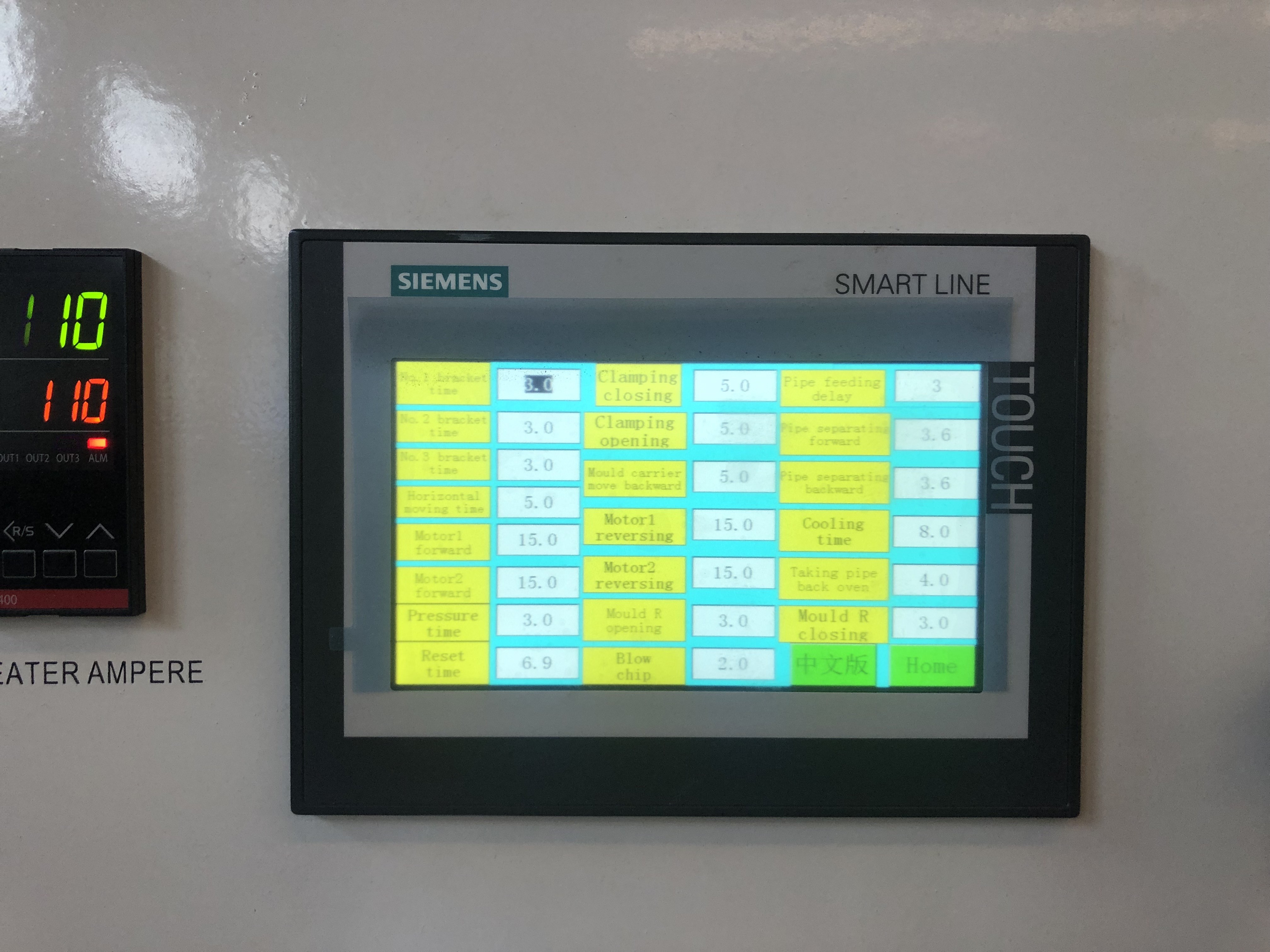

UPVC Pipe Rectangle Shape Belling Machine with Double Heating Oven for plastic pipe belling applications. This fully automatic pipe belling machine features a drawing device and programmable interface, designed for use with extruding machines or as a standalone unit.

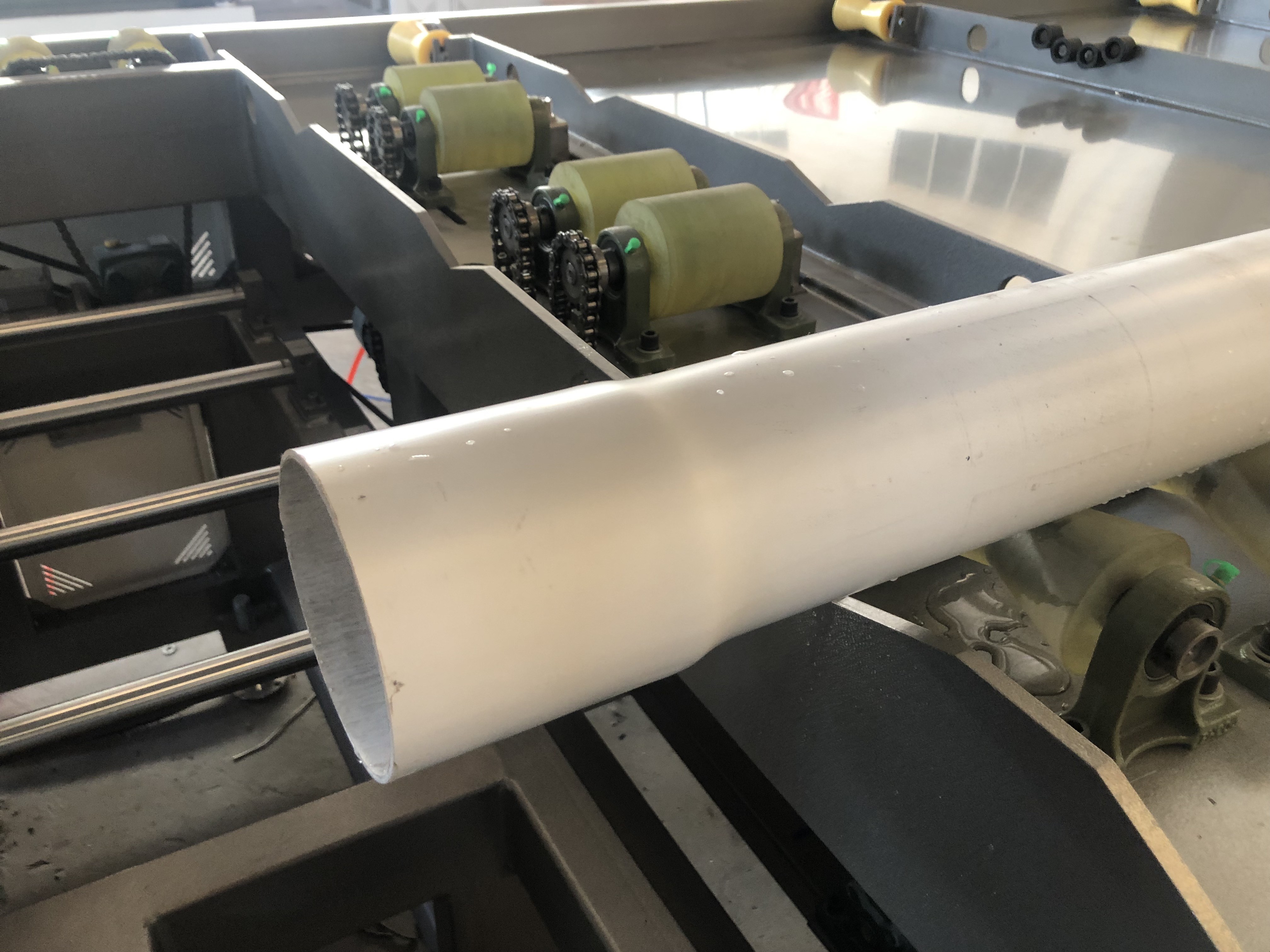

- Translation-based pipe expansion for steady, precise operation
- Electric heating system with individual heating cores in each oven

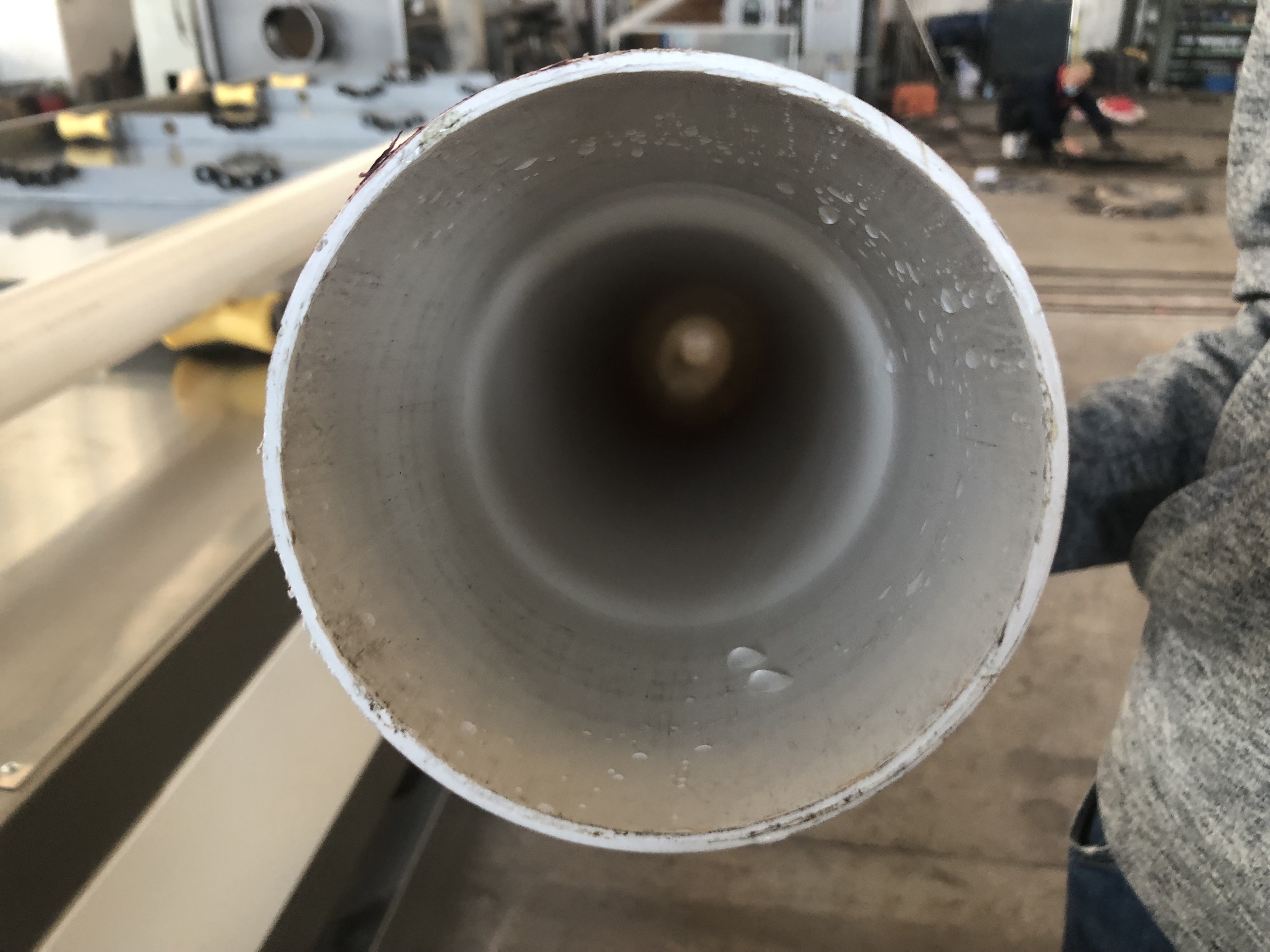

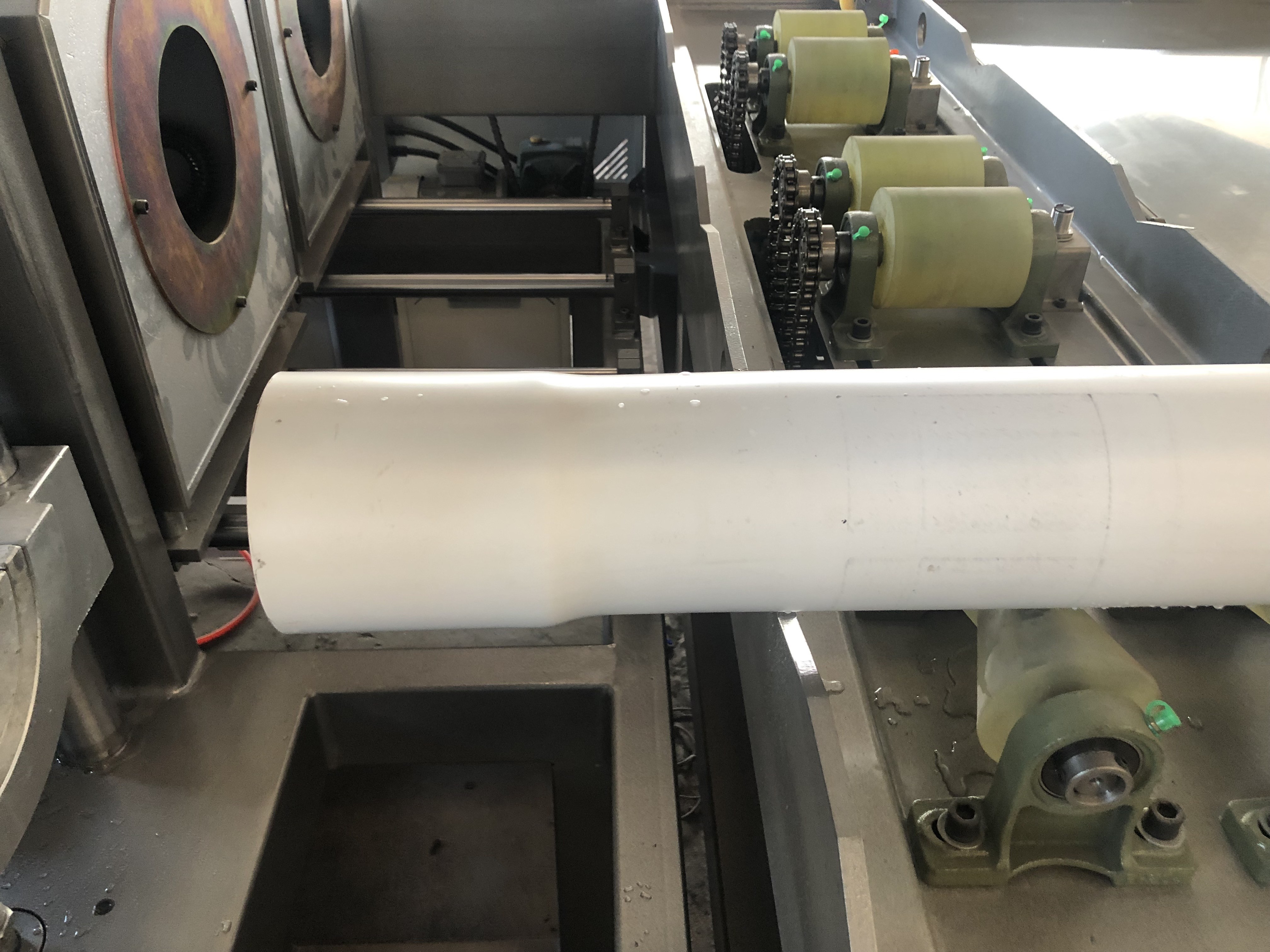

- Expanding-end shaping method for accurate pipe mouth dimensions

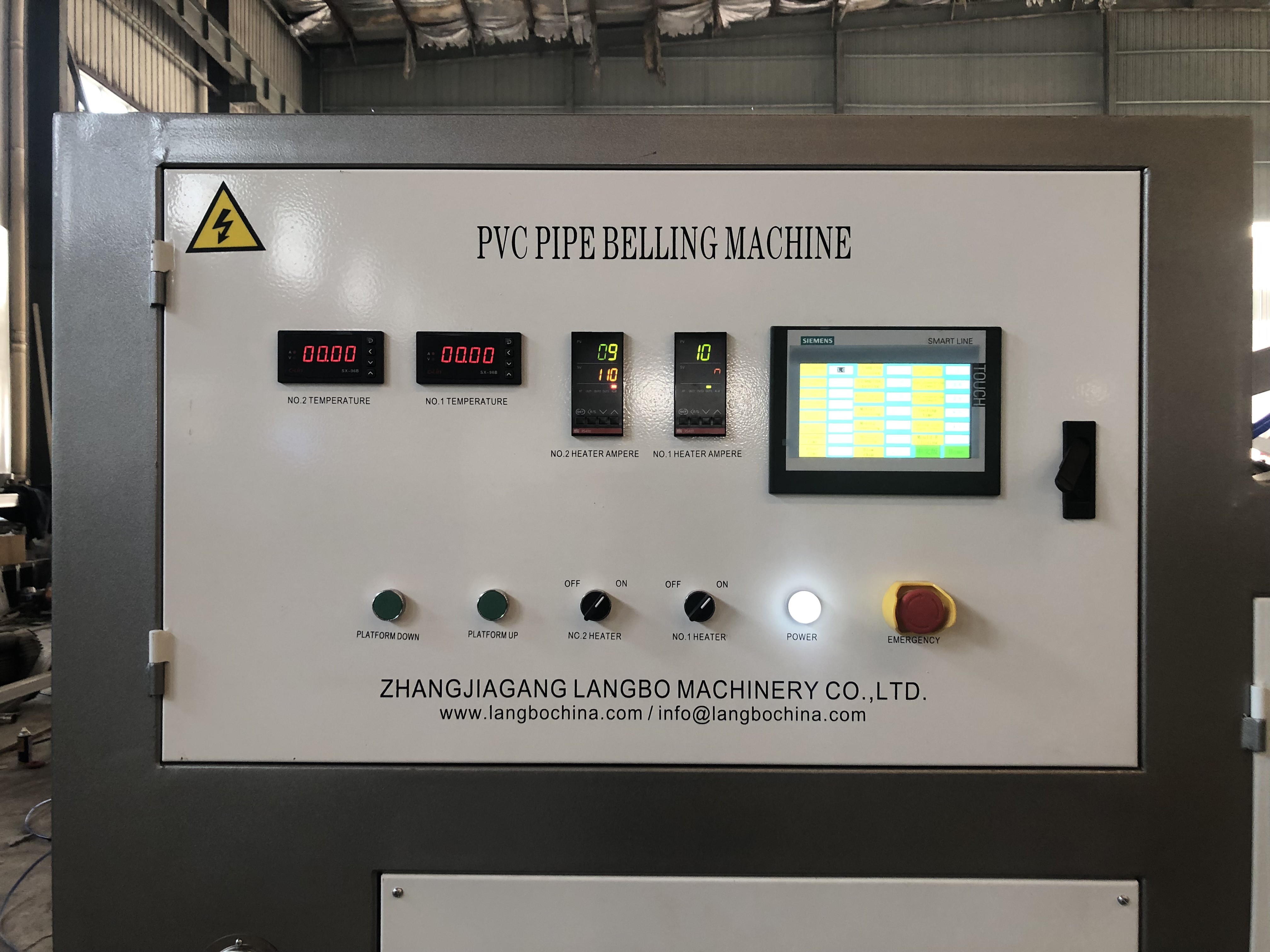

- Panel-mounted transfer switch for socket type selection (Straight port or R port)
- Non-damaging to pipe materials during expansion process
| Pipe Expand Range (Outer Diameter) | Φ 20-630mm |
| Belling Type | R Type & U Type |
| Used Oil Label | No. 40/Hydraulic Oil |
| Quantity of Heater | 2 |
| Highest Temperature in Heater | 280°C |
| Gas Pressure | 0.6~0.8Mpa |
| Water Pressure | 0.2~0.3Mpa |
| Pipe Length | 3-6m |
| Center Height | 900mm ± 50mm |
| Machine Dimensions | 8615*3125*2500mm |
After machine completion and before delivery, we notify customers to check trial operations. Upon machine arrival at customer's factory, we provide engineer support for installation, machine debugging, and worker training as needed.
ZHANGJIAGANG LANGBO MACHINERY CO., LTD is located in Zhangjiagang city, conveniently accessible within 2 hours from Shanghai and 40 minutes from WUXI airport. With over 20 years of experience, we specialize in plastic machinery including washing recycling machines, granulating machines, pipe extrusion machines, and related auxiliary equipment. We provide high-quality machines at competitive prices with comprehensive after-sales service.
