Crushing Waste Plastic Recycling Pelletizing Machine

1 SET
MOQ
USD, EUR
Price
Crushing Waste Plastic Recycling Pelletizing Machine
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
RAW MATERIAL: PP/PE RIGID & FILM WASTES
Machine Material: Stainless Steel Or Carbon Steel
OPERATION: AUTOMATIC
Function: Crushing, Washing, Drying And Granulating
CRUSHING WAY: CRUSHER
DRYING WATER: SQUEEZING DRYER
Highlight:

plastic reprocessing machine

,

plastic waste recycling machine
Basic Infomation
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE, ISO
Model Number: LB
Payment & Shipping Terms
Packaging Details: STANDARD PACKAGE
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C,T/T
Supply Ability: 10 SETS PER MONTH
Product Description

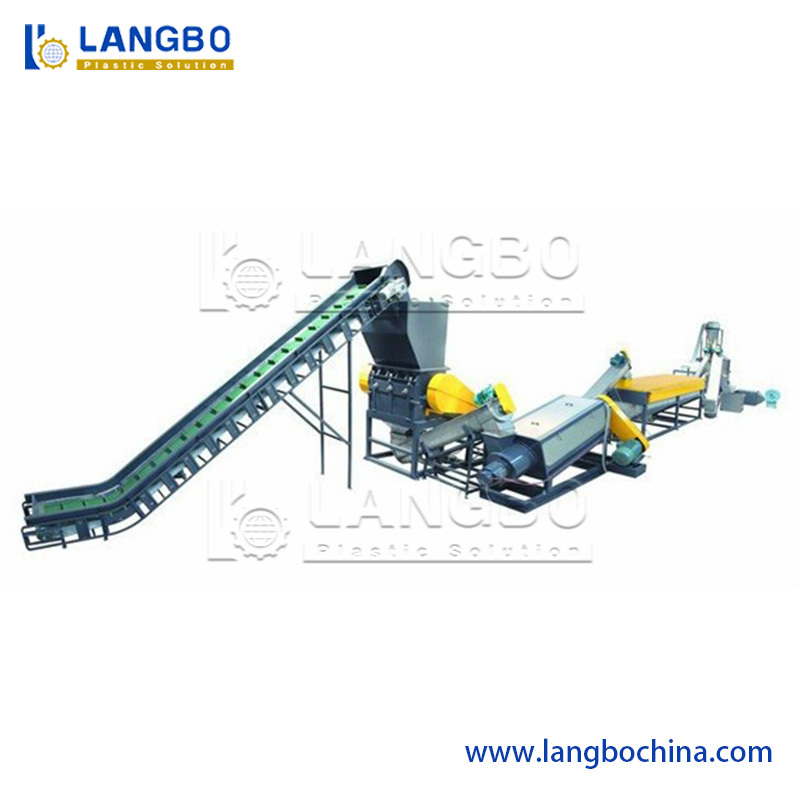

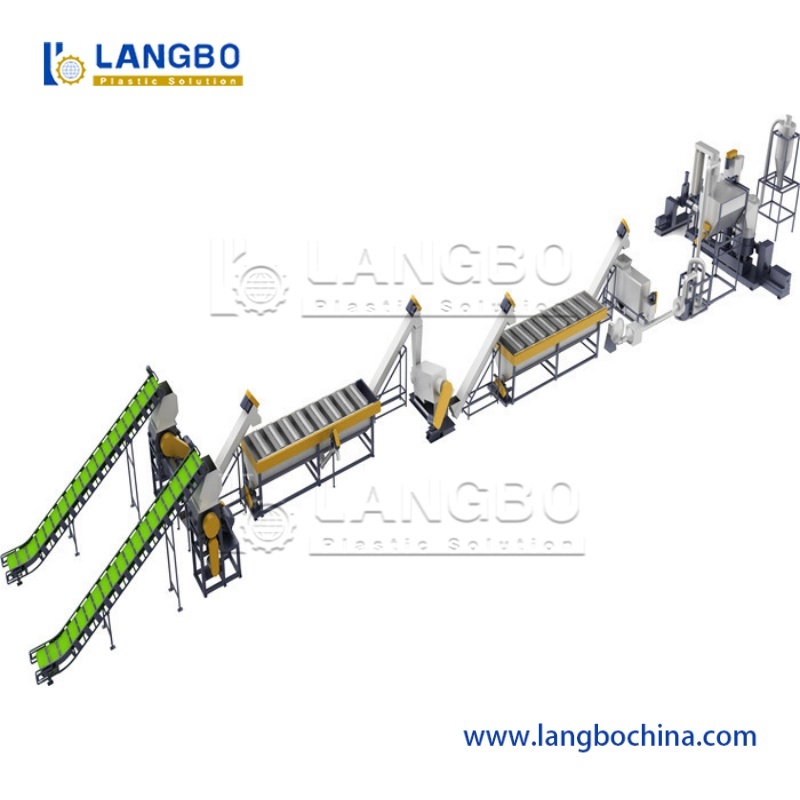

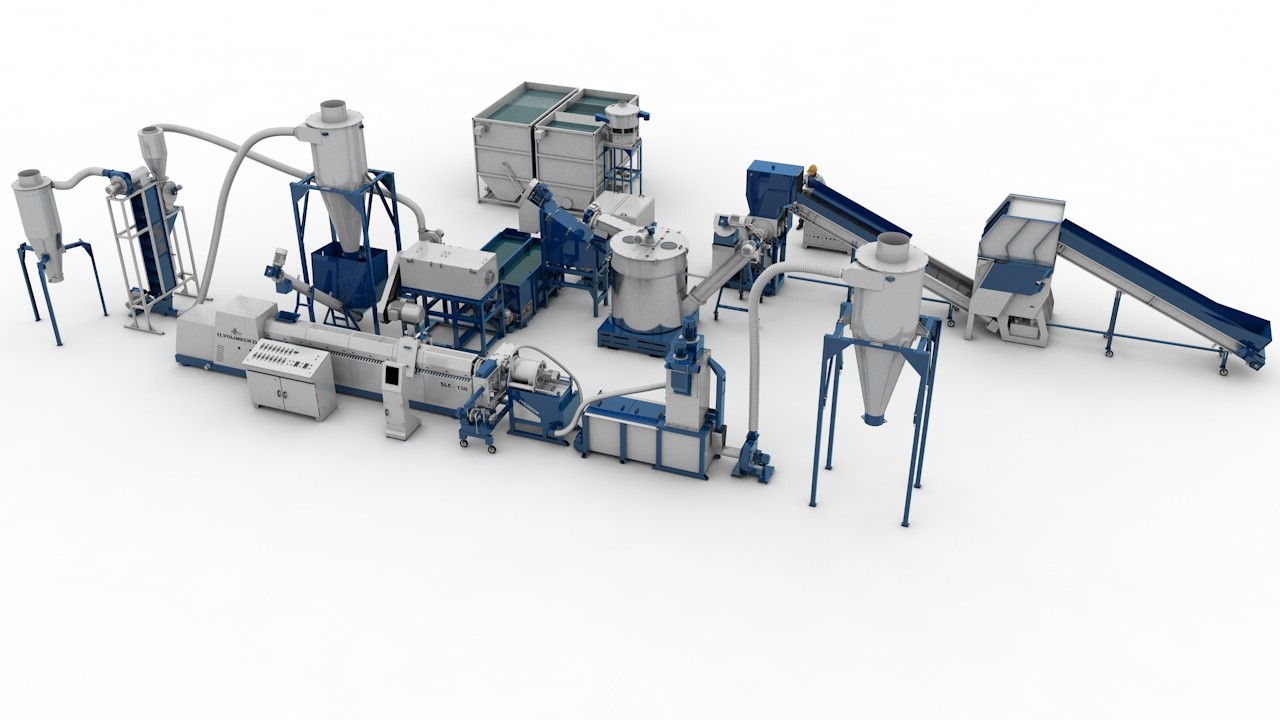

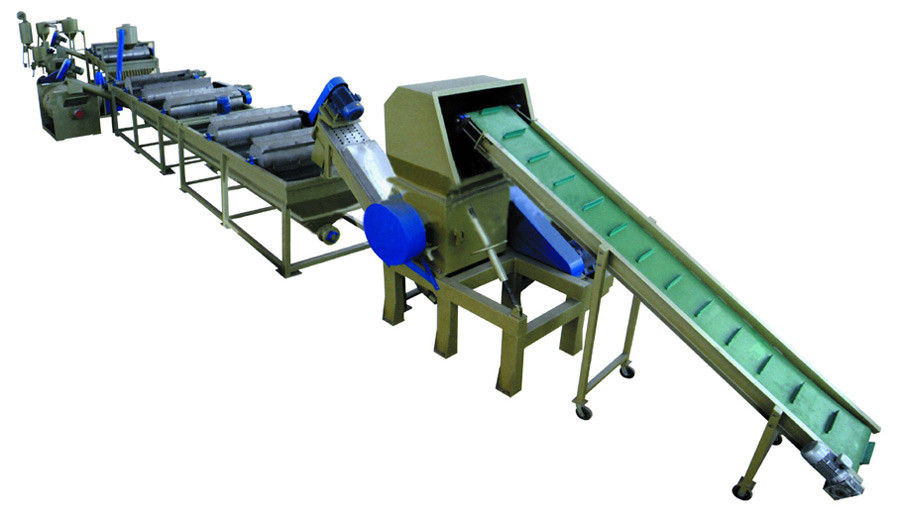

Crushing Waste Plastic Recycling Pelletizing Machine
Waste PP Woven Bags PE Films Plastic Recycling Granulating System
This comprehensive plastic recycling system integrates crushing, washing, drying, and granulating functions to transform waste PP woven bags and PE films into high-quality PE/PP granules. The complete line processes materials with washing capacity of 300-1000kg/h and granulating capacity up to 500kg/h per unit.

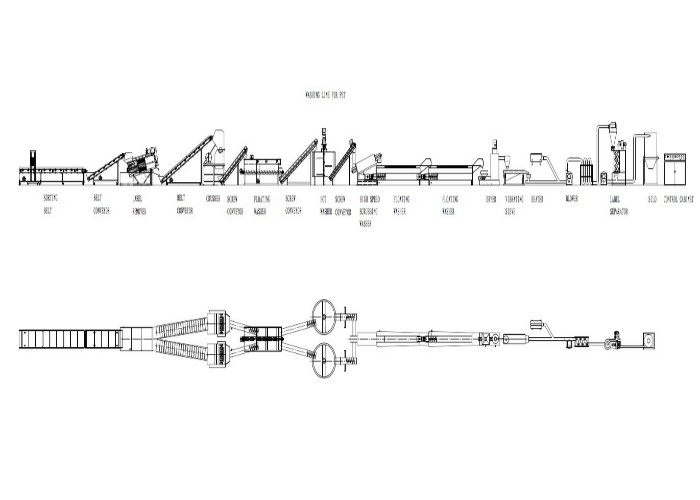

Production Process Flow
  • Belt Conveyor - Material feeding system
  • Plastic Crusher - Size reduction of waste materials
  • Friction Washing & Dewatering Machine - Initial cleaning and water removal
  • Screw Feeder - Material transfer system
  • Rinsing Washer - Multi-stage cleaning process
  • High Speed Friction Washer - Intensive cleaning action
  • Horizontal Dewatering Machine - Moisture extraction
  • PE PP Two-Stage Extruder - Pellet formation
  • Final Hopper - Granule collection
Key Equipment Functions
  • Screw Feeding Conveyor: Transports waste PET/PP materials to crusher
  • Crusher: Reduces waste PET/PP materials to manageable flakes
  • Flotation Rinsing Unit: Separates bottle caps and impurities from crushed flakes
  • Hot Washing Tanks (2 units): Thoroughly cleans PET/PP flakes
  • High Speed Scrubbing Washer: Removes remaining surface impurities
  • Floating Tank: Secondary separation of caps and contaminants
  • Electric Heating Drying Unit: Efficient moisture removal from flakes
System Advantages
  • High Capacity: 600kg/h to 3000kg/h processing capability
  • Centralized Control: Complete line operation via control cabinet
  • Labor Efficient: Requires only 1-4 operators with manual power saving
  • Durable Construction: Thickened carbon steel/stainless steel for wear resistance
  • Dynamic Balance: Vibration-free operation during processing
  • Stable Performance: Continuous operation capability
  • Double Painting: Anti-rust interior coating with exterior protection
  • Complete Equipment: Includes motor, V-belt, start switch, and protective covers
  • Technical Support: On-site engineer assistance available
  • Multi-functional: Processes PET, PP, PE, HDPE, LDPE, ABS and other materials
Advanced Features
Friction Washing Dewatering Machine
Positioned after crusher, this unit performs friction washing while simultaneously removing dirty water, preventing contamination of downstream equipment.
Rinsing Washing Tank
Double V-bottom design provides deeper volume capacity for superior rinsing and washing performance compared to conventional models.
High Speed Friction Washer
Three-zone design featuring sewage water dewatering, clean water friction washing, and friction dewatering sections with screen cleaning and large maintenance access.
PE PP Film Squeezing Pelletizing Machine
Produces popcorn-like final product with moisture content of 1-2%, ensuring optimal material feeding and extruder capacity performance.
