Product Details:
|
| Name: | PE Pipe Extrusion Line | Application: | Pipe Making |
|---|---|---|---|
| Plastic Process: | PE | Motor: | Siemens |
| Range Of Diameter: | 16-1000mm | Warranty: | One Year |
| Screw Design: | Single-screw | Certification: | CE,ISO |
| Voltage: | 380V 50HZ 3Phase(Customized) | Automatic Grade: | Full-automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Warranty: | 1 Year |
| Color: | Customised | Control: | PLC+Touch Screen |
| High Light: | hdpe pipe production line,plastic pipe extrusion machine |
||
High Capacity Plastic HDPE / PPR / PE Pipe Extrusion Line 1200 Kg / H Output
Features:
• First class pipe die was designed with many years experience
• Perfect twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.

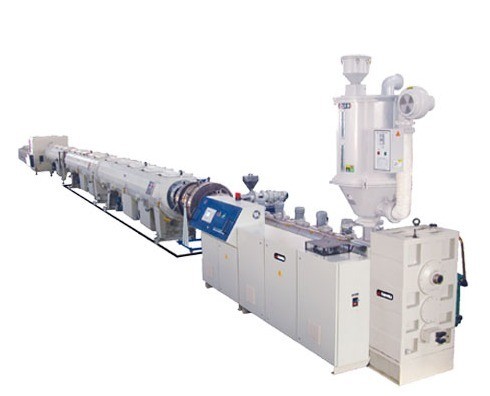

Consist For Full Production Line:

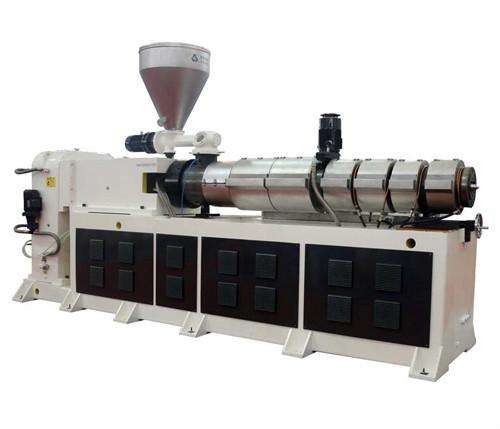

A. Single screw extruder
B. PPR/PE/PP pipe extrusion mould
C. Vacuum shaping platform
D. Haul off machine
E. Cutting machine
F. Stacker
After-sale service& Technology support:
• To install products and test products freely for customers.
• To provide the formulas and technologies of relevant products and the information of chemical
materials manufactories.
• To direct technology aspect of relevant use according to customers’ requirements
• To provide technical training for clients’ employees.
• To be responsible for maintenance service, door-to-door service under the necessary circumstance.
Main technical parameter:
| type | pipe range(mm) | Max. output(kg/h) | total power(kw) | L*W*H(m) |
| PE-250 | 110-250 | 350 | 230 | 44*2.5*3 |
| PE-400 | 160-400 | 600 | 400 | 45*3*3.5 |
| PE-630 | 315-630 | 800 | 490 | 56*3*3.5 |
| PE-800 | 500-800 | 1000 | 650 | 58*3.5*3.5 |
| PE-1000 | 630-1000 | 1200 | 760 | 62*3.5*3.5 |
| PE-1400 | 800-1400 | 1500 | 820 | 67*4*4 |
