Single Screw Plastic Tube Making Machine , Customized PE Pipe Extrusion Line
Product Details
| Name: | PE Pipe Extrusion Line | Application: | Pipe Making |
|---|---|---|---|
| Plastic Process: | PE | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | 380V 50HZ 3Phase(Customized) |
| Automatic Grade: | Full-automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
| Warranty: | 1 Year | Color: | Customised |
| Control: | PLC+Touch Screen | Pipe Diameter: | 16mm-1200mm |
| Highlight |
hdpe pipe production line,plastic pipe extrusion machine |
||
Product Description
Single Screw Plastic Tube Making Machine , Customized Pe Extruder Pipe Production Machine
Application description:

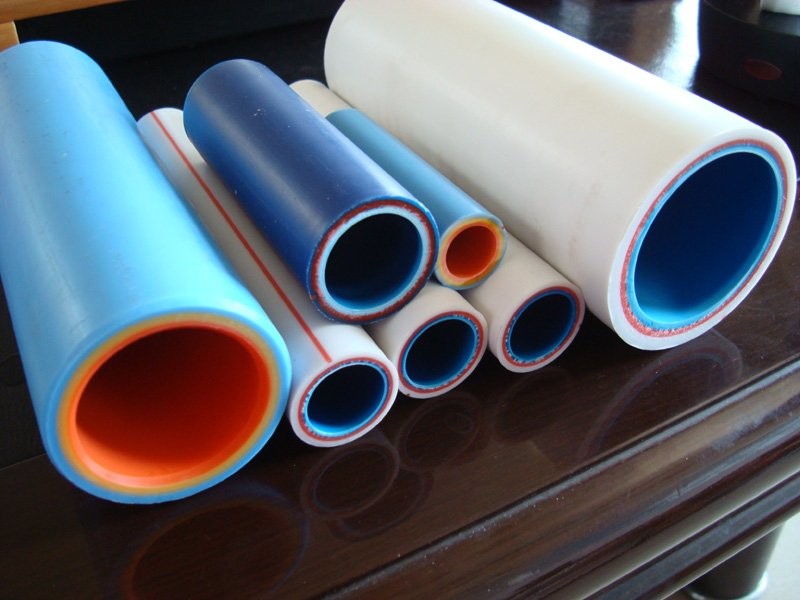

PE pipe extrusion lines are applied for manufacturing PE pipes with different pressure classes needed in field of petrol gas, agriculture, architecture, telecom communication, etc.
Process:

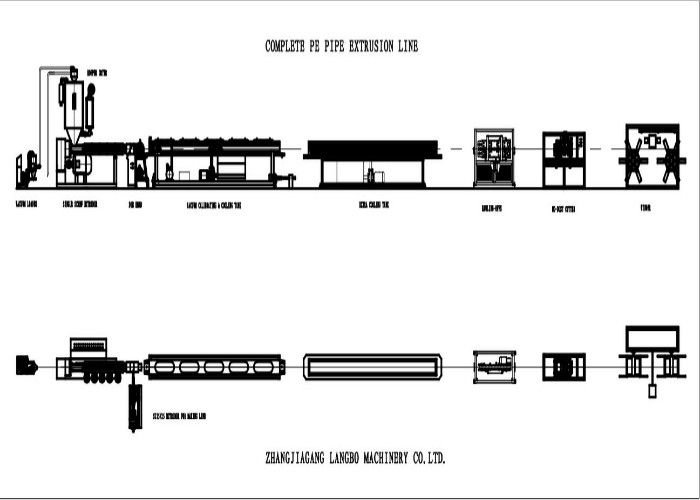

Material Hopper Dryer and Auto charger → PE pipe extruder → mould forming→ vacuum calibration tank → spray cooling water tank → printer → haul-off → cutter → pipe discharging rack
Components & Features:

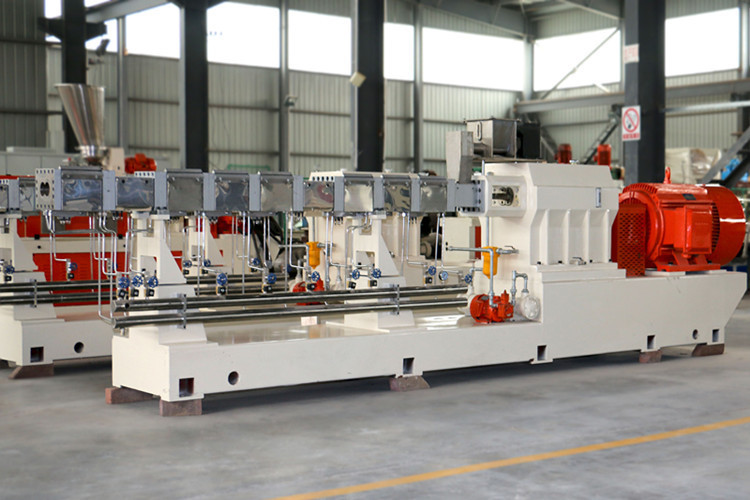

Single screw extruder is a piece of professional equipment to extrude the material of polyethene. Equipped with different die head, downstream equipment, it can be applied for manufacturing of polyolefin pipe, panel, sheet, film, yarn and pelletizing, etc. It consists of the following items:
- Driving motor: equipped with a famous brand motor as driving source.
- Gearbox: equipped with a famous brand gearbox to ensure the maximum output of power
- Screw & barrel: both the screw and barrel adapted the designing of combined of independent teeth and mixing components together for screw and the feeding groove and longer feeding section together for barrel to get the optimizing plasticizing and capacity.
- Control system: equipped with famous brand electrical components ensure to get accurate control

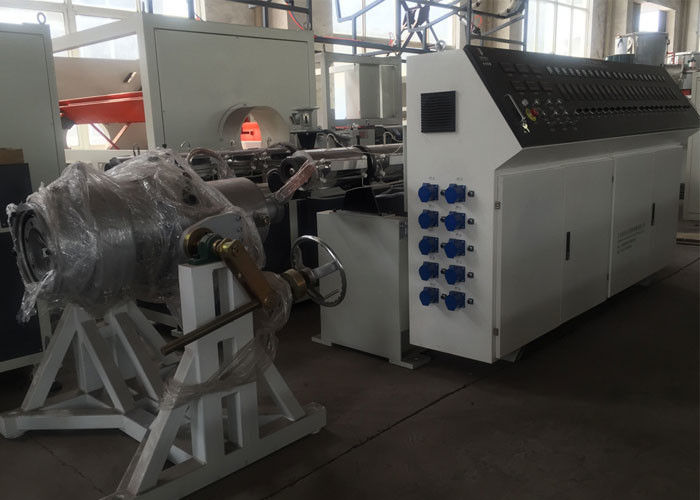

The complete extrusion consists of following items:
- Single screw extruder
- Die head
- Vacuum tank: due to diameter, it can be designing of single, double vacuum chamber
- Cooling tank: due to diameter, the numbers of cooling tank can be one, two or three
- Haul-offs: due to diameter, it can be designing of double, three, four, six, eight, ten, twelve s
- Cutter: due to diameter, it can be designing of no-scraps cutter or planetary cutter
- Coiler/Tipping chute
Main Technical Data:
| Pipe ranger (mm) | Extruder | Max.output(kg/h) | Max.hauling speed(m/min.) | Extruder powder (KW) |
| 20-63 | SJ65/33 | 150 | 12 | 55 |
| 20-110 | SJ65/33 | 180 | 10 | 75 |
| 75-160 | SJ75/33 | 350 | 8 | 110 |
| 90-250 | SJ75/33 | 350 | 5 | 110 |
| 110-315 | SJ90/33 | 450 | 3 | 160 |
| 160-450 | SJ90/33 | 450 | 2 | 160 |
| 315-630 | SJ120/33 | 850 | 1.6 | 280 |
Our Advantages:
- Our high-speed extruder has such characteristic, high speed, high efficiency, and stable. The design is special, high-efficiency five-part form structure screw, can maximum assure the material plasticization, disperse, and can assure high speed and stable production of pipe.
- Our production line be equipped with innovative screw stride mould, this mould effective overcomes instantaneous fluctuation of extrusion pressure. Achieve stable extrusion of materials at high speed and constant pressure.
- Our production line mainly adopts the programmable control system controls the entire line, effectively improve the entire line synchronism and operability. It can save time, manpower, and can help the administrator to know the machine well.
- Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts. High-pressure double crank to control. The die opening and closing. Running in a high automatization and intellectualization, no pollution. Apply a linker to connect with the air conveyor, which can directly inline with filling machine.
