Product Details:
|
| Name: | PE Pipe Extrusion Line | Application: | Pipe Making |
|---|---|---|---|
| Plastic Process: | PE | Motor: | Siemens |
| Warranty: | 12 Month | Control: | PLC |
| Final Product: | Pipes | Screw Design: | Single-screw |
| Certification: | CE,ISO | Voltage: | 380V 50HZ 3Phase(Customized) |
| Automatic Grade: | Full-automatic | Plastic Processed: | HDPE/PP /PE/PPR |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Warranty: | 1 Year |
| Color: | Customised | Control: | PLC+Touch Screen |
| Highlight: | Drainage pe pipe extrusion machine,single layer pe pipe extrusion machine,Drainage hdpe pipe production line |
||

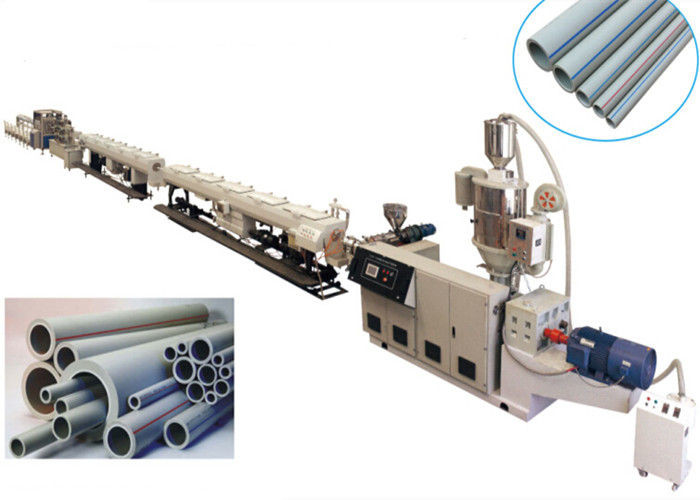

Drainage PE Pipe Extrusion Line / Hdpe Pipe Extrusion Machine Low Energy Consumption
Features:
• First class pipe die was designed with many years experience
• Perfect twin pipe vacuum sizing system;
• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;
• Optional length set and accurate adaption stacker.
Parameters:
| Pipe diameter | 16-63 | 32-125 | 75-250 | 110-450 | 160-500 | 250-630 | 315-800 | 450-1000 | 630-1200 | 710-1400 | 1000-1600 | 1400-2000 | ||
| Master | 45/33 | 75/33 | 60/33 | 75/33 | 90/33 | 90/33 | 120/33 | 120/33 | 150/33 | 150/33 | 150/33 | 150/33 | 150/33 | 120/33*2 |
| Mould | single out |
Double |
single out | single out | single out | single out | single out | single out | single out | single out | single out | single out | single out | single out |
| Auciliary | LG63 | LG63 | LG125 | LG250 | LG450 | LG500 | LG500 | LG630 | LG800 | LG100 | LG1200 | LG1400 | LG1600 | LG2000 |
| Total power | 70 | 125 | 150 | 230 | 380 | 380 | 550 | 550 | 800 | 800 | 1000 | 1100 | 1200 | 1300 |
Advanteges:
1. Mainly for the production of agricultural water supply and drainage construction drainage laying cable etc
2. Single screw extruder and tractor adopts imported ac variable frequency speed regulating device, vacuum
pump and the traction motor adopts the high quality products.
3. Tractor has two claws Three jaw Four claws Six claw Eight claw ten feet Twelve feet drawing method, etc
4. Can choose a chipless cutting saw blade cutting or planetary cutting, performance reliable high production
efficiency.
5. Can according to user requirements, equipped with special devices after production wall spiral pipe wall
hollow tubes and the core layer foam pipe unit replacement extruder.
6. Can produce PP PE ABS PPR PEX silicon core pipe and other pipe materials.
7. Planetary cutting machine adopts fully automatic CNC, is convenient to operate, reliable performance,
reached the international leading level
