Product Details:
|
| Name: | PE Pipe Extrusion Line | Application: | Pipe Making |
|---|---|---|---|
| Plastic Process: | PE | Motor: | Siemens |
| Warranty: | 12 Month | Diameter Range: | 20-630mm |
| Screw Design: | Single-screw | Certification: | CE,ISO |
| Voltage: | 380V 50HZ 3Phase(Customized) | Automatic Grade: | Full-automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Warranty: | 1 Year |
| Color: | Customised | Control: | PLC+Touch Screen |
| Highlight: | hdpe pipe production line,plastic pipe extrusion machine |
||
Single Screw PE Pipe Extrusion Machine , High Capacity Pe Pipe Making Machine
Main technical parameter:
| type | pipe range(mm) | Max. output(kg/h) | total power(kw) | L*W*H(m) |
| PE-250 | 110-250 | 350 | 230 | 44*2.5*3 |
| PE-400 | 160-400 | 600 | 400 | 45*3*3.5 |
| PE-630 | 315-630 | 800 | 490 | 56*3*3.5 |
| PE-800 | 500-800 | 1000 | 650 | 58*3.5*3.5 |
| PE-1000 | 630-1000 | 1200 | 760 | 62*3.5*3.5 |
| PE-1400 | 800-1400 | 1500 | 820 | 67*4*4 |

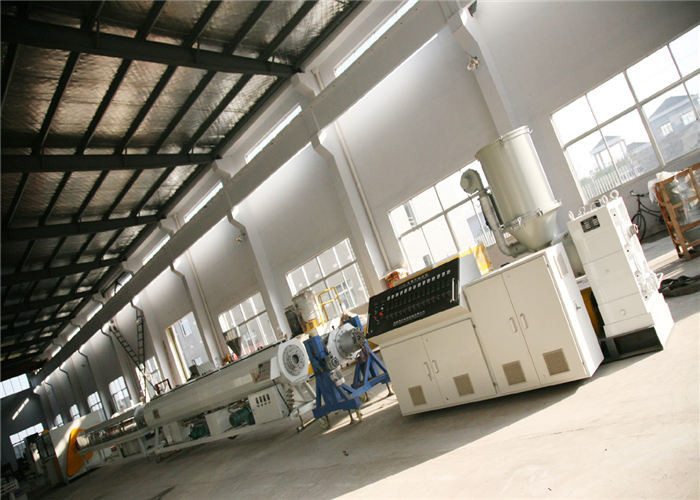

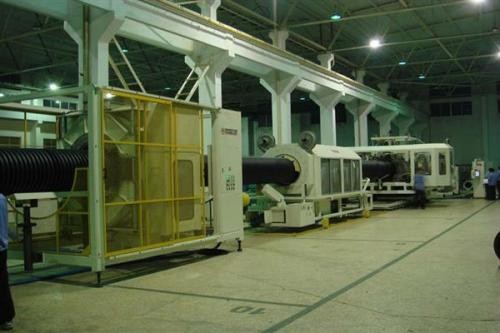

List of PE/HDPE water pipe extrusion machine line:
| NO. | Equipment |
| 1 | Automatic Feeder and Drier |
| 2 | SJ Single Screw Extruder |
| 3 | SJ25×25 Co-Extruder |
| 4 | Mould(including heater and calibrator) |
| 5 | Vacuum Tank |
| 6 | Water Cooling Tank |
| 7 | Haul-off unit |
| 8 | Automatic Cutting machine |
| 9 | Winding machine |

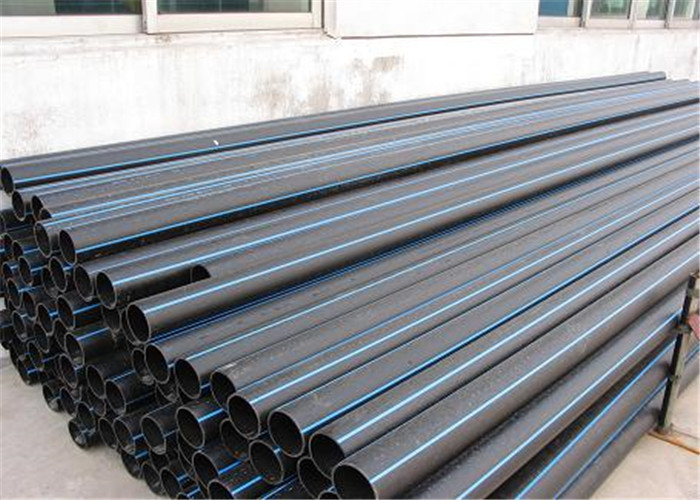

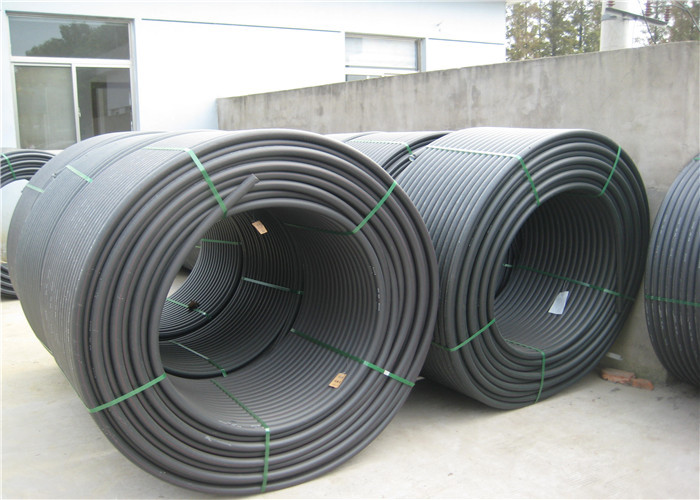

1- This hose pipe making machines are mainly used for producing garden pipes, water supply pipe and
drainage in construction, cable etc.
2- PE possession of medium density polyethylene pipe and high density polyethylene pipe. SDR11 divided
according to the thickness and SDR17.6 series. The former applies to transport gaseous artificial gas, natural
gas, liquefied petroleum gas, which is mainly used to transport natural gas.
