Fully Automatic 380V 50HZ Plastic PVC Profile Extrusion Line Twin Screw Extrusion Machine
Product Details
| Name: | PVC Profile Extrusion Line | Voltage: | 380V 50HZ |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | After-sales Service: | Engineers Availiable To Service |
| Certificate: | CE ISO9001 | Screw Design: | Twin Screw |
| Condition: | New | ||
| Highlight |
pvc marble sheet production line,pvc sheet making machine |
||
Product Description
Fully Automatic 380V 50HZ Plastic PVC Profile Extrusion Line Twin Screw Extrusion Machine
Quick detail:

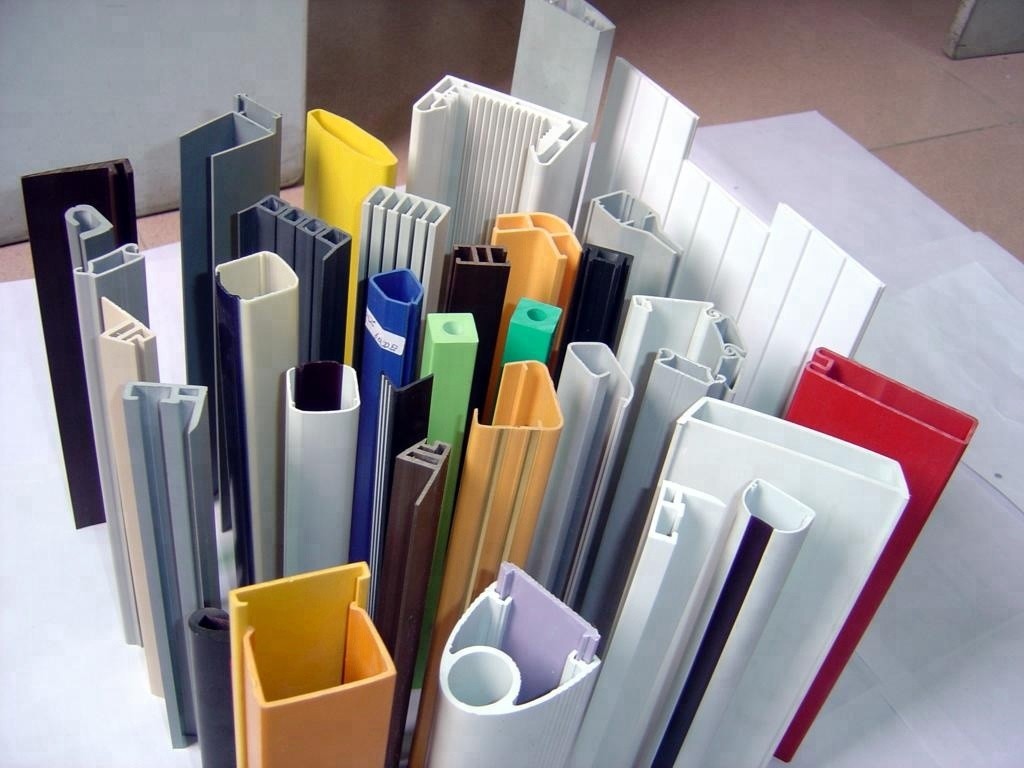

1.The pvc windows line is mainly used for producing various sizes of PVC profiles, pvc cable trunking, ceiling panel, window sill, WPC decking, WPC flooring and other shaped profiles.

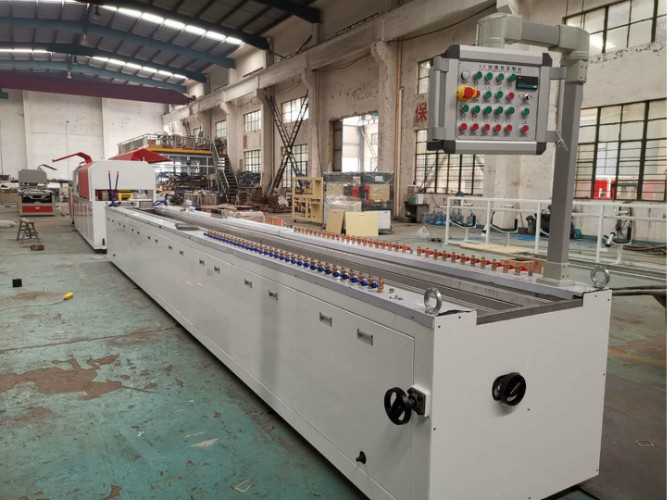

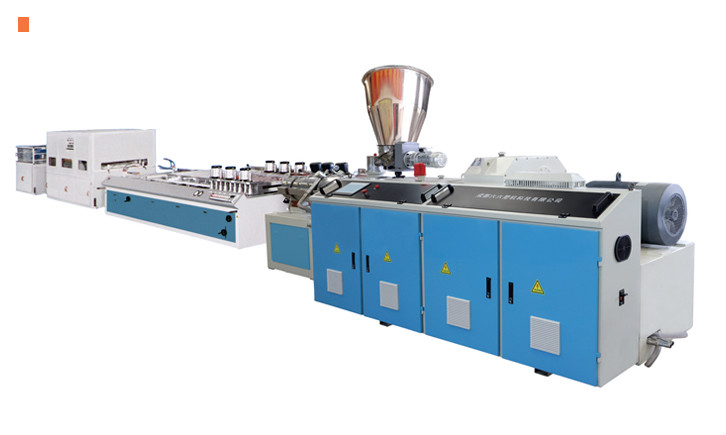

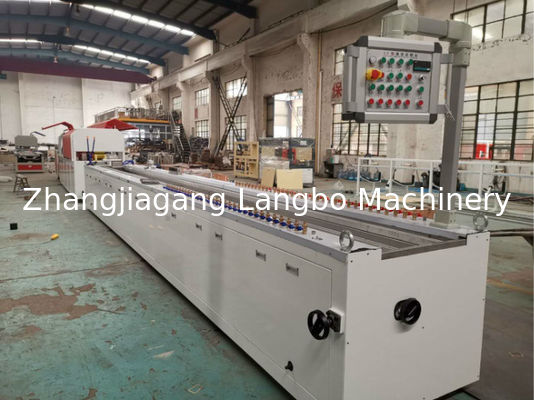

2. Normal pvc windows line is composed of extruder, mould, vacuum calibration table, haul-off and cutter, stacker. With different mould, PVC profile machine can produce PVC products with different shapes, Mould designed by different kinds of profile customer required.
Specification of pvc wpc Profile Machine:
1. Equipment List:
1). Twin screw extruder
2). mold
3). Shaping Machine
4). Haul-off Machine
5). Cutting Machine
6). Stacker
All series of products have property of moisture proof, mildew proof, water resistance, its vibration resistant effect if good. All series of products have property of weathering proof, its luster may remain forever, it is not easy to be ageing. This product is light, storage & transport, construction are rather convenient. This product can be worked with normal tools for wooden material. Drilling, sawing, nail, planing, bonding can be conducted like wooden material. It is suitable for thermal shaping, thermal bending and fold processing. It can be welded, it can also be bonded with other PVC material. The surface of this product is smooth, it can be printed.(Clean the surface before printing.)
Technical Parameters:
| Items | YF180 | YF240 | YF300 | YF600 | YF900 |
| Max.width of board(mm) | 180 | 240 | 300 | 600 | 900 |
| Extruder Model | SJZ55/110 | SJZ65/132 | SJZ80/156 | SJZ92/188 | |
| Mian motor power(KW) | 22 | 37 | 55 | 110 | |
| Drawing height(mm) | 150 | 150 | 150 | 150 | 150 |
| Drawing speed(KN) | 20 | 20 | 20 | 30 | 40 |
| Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 |
| Auxiliary equipment sum power(kw) | 35 | 35 | 30 | 30 | 40 |
| Cooling water consume(m 3 /h) | 6 | 6 | 6 | 9 | 12 |
| Compression air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Our company advantages:
CE ISO9001 Certificate
Excellent pre-sales and after-sales service
High quality and reasonable price
