Product Details:
|
MOQ: | 1SET | Supply Ability: | 100SETS/YEAR |
---|---|---|---|
Warranty: | 12 Months | Model Number: | PE PP Recycling Washing Line |
Oltage: | Variable In Different Capacity | Production Capacity: | 150-3000kg/h |
Highlight: | pet recycling machine,pet plastic recycling machine |

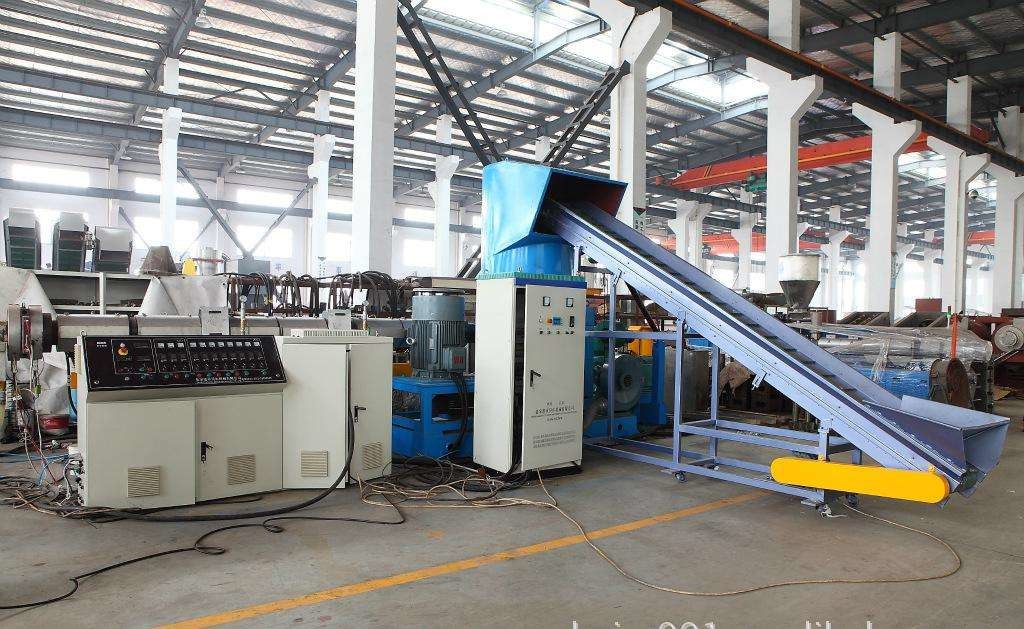

Belt Conveyor PET Recycling Line , Automatic Waste Plastic Recycling Line
Quick Details:
PP, PE films/bags recycling washing line description:
This waste plastic recycling and granulation machine is researched, designed and manufactured by our
company, integration of Europe technology, it has features as high efficiency, working stable, large capacity
etc.
Application:
Applicable plastic materials for waste plastic recycling and granulation machine: PP, LDPE, LLDPE, HDPE,
BOPP, etc.
Material shapes: Woven bags, printed LDPE film (rolls, loose, bundled), agriculture film, foamed plastics and
raffia, etc.
Note: depending on material property, various downstream equipment are available.
Working Flow:
Plastic film & bag recycling and washing line (1000kg/h):
Belt conveyor*2→Crusher (with water) *2→ Double screw conveyor*2→Film floating washer→Screw
conveyor→High-speed friction machine→Screw conveyor→Horizontal dewatering machine→Drying
system→Transition silo→Drying system→Storage hopper→Control cabinet
Advantages:
1. Final products have good quality. When processing PP PE film bags, final products humidity below 5%.
2. The whole line capacity between 150kg/h-2000kg/h (150kg/h, 300kg/h, 500kg/h, 1000kg/h, 2000kg/h)
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service lift time
4. World famous brand components applied on the production line- SKF bearing, Siemens contactor, Omron
temperature, FUJI invertor, Siemens PLC control, etc.
5. The whole production line with CE certification, ISO9001 certification.
Plastic PP PE film/bag recycling washing line main components(1000kg): | |
Name: | Power: |
Belt conveyor | 2.2kw |
Crusher | 55kw |
Screw conveyor | 3kw |
Belt conveyor | 2.2kw |
Crusher | 55kw |
Screw conveyor | 3kw |
Floating washer | 3kw+3kw+3kw |
Screw conveyor | 5.5kw |
High speed friction machine | 45kw |
Screw conveyor | 5.5kw |
Horizontal dewatering machine | 110kw +1.5kw |
Drying system-1 | 48kw+11kw |
Transition storage hopper | |
Drying system-2 | 36kw+11kw |
Storage hopper | 1.5kw+1.5kw |
Control cabinet |
SJ series plastic film/bag granulating line/ pelletizing machine:
SJ series single-stage pe pp film granulator machine(with side feeder) | ||||||
Model | SJ-65 | SJ-80 | SJ-100 | SJ-120 | SJ-150 | SJ-200 |
Screw Dia. | 65 | 80 | 100 | 120 | 150 | 200 |
L/D | 28-30 | 28-30 | 28-30 | 28-30 | 28-30 | 28-30 |
Capacity | 60-80kg/h | 80-100kg/h | 150kg/h | 300kg/h | 400kg/h | 500kg/h |
SJ series double-stage pe pp film granulator machine(with side feeder) | ||||
Model | SJ-100/100 | SJ-120/120 | SJ-150/150 | SJ-200/200 |
Screw Dia. | 100 | 120 | 150 | 200 |
L/D |
28-30 10-15 |
28-30 10-15 |
28-30 10-15 |
28-30 10-15 |
Capacity | 120-180kg/h | 220-300kg/h | 300-400kg/h | 500-600kg/h |
ML Series plastic film/bag compactor granulator line/pelletizing machine
ML series single-stage pe pp film compactor-granulator machine(with agglomerator) | |||||
Model | ML-85 | ML-100 | ML-130 | ML-160 | ML-180 |
Screw Dia. (mm) | 85 | 100 | 130 | 160 | 180 |
L/D Ratio | 25-42 | 25-42 | 25-33 | 25-33 | 25-33 |
Output (kg/hr) | 120-180 | 250-350 | 400-500 | 550-700 | 800-1000 |
ML series double-stage pe pp film compactor-granulator machine(with agglomerator) | |||||
Model | ML-85/85 | ML-100/100 | ML-130/130 | ML-160/160 | ML-180/180 |
Screw Dia. (mm) | 85 | 100 | 130 | 160 | 180 |
L/D Ratio | 25-42 | 25-42 | 25-33 | 25-33 | 25-33 |
Output (kg/hr) | 120-180 | 250-350 | 400-500 | 550-700 | 800-1000 |
For choosing the suitable machine and saving your time, please read these bellow guides carefully:
1. What material do you want to process/recycle? PE/PP film? PE/PP rigid plastic flake? PET flake? or other
plastic?
2. What capacity (kg/h) do you want?
3. What is the electric device you need ? Siemens, Omron or domestic ? and your power standard?
4. When (Times for delivery) do you want the machine?
5. Other requirements about the plastic scrap recycle equipment you want.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customers to build the f
factory.
3. we will provide good service for machine installation and training until the customers can run the machines
and make stably production.
4. Except one-year quality guarantee, we will provide after-sell service for all the life.
5. for long-term cooperation, we always provide good quality, good price and good service to customer.
FAQ
1- How to choose proper products you want?
• Please tell us in detail what you want?
• What’s your raw material it is?
• What’s the final product you want to produce?
• What capacity you want it performance?
2- How to control the quality?
• We have technical, engineer team design the sample machinery before entering into market
• Production QC team ensure the machine manufacturing quality
• We will running every machine after finished before shipment
• Optional choose by a client running the machinery by material
