Product Details:
|
| Type: | Double Stage | Capacity: | 300kgh |
|---|---|---|---|
| Color: | White | Motor: | 90kw |
| Power Supply: | 380v | Packaging Details: | PE Film Wrap |
| Highlight: | plastic pellets making machine,waste plastic recycling pelletizing machine |
||

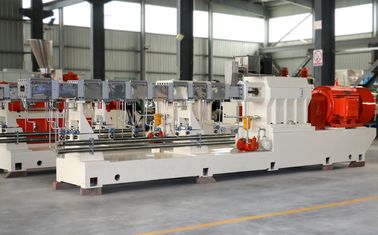

Double Stage Pvc Plastic Pelletizing Machine , 380v 90kw Granules Making Machine
CE approved waste plastic recycling and plastic pelletizing machine
These plastic recycling machines may regenerate polyethylene, polypropylene, polyvinyl chloride, PE, PP, PVC,
PET, ABS, PS,etc
PP recycling produce particle double- screw making machine
which produced by Plastic Industry Co.,Ltd,within the Europe technical ,and Hydraulic automatic changer
Die,force feeder .
1.These plastic recycling machines may regenerate polyethylene, polypropylene, polyvinyl chloride, PE, , PVC,
PET, ABS, PS (polystyrene foam) and other plastics.
2.The series of plastic recycling machine can be used both in dry and wet conditions and directly process washed
material so as to save place, time and manpower and reduce production cost.
3.Fully automatic production line of waste " independently developed by this company and put into the market in
2003 combines automatic crushing, cleaning, dewatering, conveying, feeding, wiredrawing and grain-cutting. The
whole production line can be operated by only two workers. It is widely used in the treatment system for urban
consumer waste. waste plastics; free training for producing technology of various waste plastics), free installation
and adjustment with home service for all customers within China boundary.
Technology Parameters Table
| SJZ120-F2 | SJZ130-F2 | SJZ140-F2 | SJZ150-F2 | SJZ160-F2 | SJZ180-F2 | SJZ200-F2 | ||
| Diameter φ | 120 | 130 | 140 | 150 | 160 | 180 | 200 | |
| Length mm | 12.5:1 | 12.3:1 | 12.1:1 | 12:1 | 12.5:1 | 12.2:1 | 12.5:1 | |
| Rotation speed r/min | 60-90 | 60-90 | 60-90 | 60-90 | 60-90 | 60-90 | 60-90 | |
| Material | 45# | 45# | 45# | 45# | 45# | 45# | 45# | |
| Number of heated are | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |
| Average heating power KW | 15-25 | 15-25 | 20-30 | 20-30 | 25-30 | 30-35 | 35-40 | |
| Motor power | 15-18.5 | 18.5 | 18.5-22 | 22 | 22-30 | 30-35 | 37 | |
| Air exhaust mode | Single air exhaust | |||||||
| Air exhaust mode | Single air exhaust | |||||||
| Diameter φ | 100 | 110 | 110 | 120 | 120 | 130 | 130 | |
| L/D mm | 8:1 | 7.2:1 | 7.2:1 | 6.7:1 | 6.7:1 | 6.1:1 | 6.1:1 | |
| Rotation speed r/min | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 | |
| Material | 45# | 45# | 45# | 45# | 45# | 45# | 45# | |
| Number of heated area | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Average heating power KW | 3 | 3 | 6 | 6 | 6 | 6 | 6 | |
| Motor power | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | |
| Mode of changing sieve | manual /electric / | manual /electric / | manual /electric / | manual /electric/ | manual /electric / | manual /electric / | manual /electric / | |
| Configuration of electric tank | / automatic temperature control | |||||||
| Cooling mode | water | water | water | water | water | water | water | |
| Throughput Kg/h | 60-100 | 70-110 | 80-120 | 100-150 | 120-160 | 140-180 | 150-200 | |
| Speed regulation for particle-cut machine KW | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | |
