High Capacity Waste Plastic Recycling Pelletizing Machine With Single Screw
Product Details
| Name: | Waste PE Recycling | Type: | Granulator |
|---|---|---|---|
| Screw Design: | Single | Extruder Number: | One |
| Application: | Plastic Recycling | Raw Material: | PE |
| Highlight |
plastic pellets making machine,waste plastic recycling pelletizing machine |
||
Product Description

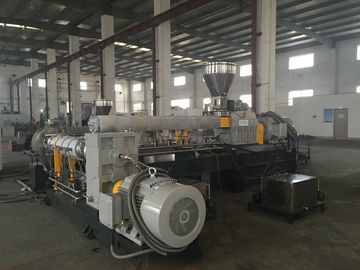

High Capacity Waste Plastic Recycling Pelletizing Machine With Single Screw
1. The line is special equipment for the PE PP film recycling granulating, it equipped with compactoring
machine which could pre- compact the film into smaller granules, then easily feed into screw barrel of extruder,
ensure high capacity and save labour.
2. It has two vacuum exhuasting mouth on extruder barrel which can fully vent the moisture in the material and
the final granule quality will be very perfect.
3. At the end of screw barrel, it equipped with double post fast speed hydraulic non -stop screen changer
which can effetively filt out the dirty in the plastic melt.
4. The pelletizing adopts water flush pelletizing which is easier to operate, and the shape and appearance of
granule is good.
Main Technical Parameters:
| Model | L/D | Output | Speed of Screw Rotation | Power | Center Height |
|
SJ-50/33 |
33:1 | 20-80 kg/h | 12.5-130 r/min | 37kw | 1000 mm |
| SJ-65/33 | 33:1 | 80-150 kg/h | 33-130 r/min 20-120r/min | 45kw 55kw | 1000 mm |
|
SJ-75/33 |
33:1 | 120-280 kg/h | 20-120 r/min | 75kw 90kw | 1000 mm |
|
SJ-90/33 |
33:1 | 150-450 kg/h | 33.3-110 r/min | 110kw 160kw | 1000 mm |
|
SJ-120/33 |
33:1 | 300-600 kg/h | 20-100 r/min | 260kw | 1200 mm |
|
SJ-150/33 |
33:1 | 450-700 kg/h | 7-80 r/min | 315kw | 1200 mm |
