Double Screw Hot Cutting Pvc Pelletizing Machine , Plastic Pelletizing Equipment 60KW
Product Details
| Application: | Hot Cutting Of PVC And Other Plastic | Capacity: | 200-500KG/h |
|---|---|---|---|
| Voltage: | 380v/50hz | Power: | 60KW |
| Plastic Processed: | PET, PP, PA6, PE, ABS, PVC | Screw Design: | Double Screw |
| Highlight |
plastic pellets making machine,waste plastic recycling pelletizing machine |
||
Product Description

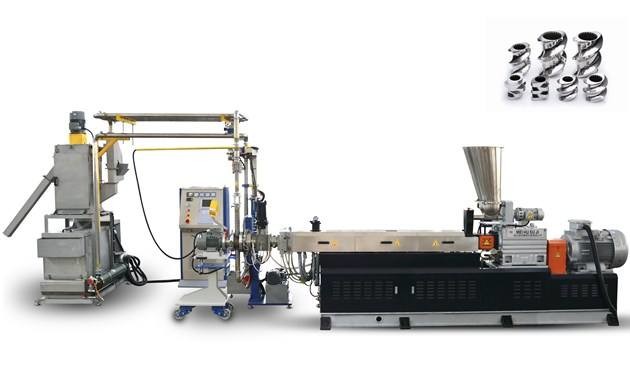

Double Screw Hot Cutting Pvc Pelletizing Machine , Plastic Pelletizing Equipment 60KW
QUICK DETAIL:
Condition: new
Screw design: double screw
Power: 60KW
Voltage : 380v/50hz
Weight: 9T
Screw model: SJSZ51/105 sjsz 65/132 sjsz80/156
Capacity: 200-500KG/h
Production method : hot-cutting
Temperature controller: RKC
Frequency inverter: ABB
Warranty: 1year
Description:
PVC powder → Plastic mixer→ Plastic extruder→ extrusion mould→ Pelletizer →air
cooling system →vibrating sieve(optional)→Storage Bin.
1. This machine unit is a complete pelletizing unit consists of series single screw extruder or conical twin
screw extruder and the corresponding down stream machines. The production line is mainly used to
produce granules of various applications of such plastic materials as the PET, PP, PA6, PE, ABS, PVC, etc;
the granules are of uniform sizes, good density and good looking appearance
2. The production line has the advantages of good plasticization, even mixing and compact structure; the
auxiliary machine is of fan sending type collection, vibration separation and cooling, or strand cutting in the
stainless water tank. The machines are of high automation and production efficiency.
Applications:
PVC Hot-cut Granulation Line is mainly used in hot cutting of PVC and other plastic
Specifications:
| Model | Screw spec. mm |
Granule spec. mm |
Drive power KW |
Cooling mode | Output Kg/h |
| SJZ55/110 | 55/110 | Ø 3- Ø 4 | 22 | Cooling by fan | 100-120 |
| SJZ65/132 | 65/132 | Ø 3- Ø 4 | 37 | Cooling by fan | 220-260 |
| SJZ80/156 | 80/156 | Ø 3- Ø 4 | 55 | Cooling by fan | 320-450 |
| SJZ92/188 | 92/188 | Ø 3- Ø 4 | 110 | Cooling by fan | 650-800 |
Competitive Advantage:
1. hot-cutting
2. suitable for PVC, PE material, ect.
3. CE
4. lower cost
