Double Stage Plastic Pelletizing Machine 380v 90kw Pvc Pelletizing Line
Product Details
| Power Supply: | 380v | Warranty: | One Year |
|---|---|---|---|
| Machine Color: | According To Customer's Requirement | Certificate: | CE & ISO9001 |
| Raw Material: | PE | Capacity: | 300kgh |
| Highlight |
plastic pellets making machine,waste plastic recycling pelletizing machine |
||
Product Description
PP PE granulating line could be single-stage strand pelletizing, single-stage water-ring pelletizing, double-
stage strand pelletizing, double-stage water-ring pelletizing. It can be applied to PP PE film, PP PE lumps with
different purity. The screw of theextruder has exhaust system, venting the moisture; The die head is equipped
hydraulic screen exchanger to filter the impurity easily.
1. This PP PE Film Pelletizing line Granulating Machine line can process recycled PP PE film and turn them
into PP PE granules.
2. The granules are cutted in the water which make the granules smoothly and rounded, which can command
a higher price in the market.
3. It adopts Japanese technology for automatic temperature control.
4. It’s easy to operation, stable working and excellent quality, making it your first choice for plastic recycling.
The customer can select a suitable machine among double segment style, three-segment style, and four-
segment style according to production requirements.
The special design can assure the good compounding effect and more solid pellet.
This kind of pelletizing line is especially suitable for recycling dirty waste and production of repelletizing.
Flow chat PP PE Pellet machine :
--Water ring pelletizing
Conveyor→Film compactor →Single screw extruder→ Die head and hydraulic screen changer →Water ring

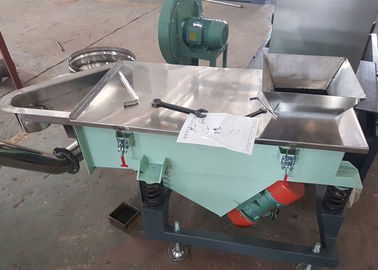

pelletizing→Water tank → Dewatering machine→Vibration sieve→Air blower→Storage silo
General specifications:
| Extruder | SJ85 | SJ100 | SJ120 | SJ150 |
| Screw diameter | 85mm | 100mm | 120mm | 150mm |
| Main motor | 55kw | 90kw | 132kw | 160kw |
| Compactor power | 37kw | 55kw | 75kw | 90kw |
| Capacity | 100-150 kg/h | 200-300 kg/h | 300-400 kg/h | 500-600 kg/h |
Product Highlights
