Product Details:
|
| Name: | PE Granule Extruder | Type: | Recycling |
|---|---|---|---|
| Material Processed: | PE | Screw Design: | Single |
| Extruder Number: | Single | Application: | Granules |
| Highlight: | plastic pellets making machine,waste plastic recycling pelletizing machine |
||

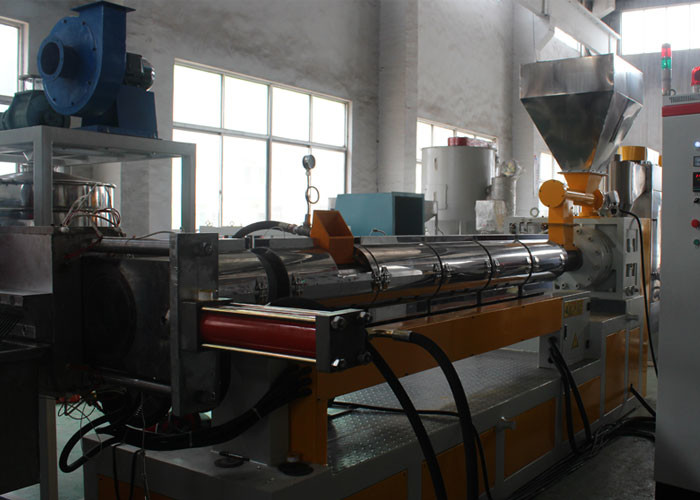

PE Granule Plastic Pelletizing Line Pellet Extrusion Machine / Extruder Capacity
Introduction:
1. The line is special equipment for the PE PP film recycling granulating, it equipped with compactoring
machine which could pre- compact the film into smaller granules, then easily feed into screw barrel of extruder,
ensure high capacity and save labour.
2. It has two vacuum exhuasting mouth on extruder barrel which can fully vent the moisture in the material and
the final granule quality will be very perfect.
3. At the end of screw barrel, it equipped with double post fast speed hydraulic non -stop screen changer
which can effetively filt out the dirty in the plastic melt.

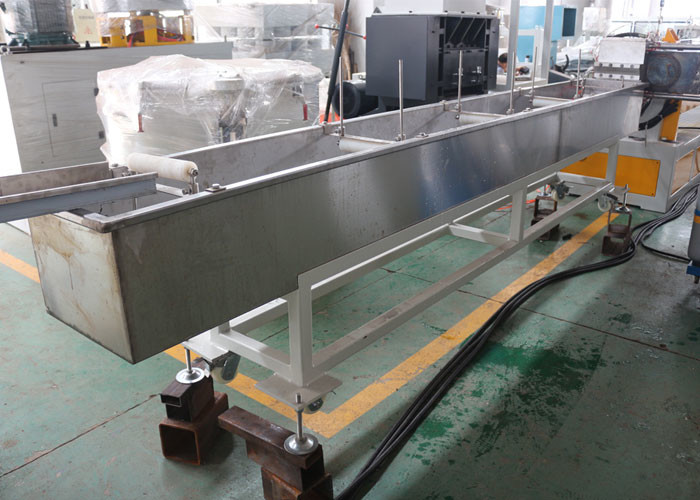

4. The pelletizing adopts water flush pelletizing which is easier to operate, and the shape and appearance of
granule is good.
Application:
Parameters:
| SJ series single stage PE PP film recycling granulating/pelletizing machine | ||||||
| Model | SJ-65 | SJ-80 | SJ-100 | SJ-120 | SJ-150 | SJ-200 |
| Screw Dia. | 65 | 80 | 100 | 120 | 150 | 200 |
| L/D | 28-30 | 28-30 | 28-30 | 28-30 | 28-30 | 28-30 |
| Capacity | 60-80kg/h | 80-100kg/h | 150kg/h | 300kg/h | 400kg/h | 500kg/h |
