Product Details:
|
| Automatic Grade: | Full Automatic | Application: | Board |
|---|---|---|---|
| Plastic Processed: | PVC， WPC | Power: | 75KW |
| Screw Design: | Double Screw | Voltage: | 220v/380v |
| Highlight: | pvc foam board production line,pvc foam board making machine |
||

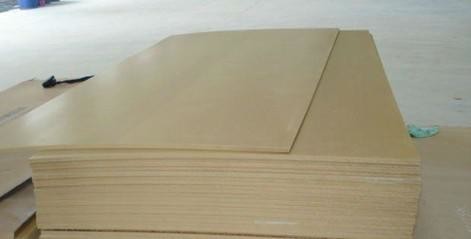

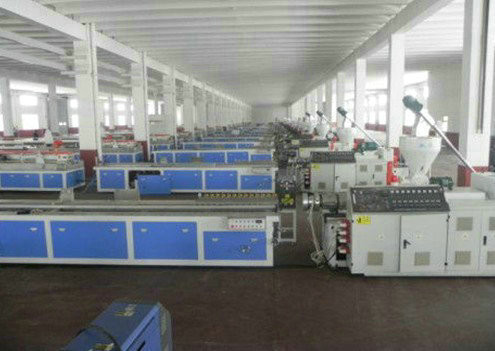

WPC PVC Skirting Plastic Board Extrusion Line , WPC Cabinet Board Production Line
Description:
1. This technology is suitable to produce WPC products at high value with various plastic and natural fiber,
and the material is 90% of waste plastic and waste natural fiber.
2. With scientific and resonable design, the machine works efficiently.
3. With both properties of wood and plastic, the WPC products are of high stiffness and impact
performance. The ratio of performance and price is much higher than that of plastic and wood.
4. The WPC products can be recycled 100%, and are environment-friendly products
| Conical Twin screw extruder | SJSZ-80/156 | equipped with automatic spring feeding machine |
| Electrical control system |
1). ABB inverter 2). Siemens man-machine interface 3).Siemens modules, Schneider contactor 4).Omron temperature controller |
|
| WPC Mould | SJM-800×15 | |
| Vacuum sizing platform | SZD-6000 | |
| Caterpillar tractor | SLQ-950 | |
| Transverse cutter | SQG-1000 | |
| Conveyor | SXS-4000 | |
| High speed cooling mixer | SHRL300/600 | |
| Plastic crusher | SWP-450 | multi-blade crusher |
| milling machine |
Specifications:
| Material | PVC/PE+wood powder, with accessory material |
| Product specification | (825mm ,725mm,625mm)×45mm |
| Production line speed | 0.2-0.5m/min |
| Max. Output: | 380Kg/h |
| Overall dimension | 23×1.6×3 L×W×H(m) |
| Weight | 10T |
| Total power | 185kw |
| Actual power | 115kw |
| Air consumption | 0.4m3/min |
| Air pressure | 0.6mpa |
| Water circulation volume | 0.3m3/min |
| Power | AC380V±10%,50HZ,3P (according to your city;s electricity supply) |
| Water source |
Industrial water, it’s inclusion-free and under filtration treatment, Water pressure: 0.4Mpa , water temperature: 14-25°C |
| Working environment temperature | 0-40°C |
Competitive Advantage:
1.adopts superior foaming screw
2.smooth hard board surface
3.stable operation
