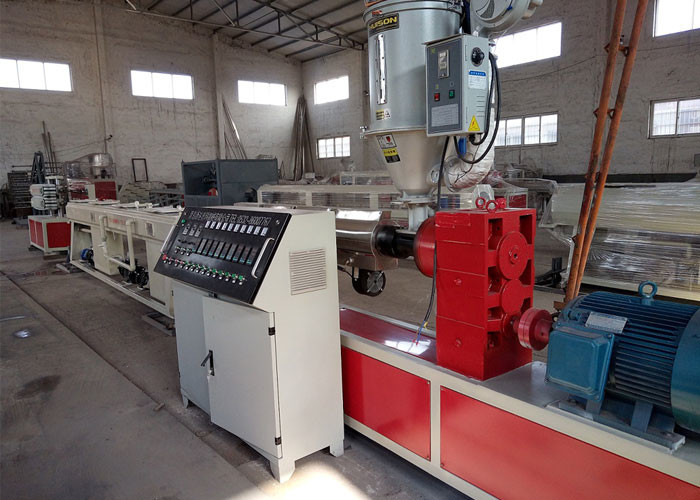

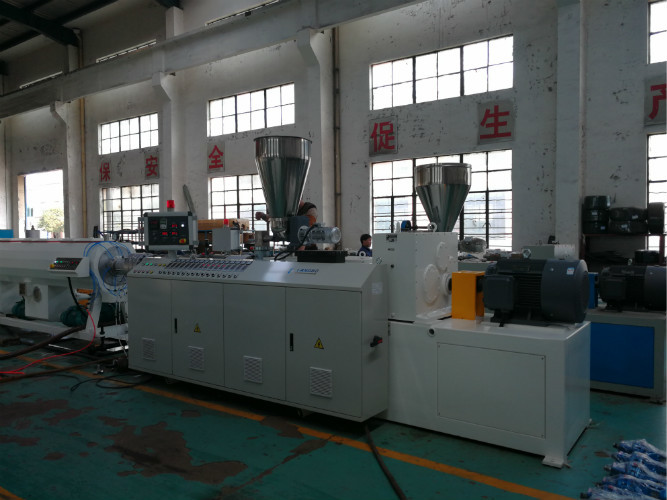

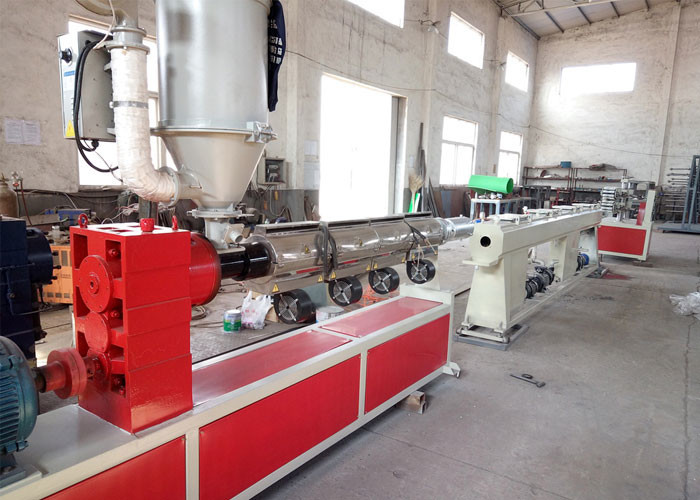

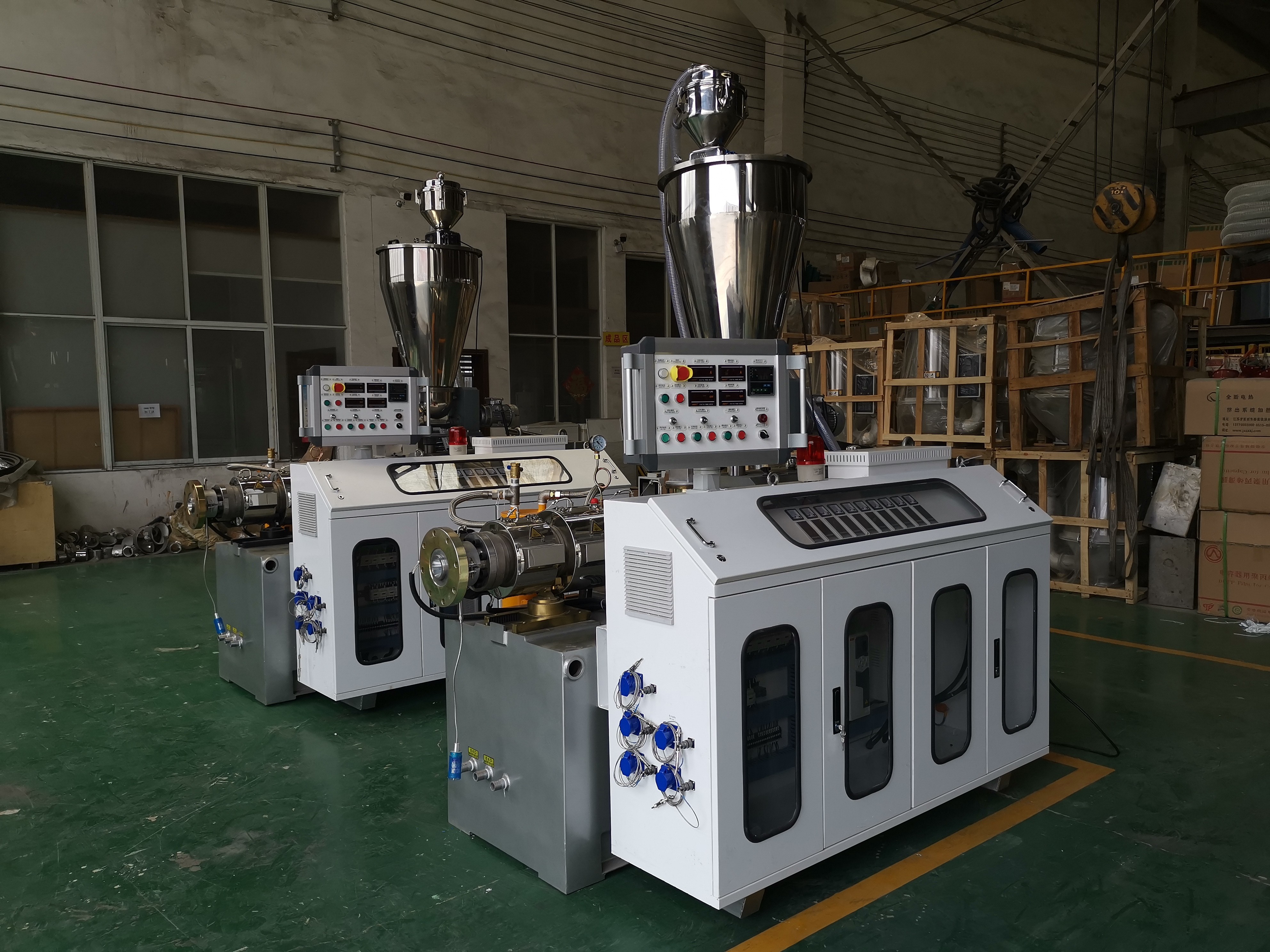

Computer Control PVC Pipe Extrusion Line Twin Screw Tube Making Machine

Computer Control PVC Pipe Extrusion Line Twin Screw Tube Making Machine
Computer Control PVC Pipe Extrusion Line Twin Screw Tube Making Machine Computer Control PVC Pipe Extrusion Line Twin Screw Tube Making Machine Computer Control PVC Pipe Extrusion Line Twin Screw Tube Making Machine Computer Control PVC Pipe Extrusion Line Twin Screw Tube Making Machine

Large Image :  Computer Control PVC Pipe Extrusion Line Twin Screw Tube Making Machine

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE ISO
Model Number: LB-63W
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD EUR
Packaging Details: NORMAL PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

Computer Control PVC Pipe Extrusion Line Twin Screw Tube Making Machine

Description
Name: PVC Pipe Extrusion Line Condition: New
Application: Pipe Making Plastic Process: PVC
Warranty: One Year Automatic Grade: Full Automatic
High Light:

Twin Screw PVC Tube Extrusion line

,

Computer Control Pvc Extrusion line

Computer Control Plastic Pipe Extrusion Machine, Twin Screw Pvc Tube Making





Product Description:

PVC pipe conical twin screw extruder/plastic pipe extruder equipment/double screw extrusion machineSJSZ series conical twin screw stem extruder is composed of barrel screw, gear transmission system,measurable feeding, vacuum deareating, heating, cooling and electric control components ect. It is mainly used in plasticizing, extruding and forming of PVC pipes, plates, sheets, film , profiles, and granules, ect.



Features Specifications:
1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound.With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.

2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.

3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.

4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.

5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.

6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1 degree.



All SJSZ Series Conical Twin-Screw Extruder Technical Parameter:

Model SJSZ-51 SJSZ-55 SJSZ-65 SJSZ-80 SJSZ-92
Screw Dia.(mm) 51/105 55/110 65/132 80/156 92/188
Max. Rotating speed(rpm) 40 38 38 37 36
Main Motor(kw) 18.5 22 37 55 90
Capacity(kg/h) 80~100 100~150 150~250 250~380 380~700
Center height(mm) 1050 1050 1050 1050 1100
Net Weight(kg) 3000 3500 4000 5500 8000
L*W*H 3.6*1.1*2.1 3.6*1.1*1.2 4.2*1.5*2.4 4.7*1.5*2.4 6*1.6*2.5



Plastic Pipe Extruder/Plastic Extruders:

Different types of extruders With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material and granulation. It can also extrude PP.PE pipe at high speed by changing special barrel.Computer control or conventional control is optional.

According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality. The screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.
