Features

Specifications

Capacity: 15-20kg/h

Warranty: 1 Year

Screw Design: Single-screw

Certification: CE,ISO

Voltage: Customer Demand

Automatic Grade: Full-automatic

After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training

Color: Customised

Control: PLC+Touch Screen

Highlight:

hdpe pipe production line

plastic pipe extrusion machine

Basic Infomation

Place of Origin: ZHANGJIAGANG

Brand Name: LB

Certification: CE / ISO

Model Number: LB

Payment & Shipping Terms

Packaging Details: NORMAL PACKAGE

Delivery Time: 45 WORKING DAYS

Payment Terms: L/C, T/T,

Supply Ability: 15 SETS PER MONTH

Gallery

PP HDPE PE Plastic Pipe Extrusion Machine / Making Machine / Production Line

Product Description

HDPE PE Plastic Pipe Extrusion Machine / Making Machine / Production Line

Description:

PE pipe extrusion lines are applied for manufacturing PE pipes with different pressure classes needed in field of petrol gas, agriculture, architecture, telecom communication, etc..

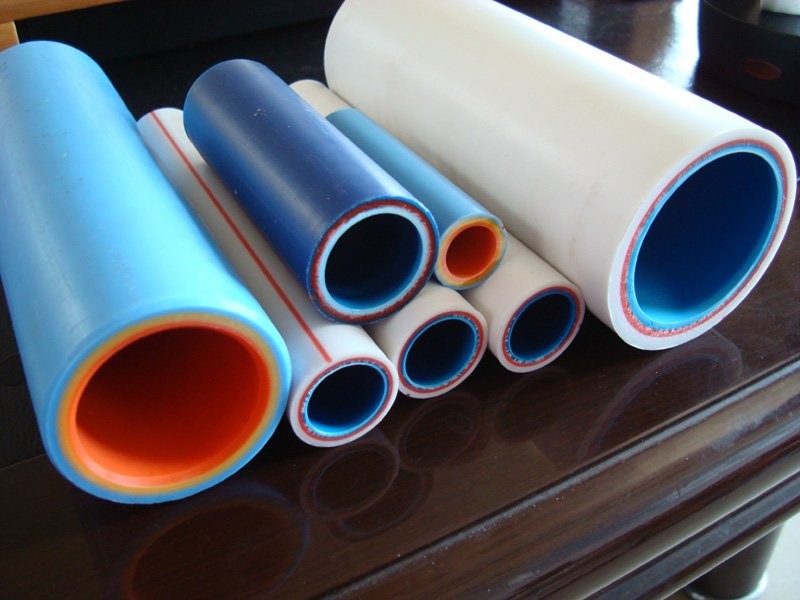

PP HDPE PE Plastic Pipe Extrusion Machine / Making Machine / Production Line 0

Machine Parameter:

example Extruder: SJ30

No	Model	Details
1	Hopper Dryer	Material: Stainless Steel Heating Power: 6KW Fan Power: 0.37KW Hopper Volume: 150KG/H
2	SJ30 Single Screw Plastic Extruder	Screw Diameter:￠30mm The ratio of L/D: 28:1 Screw Maximum Rotating Speed: 15-150Rpm Motor Power: 7.5KW Screw and Barrel Material: 38CrMoAlA Nitrogen Treatment Depth of Nitrogen Treatment: 0.4-0.7 Screw Straightness: ＜0.015 mm The hardness of Screw: HV800-1000 Heating Method: Casting Aluminum Heater Heating Zones: 4Periods(Screw Barrel 3periods, Head Piece 1 Periods) Heating Power:12KW Cooling Method: Forced Air Cool Cooling Zones :3 periods Fan Motor Power : 180W3= 0.54KW Electrical System: ABB Frequency Converter Temperature Control Meter: RKC Gear Box: Hard Tooth Face Central Height: 1000mm Size : 15001090*2127mm Weight: 400kg
3	Mold and Head	Mold Material: Steel 40Cr Mold Size for OD10mm, ID 8.5mm tube Connection head material: 45# carton steel
4	Vacuum and Water cooling tank	Vacuum forming part : Length: 2m Vacuum pump power: 2.2kw Material: stainless steel Heating device for good quality pipe forming Water cooling tank parts : Length: 1m Material: stainless steel Machine structure material: Q235 steel (height and direction adjustable) Size : 30001120310
5	Haul off with a cutting device	Haul off speed: 1-15m/min or required Driving motor: 0.55kw2 Cutter motor type: servo motor Motor power: 1.5kw Cutter blade material: high-quality tooling steel Final tube cutting length could be adjusted Cutting tube number could be seen in the PLC system Control system ( PLC control system ) Size : 1500900*850

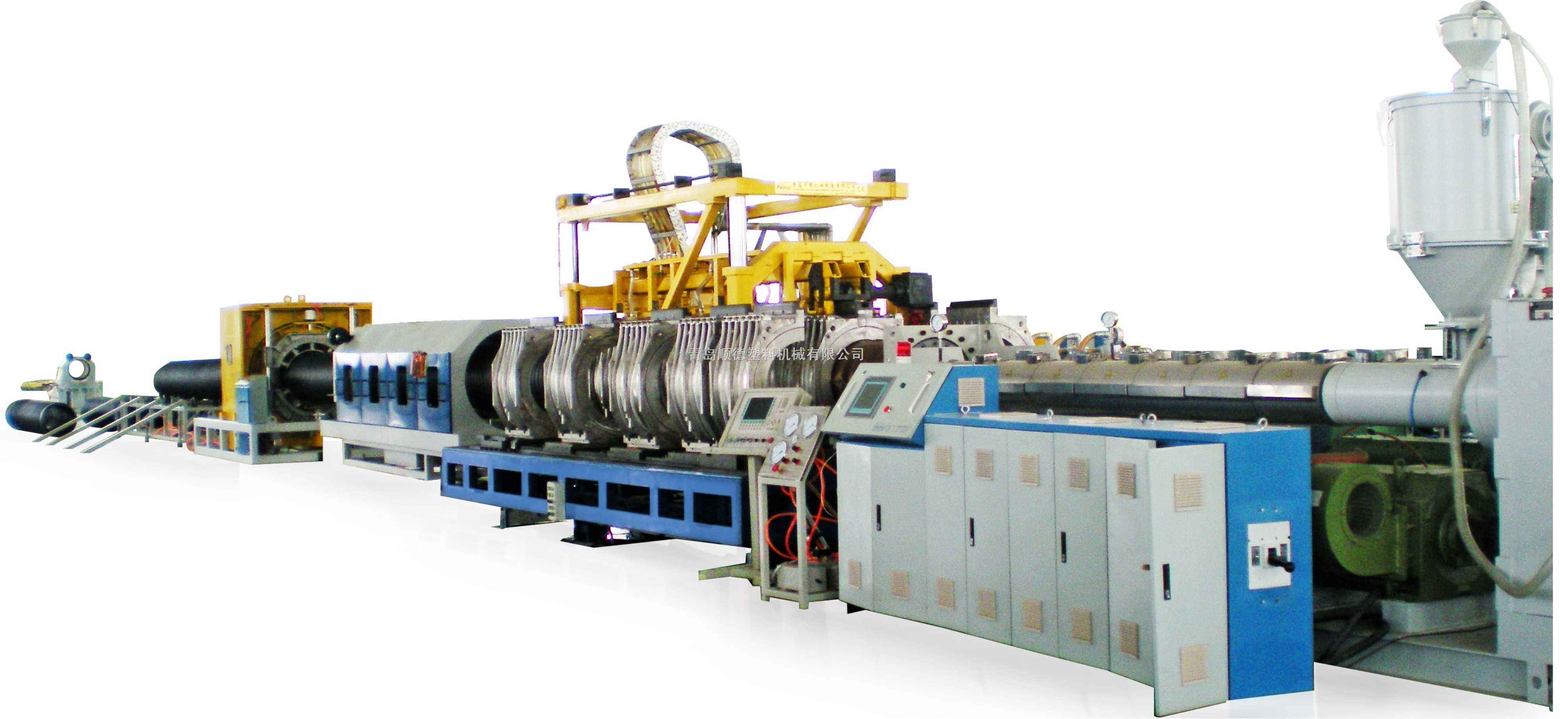

PP HDPE PE Plastic Pipe Extrusion Machine / Making Machine / Production Line 1

OUR SERVICE:

Pre-sales service:

Introducing in detail features and application of the products to customer
Selecting economical and practical machine & equipment for customer
Providing operation data of the related machine & equipment
Providing means of trial performance for customer

Sales service:

Recommending engineering conditions required for installation of the machine & equipment
Communicating in time the manufacturing progress of the machine with the user
Providing assistance in technical conditions, screw combination and barrel disposition needed for product

After-sales service:

Providing on-the-spot technical assistance in installation, commission and training
Filling in detail customer’s information
Providing long-term maintenance service and spare parts
Giving technical support to customer for developing new product
Providing free maintenance for a year

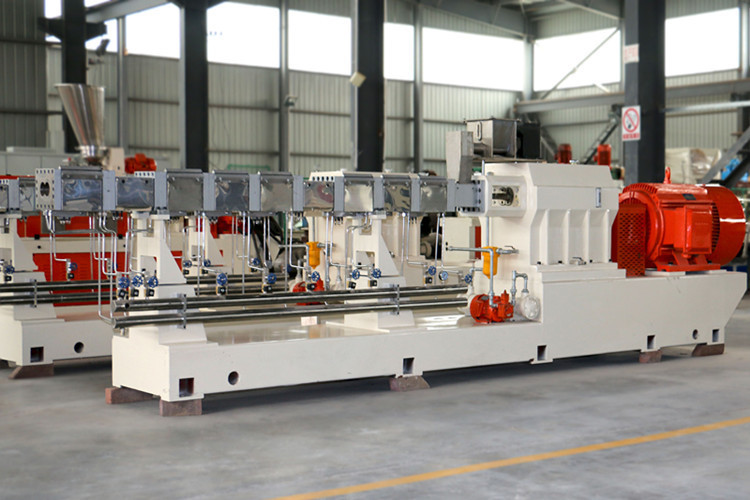

PP HDPE PE Plastic Pipe Extrusion Machine / Making Machine / Production Line 2

Q&A:

Q: Are you a trading company or manufacturer?

A: We are a manufacturing factory with several years of experience.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample free of charge but do not pay the cost of freight.

Q: What are your terms of payment?

A: 30% T/T in advance,70% balance before shipment or Negotiable
If you have another question, please feel free to contact us as below
