Product Details:
|
| Packaging Details: | WOODEN BOX | Material: | PE |
|---|---|---|---|
| Screw Diameter: | 65mm | LD Ratio: | 33:1 |
| Warranty: | 1 Year | Motor: | Siemens |
| Screw Design: | Single-screw | Certification: | CE,ISO |
| Voltage: | Customer Demand | Automatic Grade: | Full-automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Color: | Customised |
| Control: | PLC+Touch Screen | Processing Type: | Extrusion Machine |
| High Light: | hdpe pipe production line,plastic pipe extrusion machine |
||

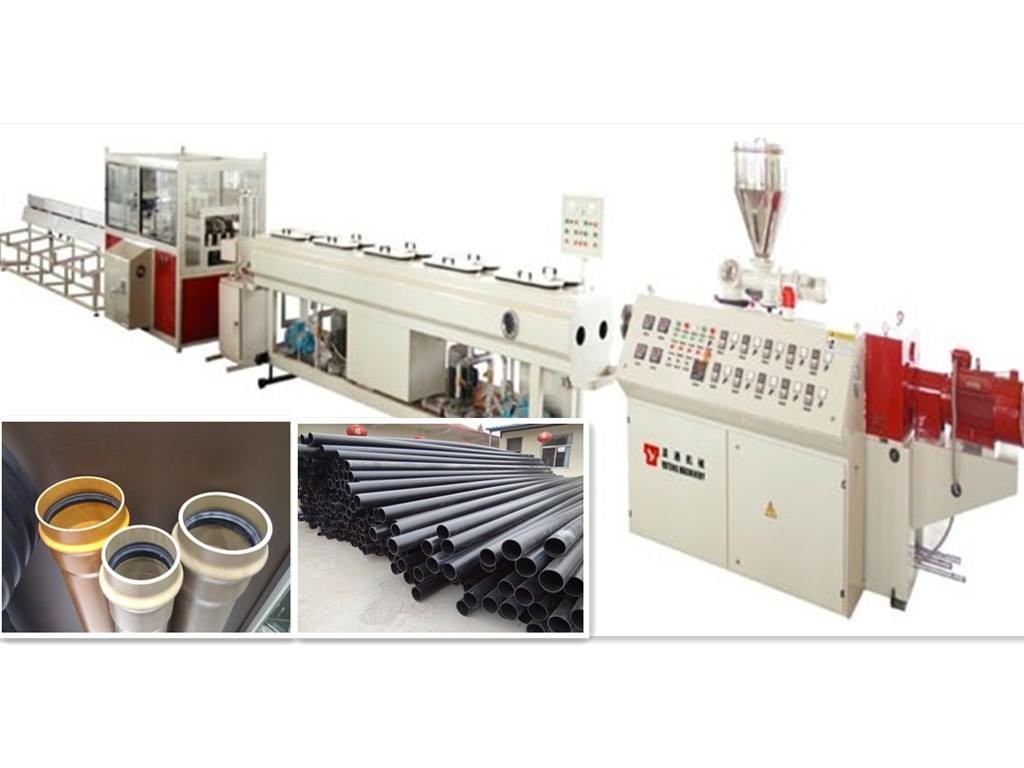

65mm PE Pipe Extrusion Line Hdpe Pipe Extrusion Machine 1 Year Warranty
Description:
This PE pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which has excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, the resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for a ductwork system between the city and its suburb, Large diameter HDPE pipes start to play a very important role in the city water and gas supply systems.
Main Features:

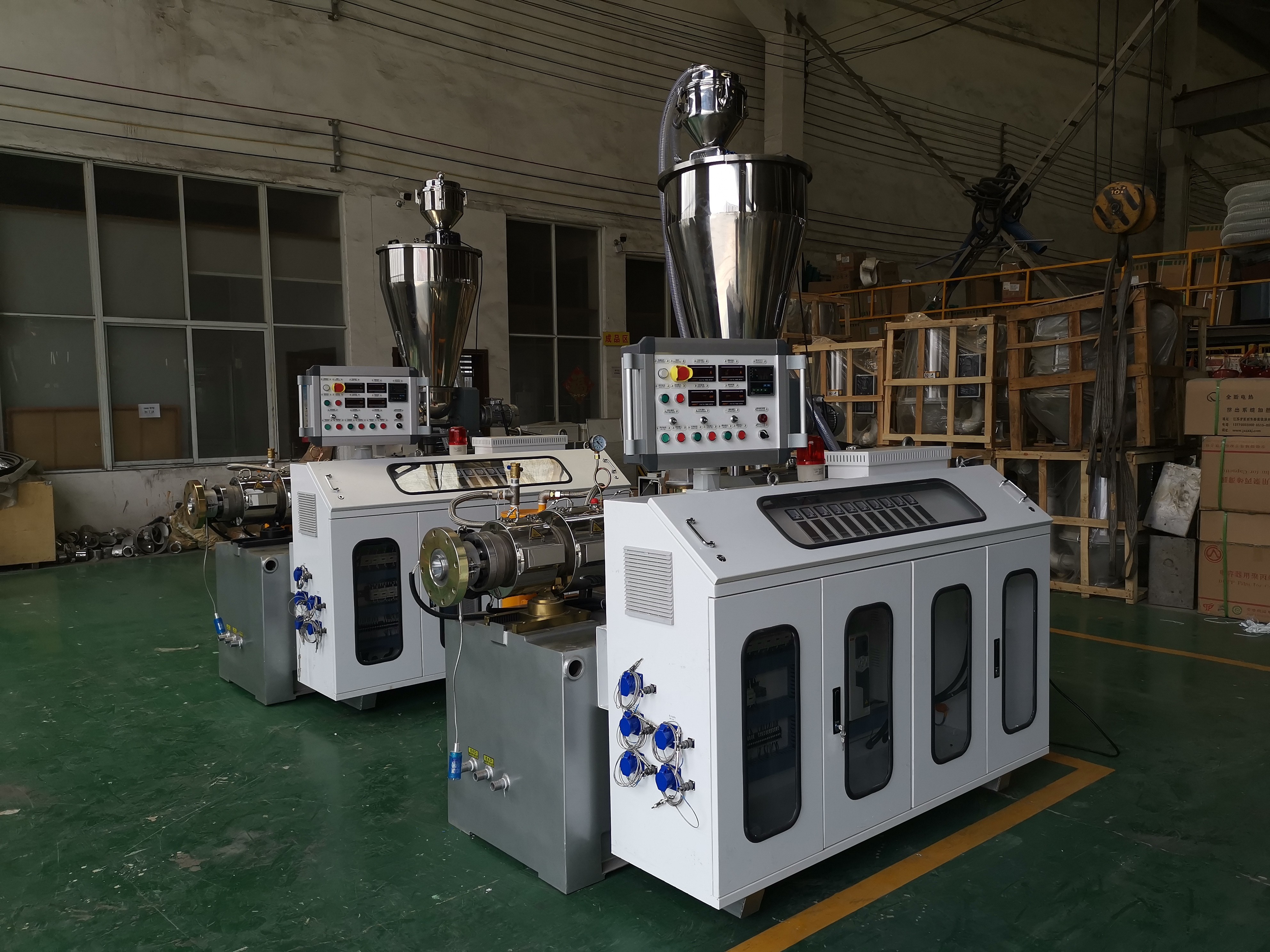

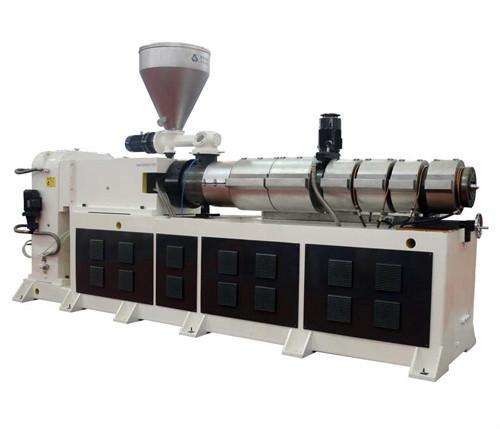

1.Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE PP PPR low temperature extrusionproduction.
2.Specially-designed spiral moulds for PE PP PPR pipes with marking line, with inside oil controlling temperature system

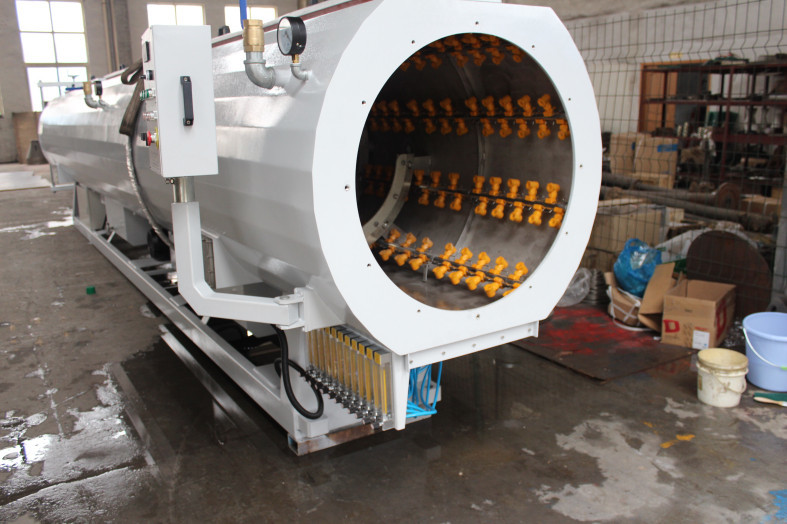

3.Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuu system ensures the stable sizing and cooling for pipes with marking line; special spray cooling system improves the cooling efficiency ; special water position, water temperature system make the machine more intelligent.
4.Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.
5.Cutting system adopts saw blades and planetary cutting means; sumping uses hydraulic system , which ensures the smoot cross section; equipped with dust-collecting unit, which ensures the clean working environment.
Specification of Production lines:
| Model | Screw Diameter | L/D | Pipe Range(mm) |
Machine Motor Power (kw) |
Total Power(kw) |
Line Length (M) |
| PE-63 | 65mm | 33:1 | 16-63 | 37 | 80 | 24 |
| PE-110 | 65mm | 33:1 | 75-110 | 55 | 110 | 30 |
| PE-160 | 75mm | 33:1 | 90-160 | 90 | 150 | 32 |
| PE-250 | 75mm | 33:1 | 110-250 | 110 | 200 | 42 |
| PE-315 | 90mm | 33:1 | 160-315 | 160 | 240 | 44 |
| PE-400 | 90mm | 33:1 | 200-400 | 185 | 300 | 50 |
| PE-500 | 120mm | 33:1 | 250-500 | 280 | 350 | 56 |
| PE-630 | 120mm | 33:1 | 315-630 | 280 | 480 | 56 |
| PE-800 | 150mm | 33:1 | 400-800 | 315 | 550 | 72 |
