Features

Specifications

Packaging Details: WOODEN BOX

Material: POM, PC, PMMA

Screw: 65mm

LD: 33:1

Motor: Siemens

Inverter: ABB

Screw Design: Single-screw

Voltage: 380V 50HZ 3Phase(Customized)

Automatic Grade: Full-automatic

After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training

Warranty: 1 Year

Color: Customised

Control: PLC+Touch Screen

Highlight:

hdpe pipe production line

plastic pipe extrusion machine

Basic Infomation

Place of Origin: ZHANGJIAGANG

Brand Name: LB

Certification: CE / ISO

Model Number: LB

Payment & Shipping Terms

Packaging Details: NORMAL PACKAGE

Delivery Time: 45 WORKING DAYS

Payment Terms: L/C, T/T,

Supply Ability: 15 SETS PER MONTH

Gallery

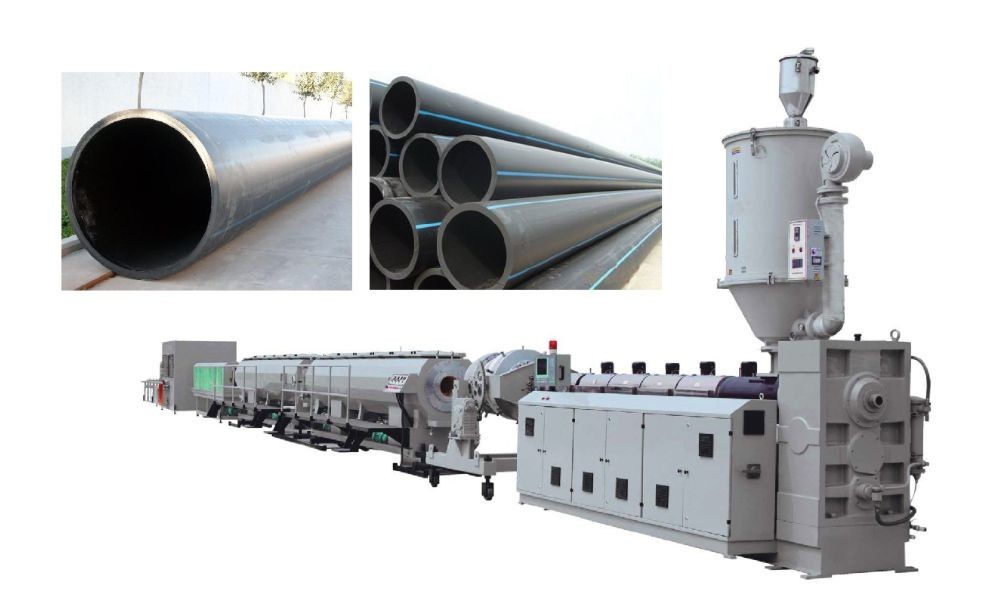

Low Noise Plastic Pipe Extrusion Machine Professional PE PC PMMA Pipe Making

Product Description

PE PC PMMA Plastic Pipe Extrusion Machine , Professional POM PC PMMA Pipene

Application:
Widely used in industrial machinery parts ,electronics ,toys ,footwear and other industries

Technical parameter:

S.N	Description	Qty
1	SJZ80/34 Single- screw extruder: one set Screw dia: 80mm Screw L/D:34:1 Screw type: special screw Screw diameter: φ80mm,LD:34:1;Material: made of high quality nitride 38CrMoAIA,and are nitration austerely according to NATIONAL STANDARD, nitration hardness:850-950HV; Barrel: made of high quality nitride steel-38CrMoAI, nitration hardness:950-1050HV; Main motor power: 110KW Heater zone: 8 zones Hopper dyer: one set Automatic feeding system: one set	1 set
2	POM Extrusion mould: Mould body: 1 set Sizing sleeve: copper φ152mm, φ177mm Wall thickness: 12mm	1 set
3	AFP-250 Vacuum Water Cooling Tank effective vacuum length:6000mm center height:1050mm±50mm up and down movement distance±50mm left and right movement distance±50mm vacuum pump power:5.5KwX2 water pump power:4.0KwX2 forward and backward movement distance 600mm forward and backward motor power:1.5KW Equipped with water level and waer temperature automatic monitoring system Water tank body adopts stainless steel	1 set
4	AFP-250 Water Spraying Cooling Tank effective vacuum length:6000mm water pump power:4.0KwX1 Water tank body adopts stainless steel	1 set
5	AFP-250 Four Pedrails Haul-off Machine main motor power:4kw*2 (Inverter control for speed) suitable pipe rangeФ50-250mm the bottom pedrail is controlled by a motor for up & down lift, motor power: 0.75kw the upper pedrail is controlled by pneumatic for up & down lift	1 set
6	AFP-250 Dustless Saw cutting machine Cutting blade: knife cutting Rotary motor power:2.2kW suitable pipe range:Ф50-250mm Cutting knife is controlled by pneumatic	1 set
7	AFP-250 Stacking unit Effective length:3000mm	1 set

Our Advantages:

1.With special design to the screw, makes the raw materials reach the good plasticizing and mixin effect

2.Bright and uniform finished product with automatic temperature control

3.Frequency inverter control

4.High efficiency and energy saving

5.Automatic fixed-length cutting, easy to operator

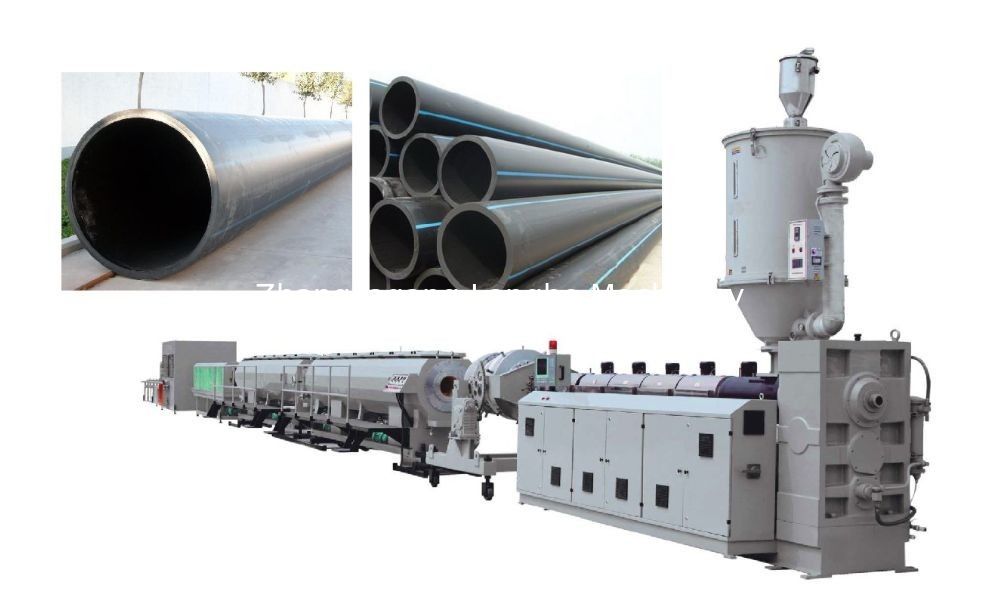

Low Noise Plastic Pipe Extrusion Machine Professional PE PC PMMA Pipe Making 1

Our competitive advantages:

1.LangBo is a high-tech enterprise specializing in the production of plastic processing complete sets of equipment and various plastic pipe moulds,

integrating scientific research, development, manufacturing, sales and service.

2. The company integrates the rich design and manufacturing experience accumulated by the sophisticated technical team over the years, with

advanced production equipment technology, strict quality assurance measures, scientific management methods, fast and efficient service, and

constantly blaze new trails to meet the needs of customers. Products sell well all over the country and exported to many overseas countries and

regions won the trust of all parties, the product is in the same industry-leading position in the country.
