Product Details:
|
Inverter: | ABB | Motor: | Siemens |
---|---|---|---|
Warranty: | 1 Year | Screw Concept: | Conical Twin Screw |
Application: | Pipe Making | Plastic Processed: | PVC |
Cooling Concept: | Recycled Water | Temperature Controller: | Omron |
Certificate: | CE ISO | Origin: | Jiangsu, China |
Highlight: | plastic tube making machine,pvc pipe production line |
Siemens Motor Conical Twin Screw Pvc Pipe Production Machine , PVC Tube Making Machine
Description:

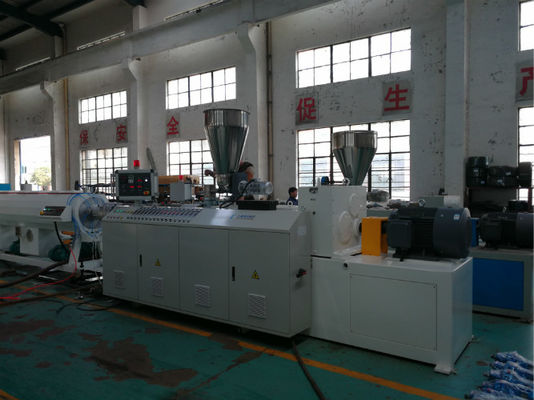

Conical twin screw extruder is professional equipment to extrude PVC/ composite mixture of PVC and wood/composite pellets of PP/PE and wood. Equipped with different die head, downstream equipment, it can be applied for manufacturing of pipe, profile, composite profile, panel, sheet and pelletizing, etc.. It consists of following items:
Model | Screw diameter(mm) | Rotary speed (rpm) | Motor power (kw) | Capacity (kg/hr) |
SJZ45/90 | 45/90 | 45/34.7 | 15 AC | 100 |
SJZ51/105 | 51/105 | 45/34.7 | 18.5 AC | 150 |
SJZ55/110 | 55/110 | 45/34.7 | 22 AC | 200 |
SJZ65/132 | 65/132 | 45/34.7 | 30/37 AC | 250 |
SJZ80/156 | 80/156 | 34.7/25 | 55 AC | 350 |
SJZ92/188 | 92/188 | 34.7/25 | 110 DC | 800 |
SJZ105/216 | 105/216 | 34.7/25 | 160 DC | 1100 |
Product Features:
1. Screw:
Type: Evolution screw High-strength steel nitride, electroplated hardness chrome.
Material: 38CrMoALA alloy steel
2. Barrel:
High-strength alloy nitride, high-precision machining with a round grinding, hard chrome plating
Barrel cooling method: air-cooled
Cylinder wall: to prevent the resin burned, required wall surface treatment
3. Driving devices:
High-precision worm gear reducer high efficiency and low noise
Main heating:
High efficiency heater
Solid-state relay control
Germany SIEMENS PLC temperature control module (PROGRAMMABLE LOGIC CONTROLLER)
Germany SIEMENS PLC Inverter Motor Speed Control Module
German SIEMENS HMI HMI (HUMAN MACHINE INTERFACE)
Taiwan more than wing ultra quiet high-efficiency air-cooled fan control
4. Extruding mould: 1 set (contain one type of product)
Die lip: one
Core bar: one
Calibration unit: one

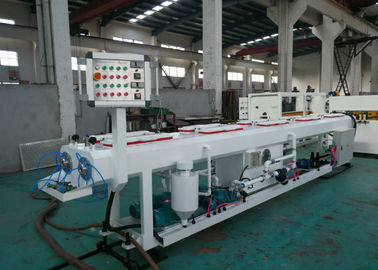

5. Vacuum calibration trough
Length of trough: 4M
Main body of the trough: 304# stainless steel, treated with bended and welded.
Material of the trough Cover: high strength and transparent steel glass
Vacuum chamber: consists of 1.5kw vacuum pump, stainless steel chamber.
Tri-dimension movable water tank stand

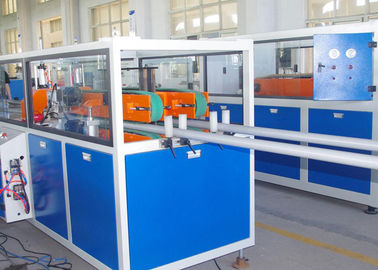

6. Haul off machine
High effective and stable hauling off with the wedge-shaped strap, the surface coving the foam PU
High effective and stable reducer transmission
Mitsubishi high-precision servo motor drive (SERVO MOTOR)
Mitsubishi high-precision servo controller (SERVO MOTOR CONTROLLER)
Japan NEMICON rotary encoder feedback control (ROTARY ENCODER)
7. Cutter
Aluminum alloy with low inertia rotary knife arm
Mitsubishi high-speed high-precision low inertia servo motor-driven response (SERVO MOTOR)
Mitsubishi Servo Controller (SERVO MOTOR CONTROLLER)
Japan's Mitsubishi PLC controller to cut off the length of products
Product length tolerance: ± 1mm-1.5mm

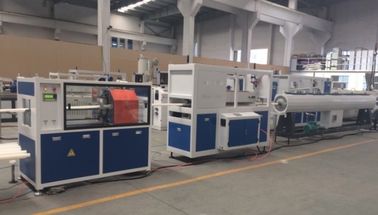

Pictures:
