Double Screw PVC Pipe Extrusion Line , Plastic Water Pipe, PVC Tube Making Machine, Conical twin Screw
Product Details
| Material: | PVC Powder | Screw: | Twin Screw |
|---|---|---|---|
| Capacity: | 200-300kg/hr | Warranty: | 1 Year |
| Inverter: | ABB | ||
| Highlight |
plastic tube making machine,pvc pipe production line |
||
Product Description
Double Screw PVC Pipe Extrusion Line , Plastic Water Pipe, PVC Tube Making Machine, Conical twin Screw
● Equipped with relative extruding die, assistant equipments, it can be used for manufacturing PVC pipe.
● Rigid PVC pipe product line model No: AFP63, AFP110, AFP250, AFP400, AFP630, AFP800.
● Features of conical twin-screw extruder.
Unique screw design, short plasticizing time, good compounding and plasticizing effect.
● Adopts super quality of gear box, with nice outline, stable running, and low noise.
● Adopts ceramic heater for barrel heating, wind cooling system has good features of cooling and heating, precise temperature
controlling.
● It adopts internal temperature control for screw.
● Equipped with vacuum degassing system can get rid of waste gas from melt material, which guarantee super quality product.
● Apply silicon D.C speed regulator or inverter for speeding regulation, which provide stable torque output, various speed.
● Applicable for thermal sensitivity PVC powder.

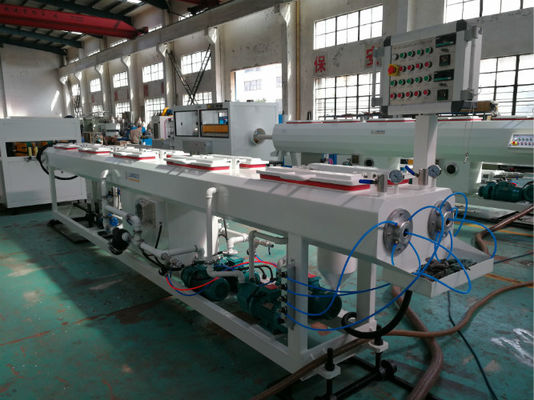

● Vacuum calibration device: vacuum spraying water chamber for pipe, spraying water tank for requirements for different pipes.

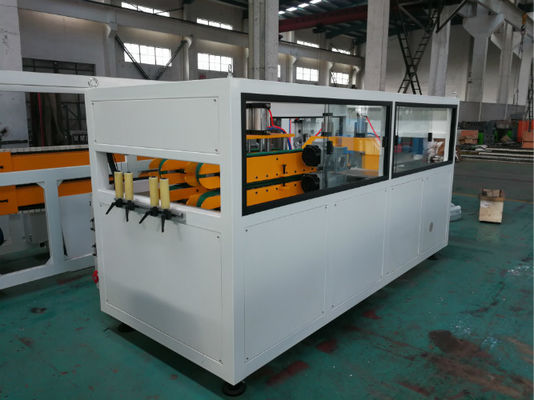

● Haul off unit: 2 claw, 4 claw, 6 claw, 8 claw haul off unit for pipe, to adapt manufacturing requirements for different pipes.
● Cutting unit: chip-free rotary knife cutting, saw cutting, and planet saw cutting (with chamfered blade).
● Diameter enlarger for rigid PVC pipe.
● Stacking unit: automatic overturning stacking.
● Many options for electric control system (such as: PLC automatic control system), It has good features of high speed, stable
running, and easy operation.
Specifications:
| Model | Screw diameter(mm) | Rotary speed (rpm) | Motor power (kw) | Capacity (kg/hr) |
| SJZ45/90 | 45/90 | 45/34.7 | 15 AC | 100 |
| SJZ51/105 | 51/105 | 45/34.7 | 18.5 AC | 150 |
| SJZ55/110 | 55/110 | 45/34.7 | 22 AC | 200 |
| SJZ65/132 | 65/132 | 45/34.7 | 30/37 AC | 250 |
| SJZ80/156 | 80/156 | 34.7/25 | 55 AC | 350 |
| SJZ92/188 | 92/188 | 34.7/25 | 110 DC | 800 |
| SJZ105/216 | 105/216 | 34.7/25 | 160 DC | 1100 |
=
