50 Kg / H Capacity PE Pipe Extrusion Machine Big Pipe Size Low Power Consumption
Product Details
| Material: | PE Pellet | Extrusion Screw Speed: | 0-89rpm/min |
|---|---|---|---|
| Capacity: | 50kg/h | Control Box: | Independent Control Box |
| Warranty: | 1 Year | Color: | Optional |
| Screw Design: | Single-screw | Certification: | CE,ISO |
| Voltage: | 380V 50HZ 3Phase(Customized) | Automatic Grade: | Full-automatic,PLC |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training | Control: | PLC+Touch Screen |
| Highlight |
hdpe pipe production line,plastic pipe extrusion machine |
||
Product Description

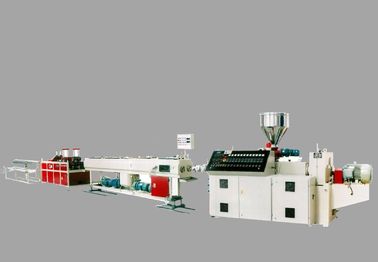

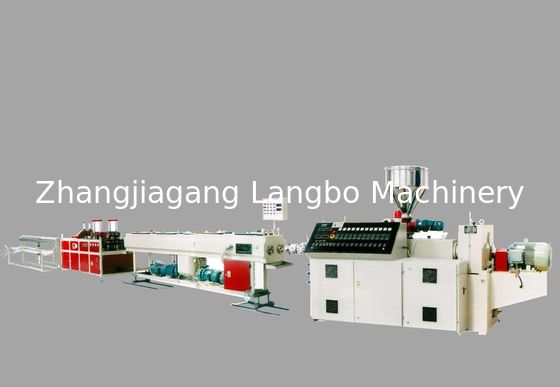

50kg/H Capacity PE Pipe Extrusion Line Big Pipe Size Low Power Consumption
Description:
PE carbon helical power communication buried casing, with an excellent HDPE as the main material, the addition of carbon and PE modified color mother by extrusion is the urban power communication line construction ideal buried pipe material. Because of its smooth inner wall spiral structure; Compared with the flat wall pipe, the friction coefficient of the direct fiber cable is reduced, and the direct friction coefficient decreases by 60% compared with that of the flat wall tube. Because its unique inner wall spiral for wire and cable provides a good ventilation and heat dissipation space, so as to effectively extend the service life of the wire and cable, reduced maintenance costs is an ideal product to power communication departments operating costs.
Feature:
The product is a single-wall internal and external spiral structure, and the coil packaging technology is used to effectively increase the length of the tube to 50m- 200m. The steel wire used to put a pull wire inside can provide convenient conditions for construction. The tube shall be inspected according to the diameter of 50m-200m and shall be constructed without joints. It can guarantee the non-leakage of pipe material, guarantee the safety of cable and reduce the construction cost.
Machine technical parameters:
|
SJ65/28 Single Screw Extruder
|
Model: SJ65 |
| Screw diameter:65mm | |
| L/D: 28:1 | |
| Capacity: 100kg/h | |
| Screw and Barrel making material: 38CrMoAlA | |
| The hardness of Screw: HV900-1000 | |
| Depth of Nitrogen Treatment: 0.4-0.7 mm | |
| Screw Straightness: ＜0.015 mm | |
| Main Motor Power : 37kw | |
| Barrel heater type: Cast aluminum heater+304 stainless steel cover | |
| Heating temperature range: 0-320℃ | |
| Heating power: 18kw | |
| Barrel cooling type: forced air cooling | |
| Water cooling jacket for barrel cooling: Yes | |
| Fan power: 0.48w | |
| Screw Max Rotating Speed: :13-130rmp | |
| Center height: 1000mm | |
| Weight: 650kg | |
| Control system : | |
| ABB brand frequency converter (speed control) | |
| Omron brand temperature meter( temperature control ) | |
| brand contactor | |
| AoYi brand ampere meter | |
| Screw and Barrel brand: zhoushan brand | |
|
Gearbox brand: Jiangyin brand, Gear type: hard tooth -faced speed reducer |
|
| 304stainless steel hopper | |
| Motor brand: xindali brand ( CE marked ) |
Our service
Pre-sales service:
- Introducing in detail features and application of the products to customer
- Selecting economical and practical machine & equipment for customer
- Providing operation data of the related machine & equipment
- Providing means of trial performance for customer
Sales service:
Recommending engineering conditions required for installation of the machine & equipment
- Communicating in time the manufacturing progress of the machine with the user
- Providing assistance in technical conditions, screw combination and barrel disposition needed for product
After-sales service:
- Providing on-the-spot technical assistance in installation, commission and training
- Filling in detail customer’s information
- Providing long-term maintenance service and spare parts
- Giving technical support to customer for developing new product
- Providing free maintenance for a year
Our competitive advantages:
- Langbo is a high-tech enterprise specializing in the production of plastic processing complete sets of equipment and various plastic pipe moulds, integrating scientific research, development, manufacturing, sales and service.
- The company integrates the rich design and manufacturing experience accumulated by the sophisticated technical team over the years, with advanced production equipment technology, strict quality assurance measures, scientific management methods, fast and efficient service, and constantly blaze new trails to meet the needs of customers. Products sell well all over the country and exported to many overseas countries and regions won the trust of all parties, the product is in the same industry-leading position in the country.
Q&A:
Q: Are you a trading company or manufacturer?
A: We are a manufacturing factory with several years of experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample free of charge but do not pay the cost of freight.
Q: What are your terms of payment?
A: 30% T/T in advance,70% balance before shipment or Negotiable
If you have another question, please feel free to contact us as below
