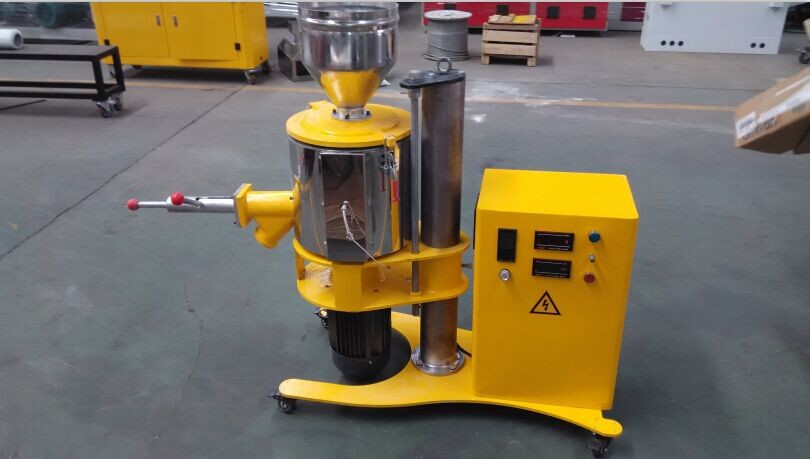

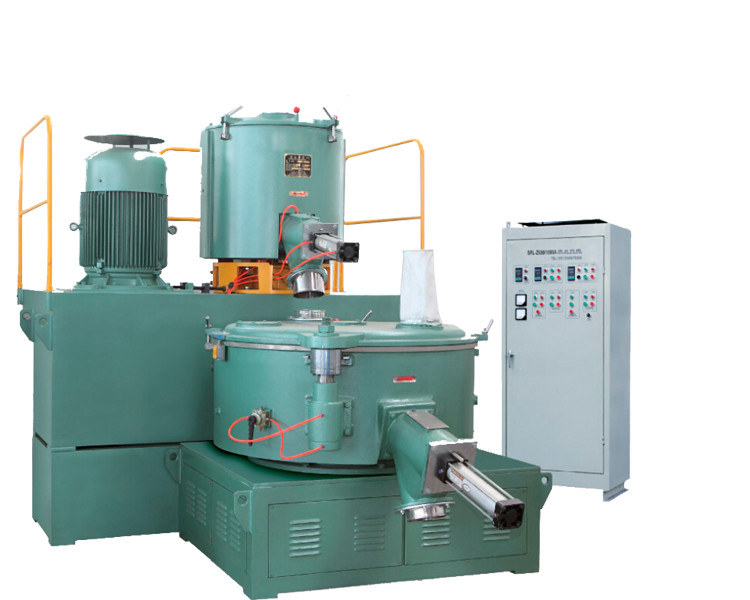

Easily Cleaning Plastic Mixture Machine High Speed Mixer Machine 75kw Motor Power
Product Details
| Mixing Material Type: | Plastic Granule And Powder Or Pigment | Speed Controller: | ABB Inverter |
|---|---|---|---|
| Making Mnaterial: | High Quality Stainless Steel | Heating Type: | Self-friction Or Electrical Heating |
| Temperature Meter: | Omorn Brand | Mixing Time And Speed Controllable: | Yes |
| Motor: | 55KW | Packing: | Export Standard Packing |
| Warranty: | 12 Months After Installation In Local Place | Electrical Components: | Or Schneider |
| Highlight |
pvc compounding mixer,plastic mixer machine |
||
Product Description
Easily Cleaning Plastic Mixture Machine , Pvc Mixer Machine 75kw Motor Power
Application & Features:
1. For plastics, rubber, daily chemical industry and laboratory materials mixing, stirring, dry blasting, painting and other craft.
2. The pot cover has applied dual sealing.
3. self-friction, electric heating and various heating methods.
4. Discharge methods use automatic temperature control and manual control.

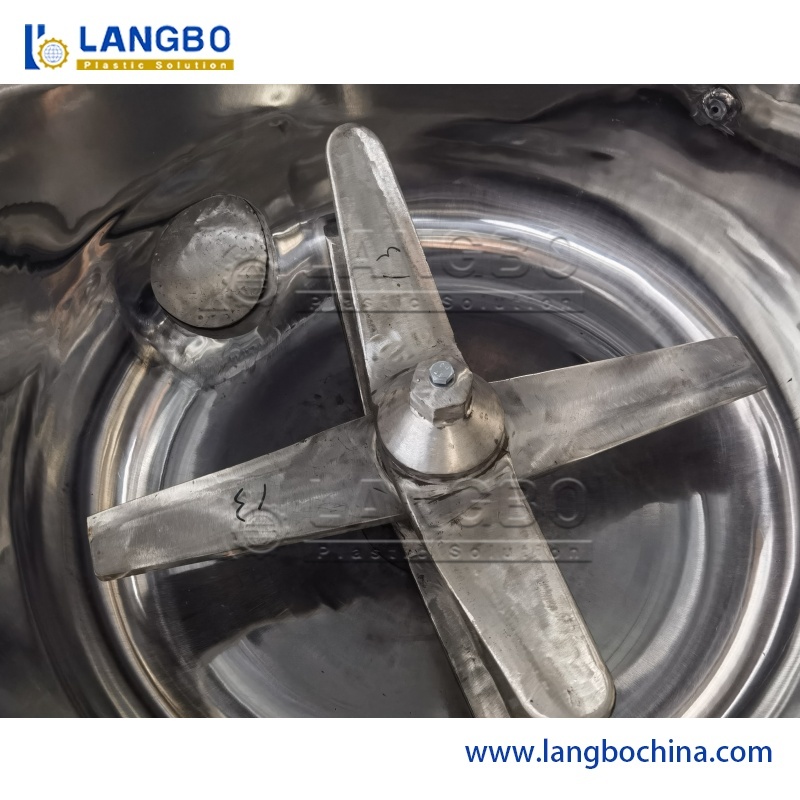

5. The blade is high quality whole Stainless steel cast, and refined through the static and dynamic balance test , according to different material mixing , different type blade will be adopted .
6. mixing speed controlled by ABB inverter , omron temperature meter with independent control box .
7. 1 year warranty time and 24 hours service after sale
8. high speed mixer will be testing operation before shippment for client confirmation
Technoical parameter:
| Model | Total volume | Effective volume |
Power of electrical machinery and heating |
Principal axis rotary speed |
Figure dimension (L*W*H)mm |
Heating mode | Discharging mode |
| SHR-5A | 5L | 3L | 1.1KW | 1400rpm | 620*300*730 | self-frictiom | hand work |
| SHR-10A | 10L | 7L | 3KW | 2000rpm | 1200*300*830 | ||
| SHR-25A | 25L | 20L | 5.5KW | 1440rpm | 1200*350*850 | ||
| SHR-50A | 50L | 35L | 7/11/3KW | 750/1500rpm | 2100*700*1100 | electric or steam | peneumatics |
| SHR-100A | 100L | 75L | 14/22/6KW | 650/1300rpm | 2100*800*1510 | ||
| SHR-200A | 200L | 150L | 30/42/6KW | 475/950rpm | 2400*850*1580 | ||
| SHR-300A | 300L | 225L | 40/55/9KW | 475/950rpm | 2000*1080*1680 | ||
| SHR-500A | 500L | 375L | 47/67/12KW | 430/860rpm | 3060*1150*1880 | ||
| SHR-800A | 800L | 600L | 83/110/15KW | 370/740rpm | 3385*1380*2750 | ||
| SHR-1000A | 1000L | 750L | 110/160/28KW | 325/650rpm | 3460*1140*2900 | self-friction | peneumatics |
| SHR-200C | 200L | 150L | 30/42KW | 650/1300rpm | 2545*900*1700 | ||
| SHR-300C | 300L | 225L | 47/67KW | 475/950rpm | 2000*1080*1680 | ||
| SHR-500C | 500L | 375L | 83/110KW | 500/1000rpm | 3060*1150*1880 |
Q:Are you machinery factory or trading company?
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: How can we visit your company and machines?
A : Our factory is in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
