Product Details:
|
| Process Material: | PET Bottles | Application: | Recycling Material |
|---|---|---|---|
| Output: | 500 Kg/h | Type: | Washing Line |
| Delivery Time: | 60 Days Since The Date Of Receiving Down Payment | Warranty Period: | 12months |
| High Light: | plastic reprocessing machine,plastic waste recycling machine |
||

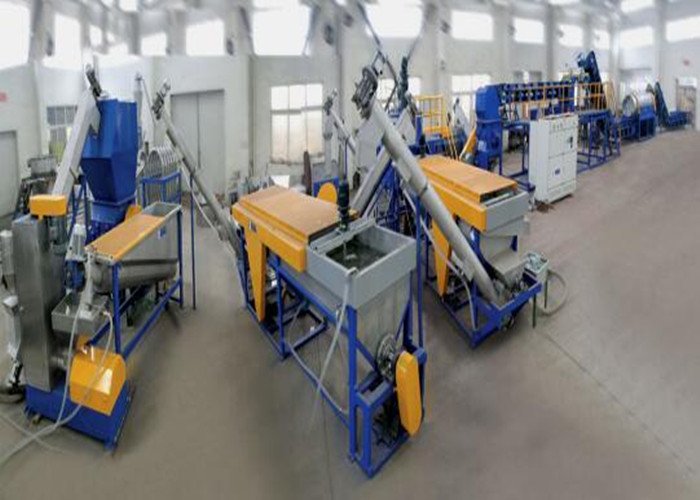

PET Recycle Material Washing Line Post - Consumer Bottles Flakes Washing
Raw material & Final product
|
Raw material & formulation
|
Post-consumer bottles |
|
Final product & Output capacity
|
Bottle flakes 100~300kg/h |
| Description of final product |
1. Moisture: max 1-1.5% 2. Bulk density: 0.3G/ C CM3 3. Particle size: 16-18mm(can be designed as per special requirement) |
Work condition
| Warehouse/Workshop |
Dimension (M*M*M):42 (L)×10(W)×6(H); About 500 square meters with height 7 meters
|
|
Power supply & Installation power
|
3-phase, 380 V, 60 Hz |
| Wire/cables(provide by customer) | Wires/cables from power supply to control cabinet of this production line; all electrical cables from control cabinet to each machine. |
| Water supply hose/pipe (provide by customer). | Water supply to machines and pools |
Machine Composition
| No. | Machine | Qty. | No. | Machine | Qty. |
| 1 | Belt conveyor | 1set | 11 | Floating washer | 2sets |
| 2 | Bottle label separator | 1set | 12 | Spray washer | 1set |
| 3 | Manual sorting belt | 1set | 13 | Centrifugal dryer | 1set |
| 4 | Belt conveyor | 1set | 14 | Pipeline dryer | 1set |
| 5 | Crusher | 1set | 15 | Flake Label separator | 1set |
| 6 | Screw loader 1 | 1set | 16 | Packaging system | 1set |
| 7 | Hot washer | 1set | 17 | Electric cabinet | 1set |
| 8 | Screw loader 2 | 1set | |||
| 9 | High-speed friction washer | 1set | |||
| 10 | Screw loader 3 | 1set |
|
