Product Details:
|
| Machine Material: | Stainless Steel 304 | Motor Power: | Optional |
|---|---|---|---|
| Washing Type: | Cold Washing And Hot Washing | Heating Type: | Eletrc Heating Or Gas Or Petrol |
| Pelletizing Type: | Water Ring Type And Strand Type | Capacity Range: | 300kg/hour-2000kg/hour |
| Highlight: | plastic reprocessing machine,plastic waste recycling machine |
||

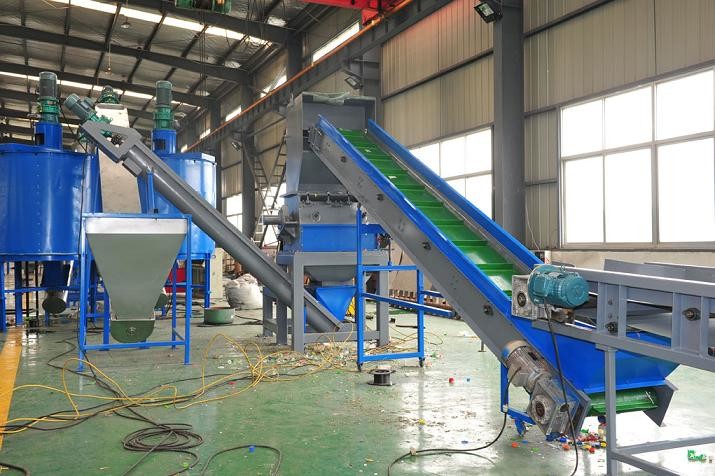

PP PET PS HDPE Waste Plastic Recycling Pelletizing Machine Stainless Steel 304
| Raw material & formulation | Post-consumer bottles |
|
Capacity range |
300kg/hour |
| 500kg/hour | |
| 1000kg/hour | |
| 2000kg/hour | |
|
Description of final product |
Moisture: below 1% |
| Particle size: 17mm | |
| Impurities: 100 ppm | |
| PVC label content: 100 ppm | |
| Production standard | CE, ISO9001 |
| Main components (1000kg/h) | |
| (Name) | (power) |
| Belt conveyor | 2.2kw |
| Mechenical label remover | 22kw |
| Manual separating table | 1.5kw |
| Metal detector | 0.4kw |
| Belt conveyor | 2.2kw |
| Crusher | 55kw |
| Screw conveyor | 2.2kw |
| Floating washer | 2.2kw+2.2kw+2.2kw |
| Screw conveyor | 2.2kw |
| Hot washer | 36kw |
| Screw conveyor | 2.2kw |
| High speed frication machine | 22kw |
| Screw conveyor | 2.2kw |
| Floating washer | 2.2kw+2.2kw+2.2kw |
| Screw conveyor | 2.2kw |
| Vertical dewatering machine | 11kw |
| Drying system | 36kw+7kw |
| Zig Zag air classification system | 11kw |
| Storage hopper | |

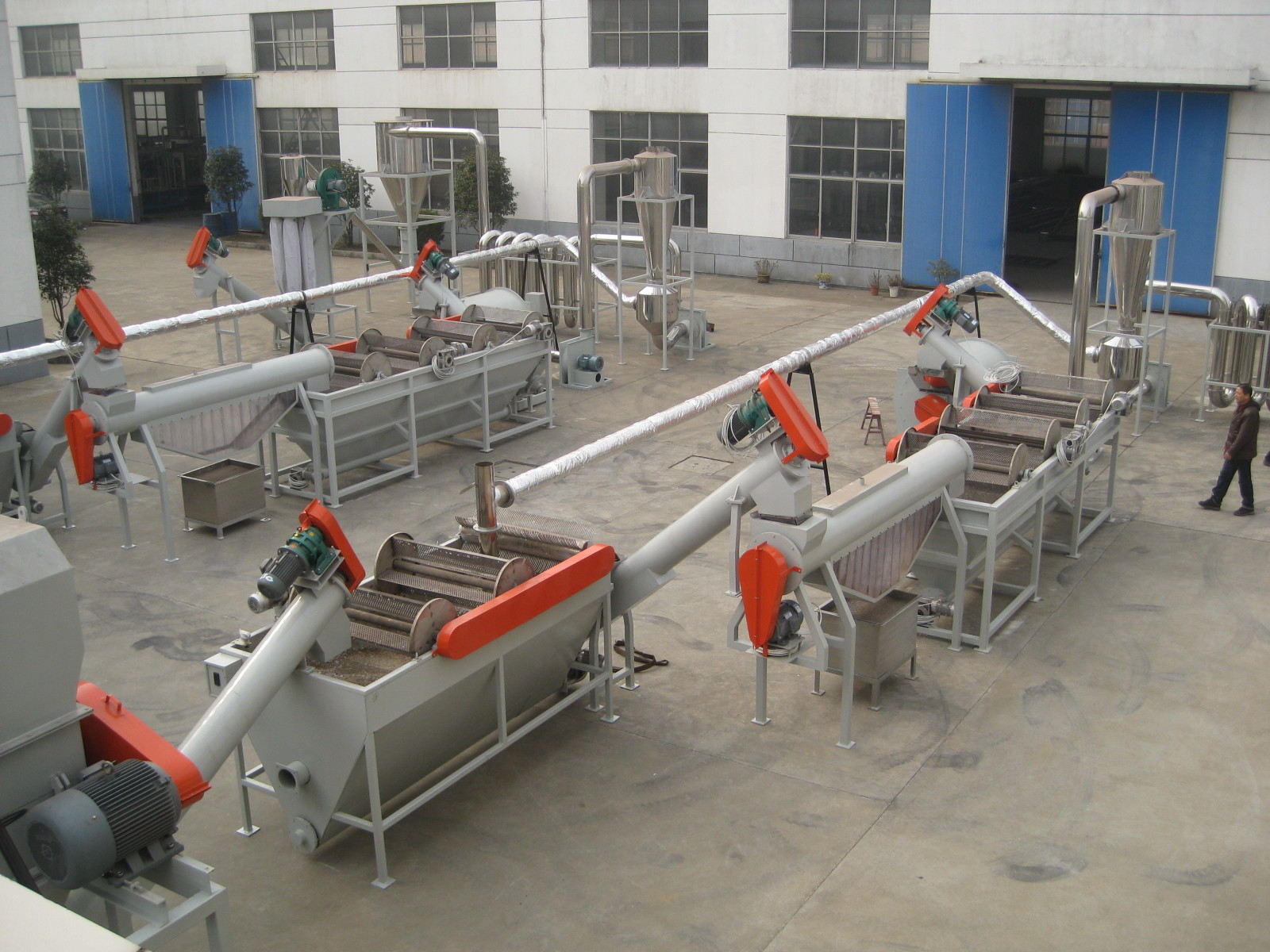

| Waste pe pp film bags recycling (crushing, washing, and drying) machine line: | |
| Raw material & formulation | PE/PP rural film, twist bag, shopping bag, packing bag etc |
|
Capacity range |
300kg/hour |
| 500kg/hour | |
| 1000kg/hour | |
| 2000kg/hour | |
| Description of final product | Moisture: below 5% |
| Particle size: 30-110mm | |
| Production standard | CE, ISO9001 |
| Main components (1000kg/h) | |
| (Name) | (power) |
| Belt conveyor | 2.2kw |
| Crusher | 55kw |
| Screw conveyor | 2.2kw |
| Belt conveyor | 2.2kw |
| Crusher | 55kw |
| Screw conveyor | 2.2kw |
| Floating washer | 2.2kw+2.2kw+2.2kw |
| Screw conveyor | 2.2kw |
| High speed frication machine | 37kw |
| Screw conveyor | 2.2kw |
| Vertical dewatering machine | 110kw +1.5kw |
| Drying system-1 | 45kw+7kw |
| Transition storage hopper | |
| Drying system-2 | 38kw+7kw |
| Storage hopper |
2.2kw
|
| SJ series single stage pe pp film granulator machine | ||||||||||
| Model | SJ-65 | SJ-80 | SJ-100 | SJ-120 | SJ-150 | SJ-200 | ||||
| Screw Dia. | 65 | 80 | 100 | 120 | 150 | 200 | ||||
| L/D | 28-30 | 28-30 | 28-30 | 28-30 | 28-30 | 28-30 | ||||
| Capacity | 60-80kg/h | 80-100kg/h | 150kg/h | 300kg/h | 400kg/h | 500kg/h | ||||
| SJ series double-stage pe pp film granulator machine | ||||||||||
| Model | SJ-100/100 | SJ-120/120 | SJ-150/150 | SJ-200/200 | ||||||
| Screw Dia. | 100 | 120 | 150 | 200 | ||||||
| L/D |
28-30 10-15 |
28-30 10-15 |
28-30 10-15 |
28-30 10-15 |
||||||
| Capacity | 120-180kg/h | 220-300kg/h | 300-400kg/h | 500-600kg/h | ||||||
| TSSK series Parallel twin screw PET granulation line/pelletizing machine | ||||
| Model | TSSK-50 | TSSK-65 | TSSK-75 | TSSK-92 |
| Screw Dia. | 50.5 | 62.4 | 71.2 | 91 |
| L/D | 32-48 | 32-48 | 32-48 | 32-40 |
| Output (kg/hr) | 80 | 150 | 300 |
500 |
