|Extruder Power (kw):||55KW||PIPE DIAMETER:||16-160MM|
|APPLICATION:||PPRC PIPE||Max Output:||150kg/h|
|Extrusion Speed:||2-15m/min||Center Height:||1000mm|
ppr pipe production line,
cpvc pipe making machine

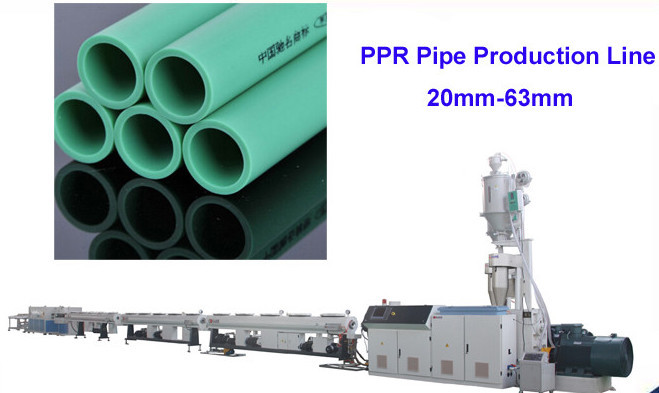

PPR Pipe Extrusion Line / single screw extruder 80 - 300kg/hr
Main specification of PPR pipe production line:
Components of PPR pipe production line:
|1.||Auto vacuum loader & Hopper drier||1SET|
|2.||SJ65, SJ75, SJ90 Single screw extruder machine||1SET|
|3.||SJ25/25 single screw co-extruder (for marked line)||1SET|
|4.||Electric control system (PLC automatic controller)||1SET|
|5.||Complete set of Extrusion die head & calibrators||1SET|
|6.||Vacuum Calibration water tank||1SET|
|7.||Spray water cooling tank||1SET|
|8.||Haul off machine||1SET|
|10.||Automatic cutting machine||1SET|
|12.||Option – Crusher||1SET|

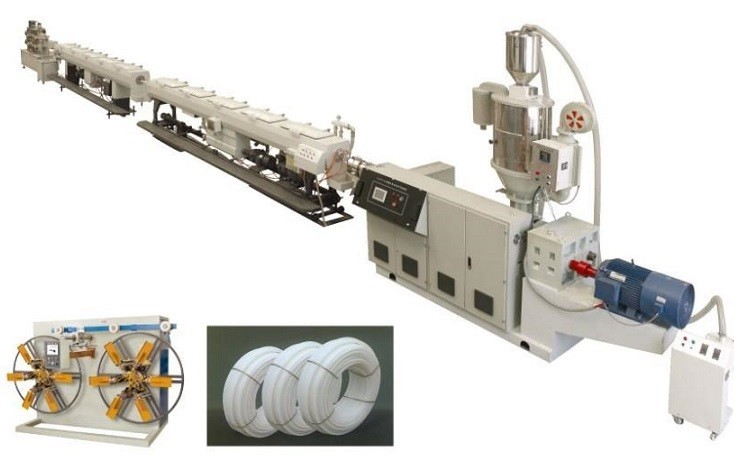

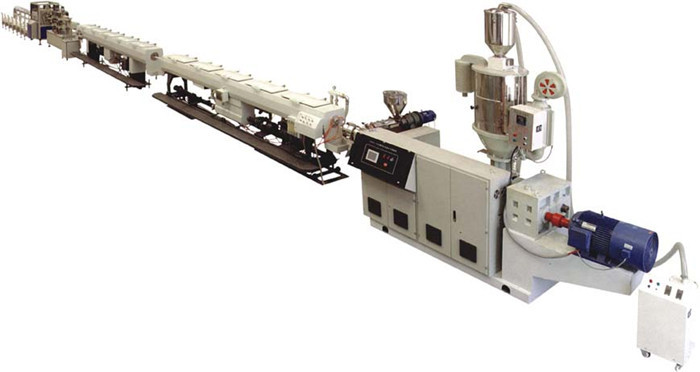

Reference PPR pipe production line drawing:

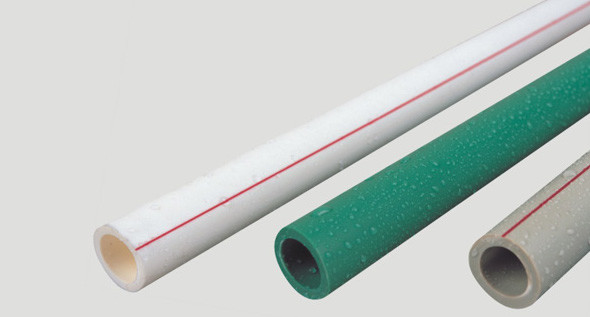

PPR pipe characteristic:
PPR pipe production line is used to produce PPR pipe which has advantages as follows:
1. Non toxic and health. PPR raw materials for elements only carbon and hydrogen elements, there is no harmful toxic elements, and health, not only for hot and cold water pipes, can be used in clean drinking water systems.
2. Thermal insulation. The thermal conductivity coefficient of PPR pipe is 0.21w/mk, only 1 / 200 to steel pipe.
3. Good heat resistance. PPR pipe Vicat softening point of 131.5 degrees C. Maximum working temperature up to 95 degrees C, water supply and drainage to meet the construction specifications require in the use of hot water system.
4. Long service life. PPR pipe in working temperature 70 degrees C, working pressure (PN) 1.0MPa conditions, the service life can be up to 50 years; at room temperature (20 degrees C) service life can be up to 100 years.
5. Easy installation, connection. PPR has good welding properties, pipe, pipe fittings can be used hot-melt and fused connections,easy installation, the strength of its joints is greater than the strength of its own pipe.
6. Recyclable materials. Waste PPR after clean, broken recycling can be used in the pipes, pipe fittings production. Recycling materials does not exceed the total amount of 10%, does not affect product quality.
1. It’s used in building hot and cold water system, including central heating system;
2. It’s used in building heating system, including floor, wall and radiant heating system;
3. It can be directly used in purfied water drinking water supply system.
4. Central (concentration) air conditioning system.
5. Transfering or discharge of chemical media, such as industrial piping system.
6. Adopts co-extrusion die head and with marking line for hot and cold water pipes.
Main characteristic of PPR pipe production line:
|Pipe diameter :||16-63mm||20-110mm||50-160mm|
|Extruder model:||SJ-65/33||SJ-65/33 or SJ-75/33||SJ-75/33 or SJ-90/33|
1. High quality
2. Reliable, Durable
3. Reasonable and competitive price
4. Good after-sale service & within 12hours replying by email
5 .One year guarantee
6 .More than 10 years of experience
