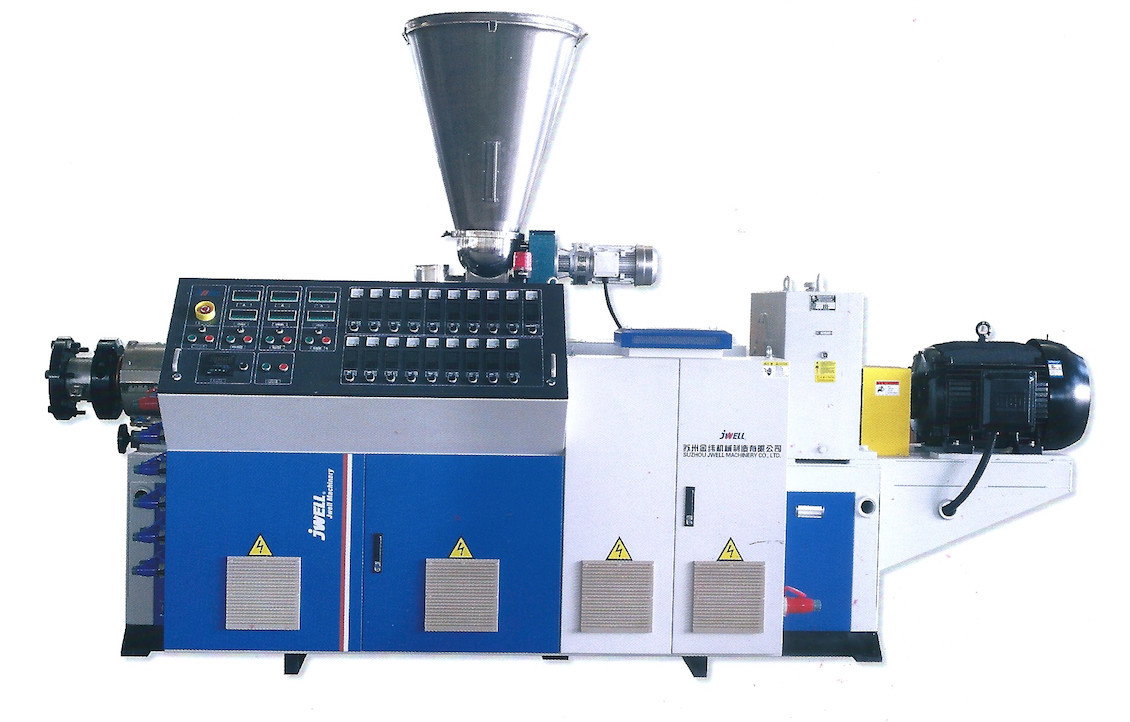

Conical PPR Pipe Extrusion Line Twin Screw Online Pipe Weight Metering
Product Details
| Condition: | New | Automatic: | Full Automatic |
|---|---|---|---|
| Plastic Processed: | PPR | Extruder: | Twin-Screw |
| Extrusion For: | Pipe, Profile | Packaging Details: | Without Package Or Wooden |
| Highlight |
ppr pipe production line,cpvc pipe making machine |
||
Product Description
Conical PPR Pipe Production Line Twin Screw Online Pipe Weight Metering
Descriptions :
| Main Technical Parameters | |||||||
| For Pipe Extrusion | |||||||
| Model | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-80A | SJZ-92 | SJZ-95 | SJZ-110 |
| Dia (mm) | 55/110 | 65/132 | 80/156 | 80/173 | 92/188 | 95/192 | 110/220 |
| Speed (rpm) | 45 | 45 | 34.7 | 37.6 | 34.7 | 34.7 | 40.1 |
| Motor (Kw) | 22/30 | 37 | 55 | 75 | 110 | 132 | 160 |
| Capacity (kg/h) | 180 | 380 | 500 | 680 | 800 | 1000 | 1350 |
| Center Height (mm) | 1050 | 1050 | 1050 | 1050 | 1100 | 1100 | 1200 |
| Weight (kg) | 3500 | 4000 | 5500 | 6000 | 8000 | 9000 | 11000 |
| Dimension (m) | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 4.7x1.5x2.4 | 3.9x1.6x2.5 | 6x1.6x2.5 | 6.5x1.6x2.5 | 7.5x2.2x2.5 |
| Main Technical Parameters | |||||||
| For Profile Extrusion | |||||||
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-72 | SJZ-80 | SJZ-92 |
| Dia (mm) | 45/100 | 51/105 | 55/110 | 65/132 | 72/152 | 80/156 | 92/188 |
| Speed (rpm) | 34.7 | 34.7 | 34.7 | 34.7 | 39.1 | 25 | 25 |
| Motor (Kw) | 15 | 18.5 | 22 | 30/37 | 45 | 55 | 90 |
| Capacity (kg/h) | 80 | 100 | 150 | 250 | 320 | 360 | 600 |
| Center Height (mm) | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | 1100 |
| Weight (kg) | 3000 | 3000 | 3500 | 4000 | 4500 | 5500 | 8000 |
| Dimension (m) | 3.3x1.2x2.1 | 3.6x1.1x2.1 | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 3.8x1.5x2.4 | 4.7x1.5x2.4 | 6x1.6x2.5 |
Other Pipe Line Assisting Parts :
- Screw and barrel : Use China’s best screw brand established in 1978 which has 40 years professional experience in production of screw barrels. An effective guarantee of product quality. Offer single-screw, twin-screw barrels also has special customized designs.
- Online Pipe Weight Metering And Monitoring System : Gravity metering equipment is used in the extrusion process which can save raw material consumption to the greatest extent and reduce boot waste. The control accuracy is less than ± 0.3%.
- Pipe Socketing Machine : This machine can be used for the belling of PVC/PP solid wall pipe, double-wall corrugated pipe. The belling mould adopts hydraulic driving. The range is Φ20-Φ800.
- Mixers : Adopts PLC control. It is mainly applied to the process of ingredients, mixing, coloring, drying and devolatilization of various resins such as polyvinyl chloride.
- Crusher : Shredding scraps during the production of reclaimed pipes and unconventional products produced during trial production. There are crushers with different uses and specifications to choose form.
