PERT Floor Heating Plastic Pipe Production Line For PPR Cold And Hot Pipe
Product Details
| Condition: | New | Automatic: | Full Automatic |
|---|---|---|---|
| Plastic Processed: | PERT | Main Electrical: | And Schneider |
| After Sales Service: | Engineer Overseas Service | Application: | Pipe |
| Highlight |
ppr pipe production line,cpvc pipe making machine |
||
Product Description

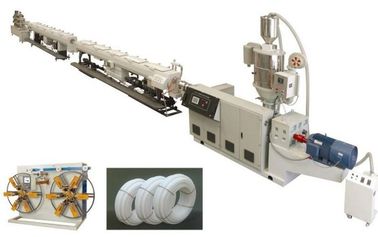

PERT Floor Heating Plastic Pipe Extrusion Line , PPR Cold And Hot Pipe Machinery
Quick detail:
Weight:8t
Power: 380V50HZ
Production line speed: 10-25m/min
Install power: 75KW
Power actual consumed :60KW
Screw type: single screw
After-sales Service Provided: Engineers available to service machinery overseas
.mould: change molds to produce different pipe products.
Minimum order: one set
certification: CE,CSA,UL,ISO9001
port: Shanghai port
voltage: 380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ,or according to customer’s requirement.
Process type: extruding machine

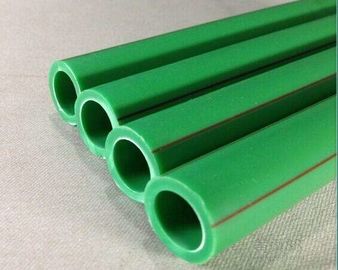

Product: floor heating pipe
Description:
PERT pipe production line
1) Special single screw extruder for polyolefin, having high extruding velocity and effective plasticization
2) Separation mixing screw specialized for polyolefin
3) Specially designed three co-extruding die, reasonable channel, smooth outside and inside wall, and little internal stress
4) Producing pipe limit Φ20-Φ160mm, manufacture velocity up to 16m/min
5) May be used to produce HDPE silicon core tube, ordinary PP-R,PE and PEX pipes
6) Low cost: the cost of nanometer & anti-virus pipe is merely increase 5-10% on the ordinary pipe basis
Specifications:
| Model | SJ65/30-33 |
| Pipe dia. | Φ20-63 |
| Screws dia.& ribbon width | Φ65,33:1;Φ65,30:1 |
| Output | 120kg/h |
| Linear velocity(max) | 10m/min |
| Installation capability | 58 |
| Productivity for year(meter) | 350 |
Applications:
It can in addition to the radiant floor heating, including residential, shopping mall, hotel, hospital, stadium
and so on with floor heating pipe; Can also be applied in the hot water supply on the one hand, including
bath tube, hot spring water, indoor swimming conveyer system, and can also be applied in the field of
industrial water, including heat exchanger, heating coil, chemical industry, medicine, fluid conveying pipe,
and so on
