Product Details:
|
| Condition: | New | Automatic: | Full Automatic |
|---|---|---|---|
| After Sales Service: | Engineer Overseas Service | Application: | Pipe |
| Screw Design: | Single-screw | MATERIAL: | PPR PE PP PVC |
| High Light: | ppr pipe production line,cpvc pipe making machine |
||
PPR Pipe Extrusion Line-Pipe Extrusion Line- Extrusion Line-Extrusion

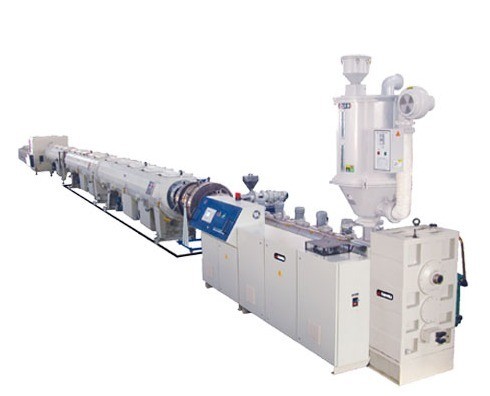

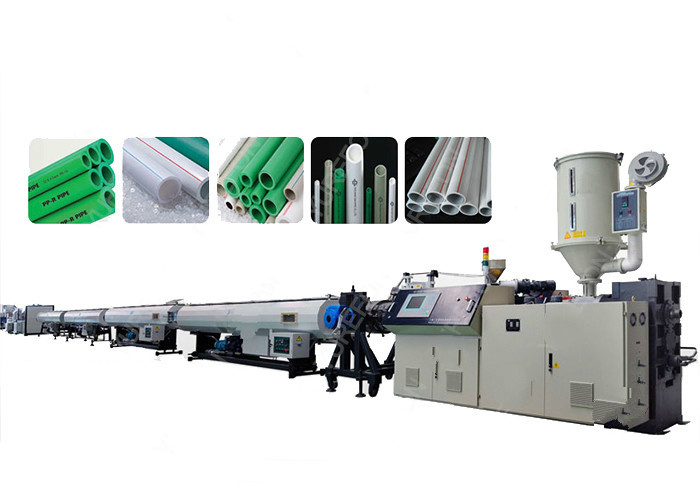

All the PPR pipe production line:
1. Automatic Feeder and drying hopper
2. Single Screw Extruder
3. Mark line extruder
4. PIPE molds
5. Vacuum sizing and spray cooling tank

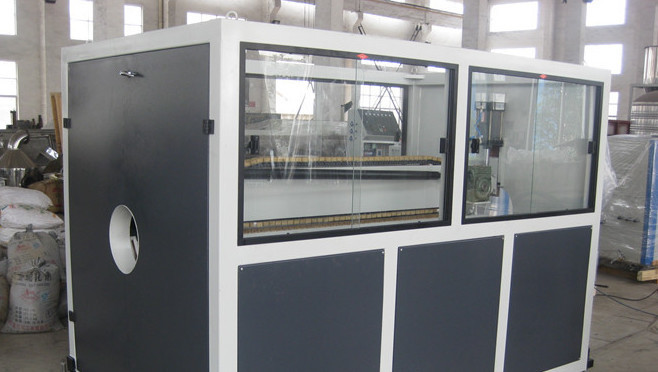

6. Belt haul-off
7. Non scrap Cutting unit
8. Stacker
9. Digital control cabinet
Features of machines:
Automatic PPR Pipe Making Machine Single Screw Extruder Economic
The feature of Plastic PPR Pipe and machinery:

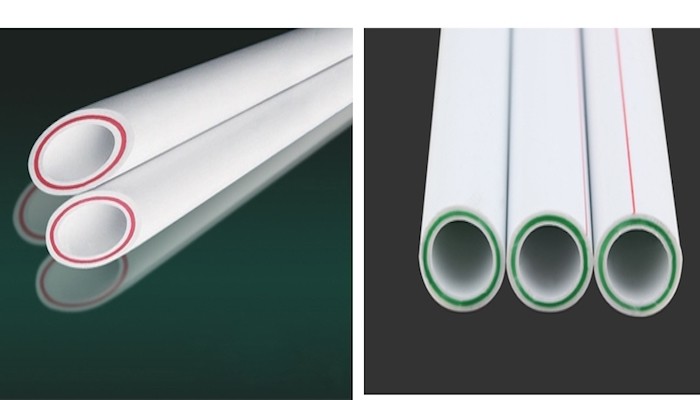

1) PPR pipes are used widely for hot&cold water, central heating system and so on.
2) The production line can choose to load labeled extruder to produce pipe material with color labeled.
3) It can also produce PE pipe.
The working process of Plastic PPR Pipe machinery:
Raw material-----mixing----vacuum feeder and drier-----single screw extruder-----co-extruder-----mould and calibrator-----vacuum forming table-----
water tank (spraying cooling tank) ------ haul-off machine ------ cutting machine----- stacker(winding machine).
Main Parameters of PPR pipe extrusion line
| Model | Pipe Size(mm) | Extruder Model | Speed Screw(r/min) | Line Speed(m/min) | Output(kg/h) | Total Power(kw) |
| PPR-63 | Ø20-63 | SJ-75/30 | 40-120 | 4-15 | 100 | 70 |
| PPR-110 | Ø20-110 | SJ-90/30 | 40-120 | 4-10 | 200 | 100 |
| PPR-160 | Ø75-160 | SJ-90/33 | 40-120 | 2-8 | 300 | 136 |
Langbo Machinery company is manufacturer and exporter of plastic pipe extruder,DWC pipe machine,corrugated pipe extrusion line,corrugated pipe
production line,plastic pipe machinery,plastic pipe extrusion machinery, spiral pipe extrusion line, spiral pipe extrusion machinery,DWC pipe
extrusion line sell all over the world
