Double Screw PVC / Wpc Profile Machine Floor Wall Panel Board Extrusion
Product Details
| Extruder: | Conical Twin Screw Extruder | Automatic Grade: | Automatic |
|---|---|---|---|
| Voltage: | Customized | Plastic Processed: | PVC |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service | Warranty: | 1 Year |
| Highlight |
pvc marble sheet production line,pvc sheet making machine |
||
Product Description
Double Screw Extruder PVC/WPC Floor wall panel Profile Board Extrusion Line
Product Detail
| extruder type | conical twin screw extruder |
| extruder model | 80/156 |
| raw material of product | PVC, foamed material, calcuim carbonate |
| mould | die head+calibration mould |
| board thickness | 5mm-25mm |
| Product Keywords | pvc foam board production line,pvc foam board machine,pvc foam board cutting machine |
Features:
1.Even plastication and agglomeration,
2.Reliable quality,
3.Long servicing life and direct conversion of powder into plastic products.

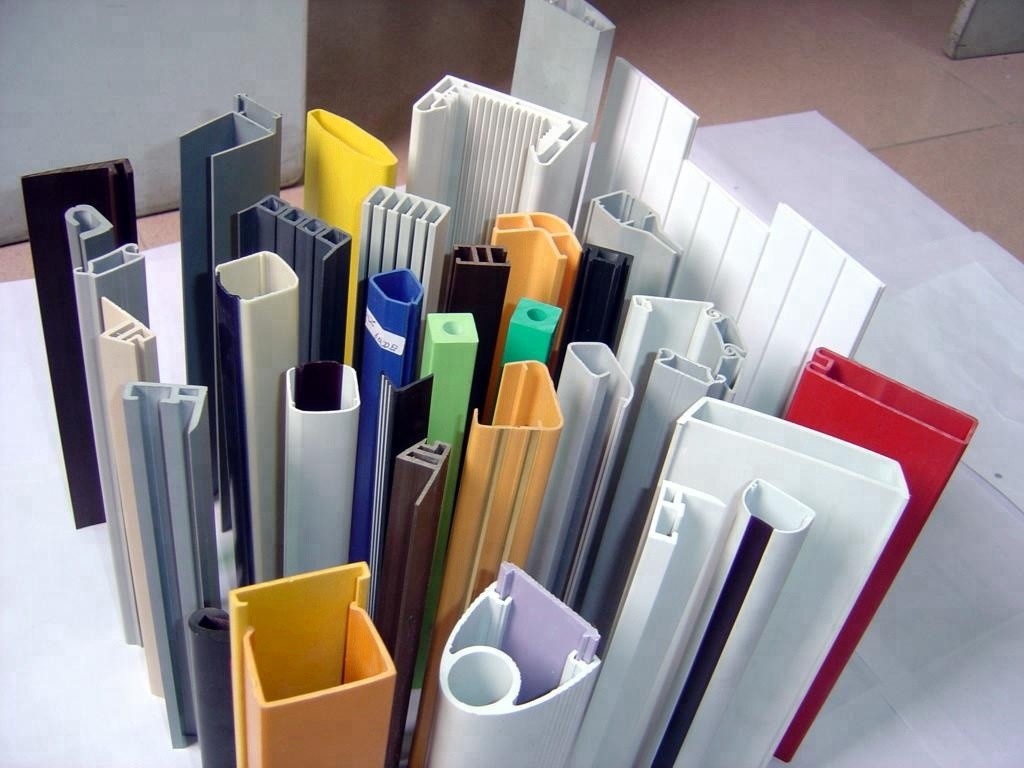

4.Equipped with our company's different mould tools down stream equipment, they can directly produce plastic products like pipes, rods, plates and profiles.
Application:
Advertisement: such as screen printing, computer lettering, ad board.
Architeture: such as buliding wall board, decoration board, housing, office, public buliding interlayer, commercial decoration shelf, non-dust room board, ceiling plate.
Transportation: such as steamship, aeroplane, carriage, traine compartment, roof shed, case core layer, inner upholster.
Industry: such as chemical industry antisepticizing project, thermoforming , for refrigeratory, for temperature keeping, for environment protection
These machines have features:
1.even plastication and agglomeration
2.reliable quality
3.wide application range
4.long servicing life and direct conversion of powder into plastic products.
5.Equipped with our company's different mould tools down stream equipment, they can directly produce plastic products like pipers, rods, plates and profiles.
| Model | 92/188 | 80/156 |
| Power of drive motor(kw) | 90 | 75 |
| Screw diameter(mm) | Ø 92/188 | Ø 80/156 |
| No. of screw | 2 | 2 |
| Rotational speed(N.W) | 34.7 | 34.7 |
| Screw torque | 20000 | 14000 |
| Capacity PVCpowder(kg/h) | 600 | 400 |
| Central height(mm) | 1000 | 1100 |
| Dimensions(mm) |
Product Highlights
Double Screw Extruder PVC/WPC Floor wall panel Profile Board Extrusion Line Product Detail extruder type conical twin screw extruder extruder model 80/156 raw material of product PVC, foamed material, calcuim carbonate mould die head+calibration mould board thickness 5mm-25mm Product Keywords pvc ...
