Pe / Po Single Screw Extruder Plastic Pipe Extrusion Machine
Product Details
| MOTOR POWER: | 1.1-210KW | SCREW CONCEPT: | SINGLE SCREW |
|---|---|---|---|
| CAPACITY: | 1.5KG-1200KG | COOLING METHOD: | RECYCLED WATER |
| SCREW MATERIAL: | 38CrMoAlA | WARRANTY: | CORE COMPONENTS 1 YEAR |
| Highlight |
Po Plastic Pipe Extruder,Single Screw Extruder line machine,Pe Single Screw Extruder |
||
Product Description

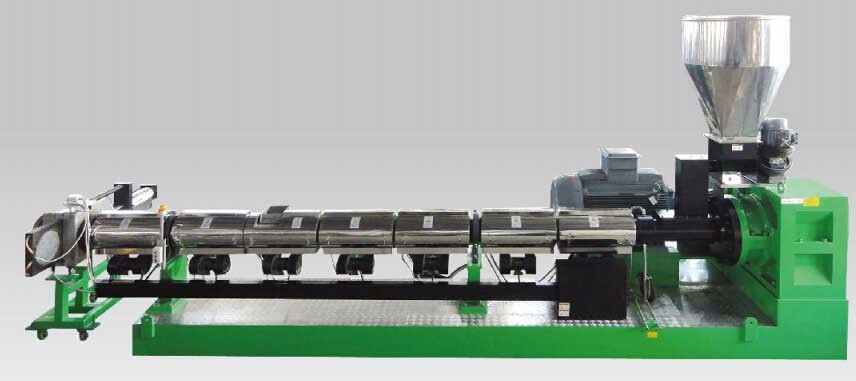

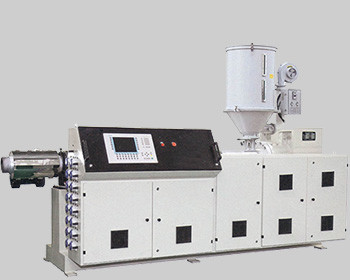

SINGLE SCREW EXTRUDER
COMPONENTS AND FEATURES:
Single screw extruder is professional equipment to extrude the material of polyolefin. Equipped with different die head, downstream equipment, it can be applied for manufacturing of polyolefin pipe, panel, sheet, film, yarn and pelletizing, etc.. It consists of following items:
- Driving motor: equipped with famous brand motor as driving source.
- Gearbox: equipped with famous brand gearbox to ensure the maximum output of power

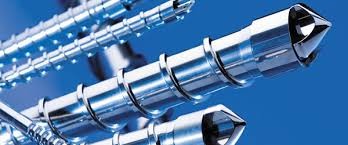

- Screw & barrel: both the screw and barrel adapted the designing of combined of independent teeth and mixing components together for screw and the feeding groove and longer feeding section together for barrel to get the optimizing plasticizing and capacity.
- Control system: equipped with famous brand electrical components ensure to get the accurate control
SPECIFICATIONS:
| Model |
Screw diameter (mm) |
L/D |
Rotary speed (rpm) |
Motor power (kw) |
Capacity (kg/hr) |
| SJ25/25 | 25 | 25:1 | 25-130 | 1.5 AC | 1-3 |
| SJ30/25 | 30 | 25:1 | 25-150 | 5.5 AC | 2-8 |
| SJ45/30/33 | 45 | 30:1,33:1 | 8-100 | 7.5 /15 AC | 4-50 |
| SJ65/30/33 | 65 | 30:1,33:1 | 12-150 | 37/55 AC | 50-120/50-250 |
| SJ75/30/33 | 75 | 33:1 | 12-120 | 90 DC | 50-350 |
| SJ90/30/33 | 90 | 33:1 | 10-120 | 90/160 DC | 100-320/100-550 |
| SJ120/30/33 | 120 | 33:1 | 9-90 | 160/250 DC | 200-500/200-800 |
| SJ150/30/33 | 150 | 33:1 | 7-75 | 250/315 DC | 300-800/500-1200 |
