Product Details:
|
Name: | PVC Pipe Extrusion Line | Packaging Details: | Film Wraping |
---|---|---|---|
Plastic: | PVC | Application: | Pipe Making |
Raw Material: | Pvc Powder | Screw Design: | Conical Twin Screw |
Material Of Screw: | 38CrMoALA | Motor: | Siemens |
Inverter: | ABB | Temperature Sensor: | Omron |
Highlight: | PVC Light Pipe Extrusion Making Machine,Self Extinguishing PVC Pipe Making Machine |

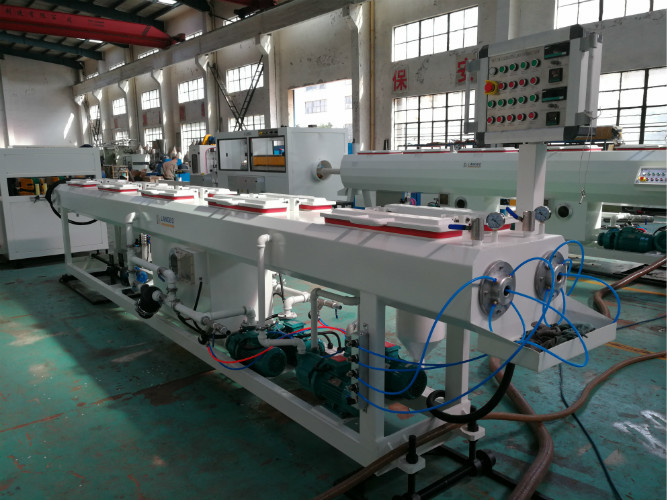

High Quality PVC Pipe Making Machine
Product Features
By working synchronous with pipeline, without any human intervention, machine can take pipes from the line and then make belling.
Pipe heating degree and blowing pressure can be adjusted.
With the wide selection feature on touch screen, wastage of pipe can be prevented.
By using internal PLC system, machine can work independently from pipe line.
PRODUCTION PROCESS FLOW
The first step of pipe production is the preparation of raw material. Customers can mix the PVC powder with other additives by themself. The mixture will be feeded into extruder. The material will be plasticized in the extruder and then be extruded into the mould. The material is shaped by mould and goes out with the pipe looking. The pipe extruded from the mould is hot and soft. The pipe with unstable shape will be calibrated and cooled by vacuum sleeve in the vacuum calibration tank. And then the pipe goes into the cooling tank for a further cooling. Haul off unit stands next to the cooling tank and take the pipe away from the extruder. According to the defined length, the pipe will be cut and then packed for transport.
Following ADVANTAGES are the reasons, why PVC pipe so widely applied.
Corrosion Resistant
With self-extinguishing and flame retardant;
Excellent in anti-aging character
The PVC pipe is light, easy to flaring, bonding, bending, welding.
Installation workload and Processing cost are lower than metal pipe
Good electrical properties of resistance
Recycled and Environment-friendly.
