High Efficiency PVC Conduit Pipe Manufacturing Machine
Product Details
| Name: | PVC Pipe Extrusion Line | Packaging Details: | Film Wraping |
|---|---|---|---|
| Plastic: | PVC | Application: | Pipe Making |
| Raw Material: | Pvc Powder | Screw Design: | Conical Twin Screw |
| Material Of Screw: | 38CrMoALA | Inverter: | ABB |
| Temperature Sensor: | Omron | ||
| Highlight |
PVC Conduit Pipe production Extrusion Line,PVC Conduit Manufacturing Machine,High Efficiency PVC Pipe Extrusion Line |
||
Product Description
High Efficiency PVC Conduit Pipe manufacturing machine
MAIN COMPONENTS OF PRODUCTION LINE
In order to meet the customized production plan, various design concepts for equipment will be adopted.

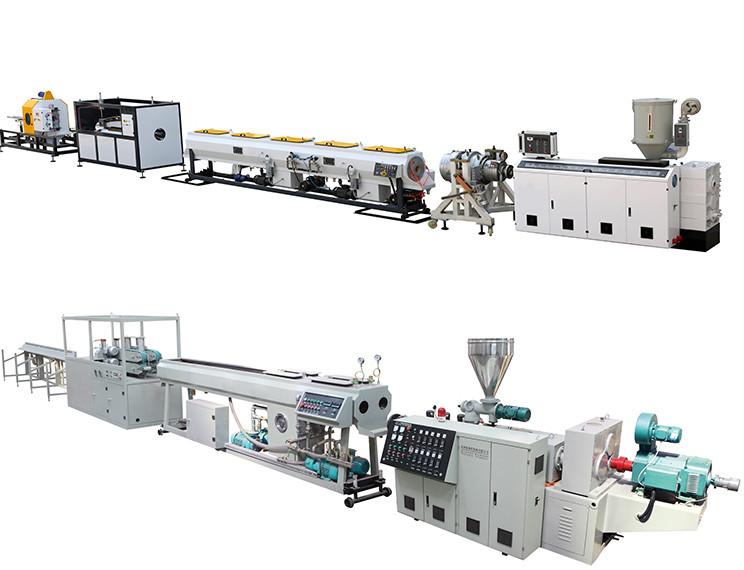

Basically feeding system, conical twin-screw extruder, mould, vacuum calibration tank, cooling tank, haul-off machine, cutter, socket forming machine (optional) and stacker build up the complete production line.
If you want a customized production plan, please contact us to get more detailed information.
The Four Strand die head contacts melt flow channels, it is especially designed to ensure an excellent performance in whole range of pipe diameter. According to the material characteristic of pipe, the designing of the die head and die system changes and even at high extrusion pressure. It gives stable and perfect outcome.
For a stable production with high performance we have a mature solution package, which involves design concept, manufacturing and assembly process. It can eliminates many potential risks during production.
The Core components such as motor and frequency inverter are chosen from the world famous brand, which guarantees a precise and reliable production.
Product Features
By working synchronous with pipeline, without any human intervention, machine can take pipes from the line and then make belling.
Pipe heating degree and blowing pressure can be adjusted.
With the wide selection feature on touch screen, wastage of pipe can be prevented.
By using internal PLC system, machine can work independently from pipe line.
PRODUCTION PROCESS FLOW
The first step of pipe production is the preparation of raw material. Customers can mix the PVC powder with other additives by themself. The mixture will be feeded into extruder. The material will be plasticized in the extruder and then be extruded into the mould. The material is shaped by mould and goes out with the pipe looking. The pipe extruded from the mould is hot and soft. The pipe with unstable shape will be calibrated and cooled by vacuum sleeve in the vacuum calibration tank. And then the pipe goes into the cooling tank for a further cooling. Haul off unit stands next to the cooling tank and take the pipe away from the extruder. According to the defined length, the pipe will be cut and then packed for transport.
