Pe Co Extrusion Ppr Pipe Production Line 350kgs / H Multi Layer Tube

PPR/PE CO-EXTRUSION PIPE PRODUCTION LINE​

APPLICATIONS OF MULTI-LAYER PIPE PRODUCTION LINE

Multi-Layer pipes are produced by co-extrusion pipe line. The production line is a kind of special craft processes which can save the cost of raw material and make a series of pipes with functional features.

For Example, in order to save the cost of raw material, we can use the recycled material which is to be the middle layer to produce the PE thick wall pipes. For hot water supply pipes, the production line could not only have the PP-R Layer but also increase some other structure Layer including glass fiber, which attach the pipe to some excellent application features.

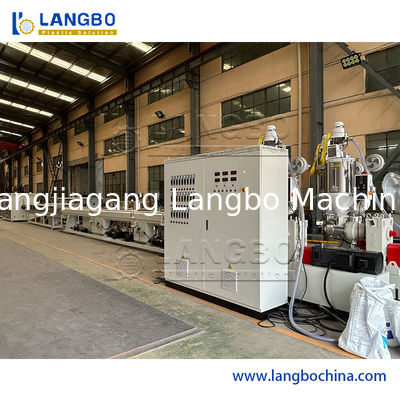

THE COMPLETE EXTRUSION LINE IS COMPOSED OF THE FOLLOWING ITEMS:

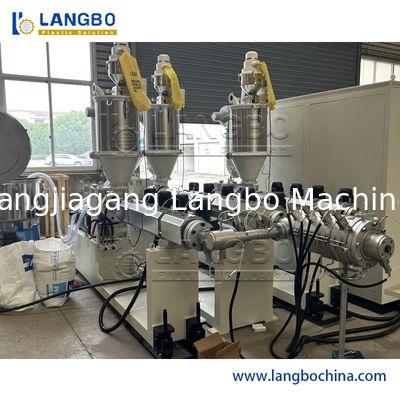

• Single screw extruder

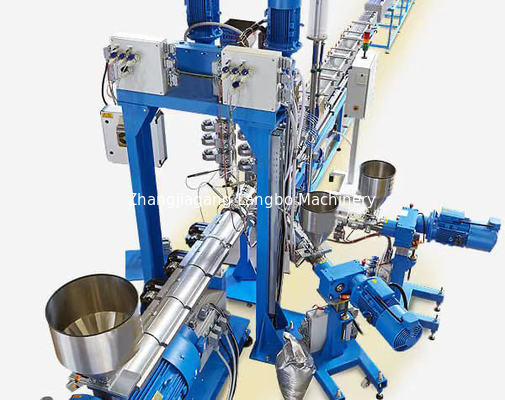

• Co- extruder: manufacturing marking line on pipe or multilayer of pipes

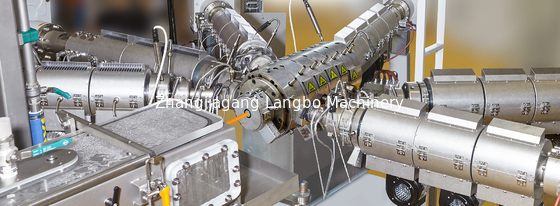

• Die head
• Vacuum tank: due to diameter, it can be designing of single, double vacuum chamber

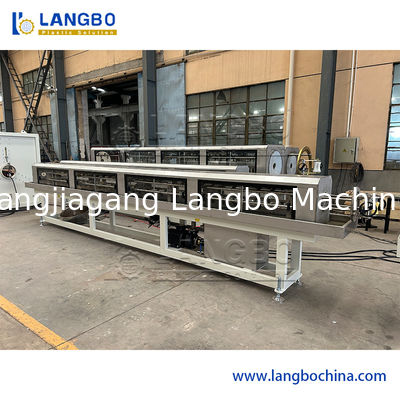

• Cooling tank: due to diameter, the numbers of cooling tank can be one, two or three

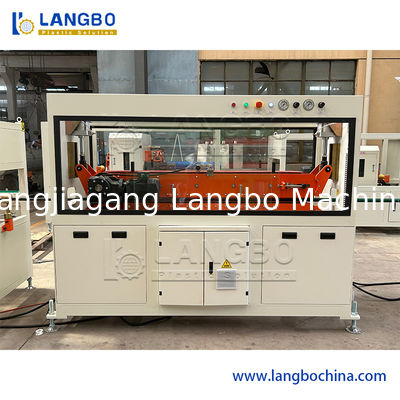

• Haul-offs: due to diameter, it can be designing of double, three, four, six, eight, ten, twelve caterpillars

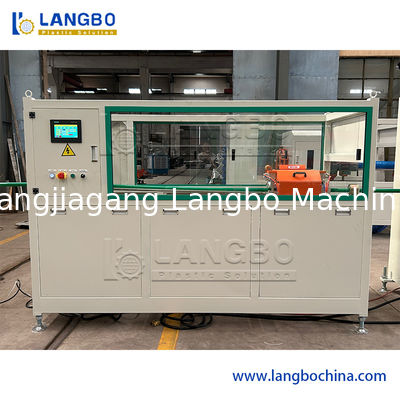

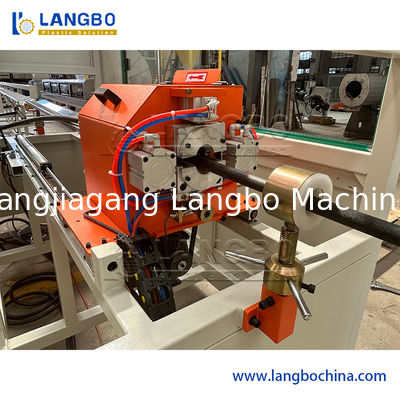

• Cutter: due to diameter, it can be designing of no-scraps cutter or planetary cutter

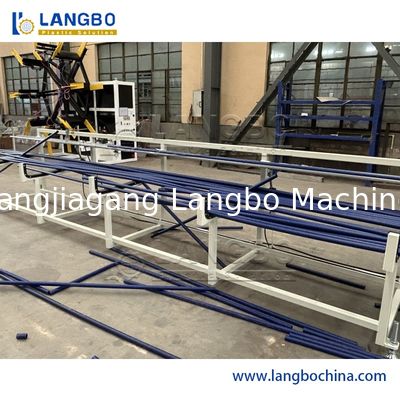

• Coiler/Tipping chute
•

TECHNICAL PARAMETERS:

Pipe diameter(mm) 50,75,90,110,160 75,90,110,160,200,250

Extruder(for middle layer) 65/132 80/156

Extruder (for outer& inner layer) 65/132 or 55/120 65/132

Length of vacuum tank(mm) 6000 6000

Haul-offs machine 3claw 3claw

Cutting machine planetary cutting planetary cutting
