Twin Screw WPC Pelletizing Extrusion Line Decking Board 350KG / H
Product Details
| EXTRUDER MODEL: | CONICAL TWIN SCREW EXTRUDER | PROFILE'S SIZE: | 1240MM |
|---|---|---|---|
| MOTOR POWER: | 55KW | RAW MATERIAL: | WPC & ADDITIVES |
| CUTTER: | SAW CUTTER | CAPACITY: | 300-350KG/H |
| Highlight |
WPC Pelletizing Extrusion Line,350KG/H WPC Extrusion Line,Twin Screw WPC Decking extrusion Line |
||
Product Description
Twin Screw WPC Pelletizing Extrusion Line Decking Board 350KG / H

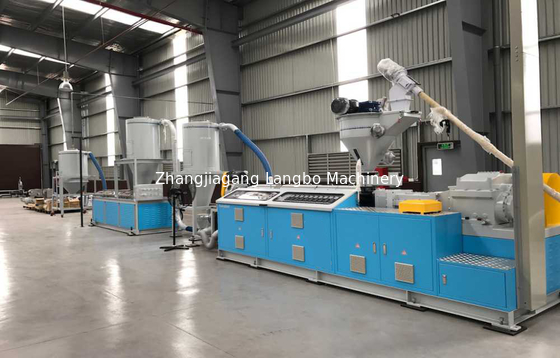

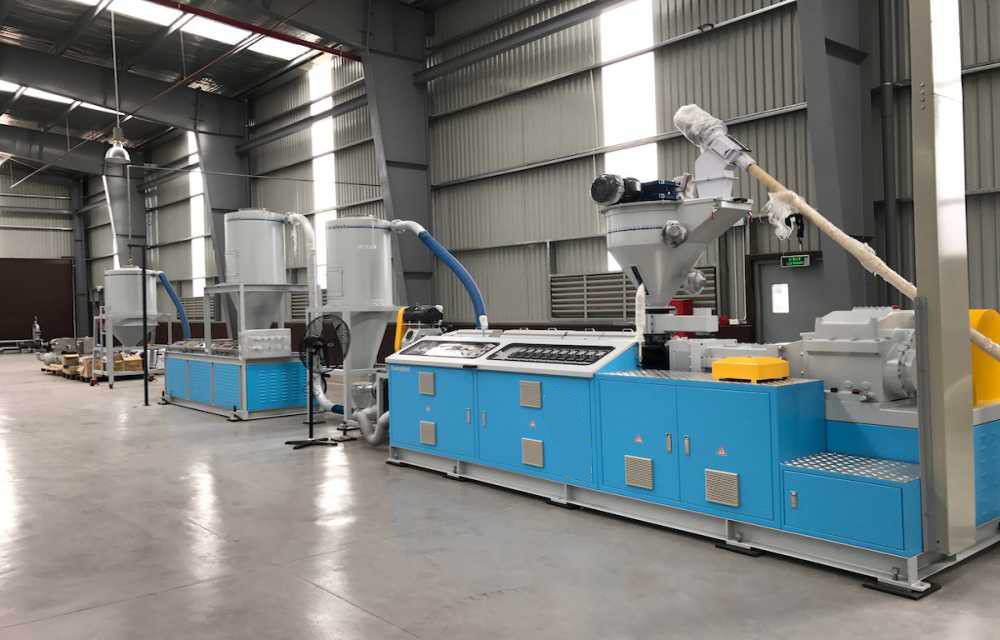

PROFILE EXTRUSION MACHINE LINE
LANGBO MACHINERY Profile Extrusion Line can produce plastic products that can be applied in a wide range of industries, including building materials, stationery, furniture, medical equipment, and home appliances, etc.
LANGBO MACHINERY offers a complete line of single and twin-screw compounding & pelletizing extrusion systems featuring extruders designed for the specific application.
MAIN FEATURES ON WPC EXTRUSION LINE
1) Simple structure in linear type, easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

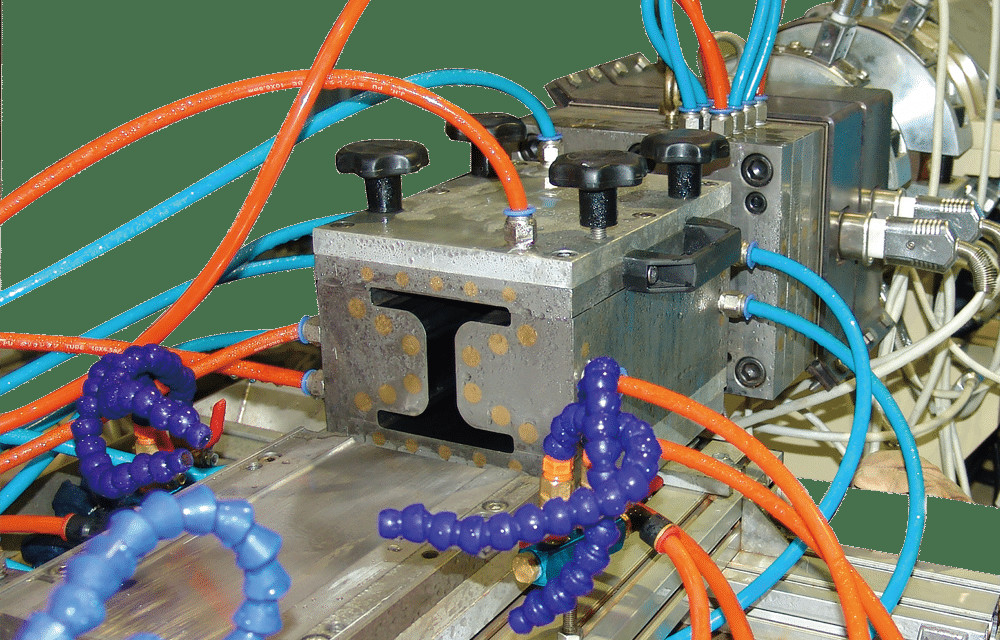

3) High pressure oil temperature control the die extrusion.
4) Running in a high automation and intellectualism, no pollution.
5) Apply a linker to connect with the air conveyor, which can directly inline with filling machine
SPECIFICATION:
The Table provides a general information for standard Product.
For Further customized technical assignment please contact us.
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
| Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| The effective length of the screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Main motor power (kW) | 15 | 22 | 37 | 55 | 90 |
| Barrel heating power (kW) | 12 | 18 | 24 | 36 | 48 |
| Capacity (kg/h) | 95 | 110 | 250 | 380 | 520 |
| Central height (mm) | 1000 | ||||
| Net Weight(kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
Product Highlights
Twin Screw WPC Pelletizing Extrusion Line Decking Board 350KG / H PROFILE EXTRUSION MACHINE LINE LANGBO MACHINERY Profile Extrusion Line can produce plastic products that can be applied in a wide range of industries, including building materials, stationery, furniture, medical equipment, and home ...
75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine
75-250mm PVC Pipe Electrical Conduit Water Supply Making Machine This complete PVC pipe production line manufactures high-quality PVC/UPVC pipes ranging from 16mm to 800mm in diameter. The system is engineered for producing electrical conduit pipes, water supply pipes, and construction plumbing pipes with various diameters and wall thickness specifications. Applications The manufactured UPVC pipes serve multiple applications including electrical conduit systems, water supply
50-250MM HDPE Pipe Making Machine Single-Screw Full-Automatic PE Pipe Extrusion Line
50-250MM HDPE Pipe Making Machine Extrusion Production Line Product Overview The HDPE pipes with large diameter are typically applied for fuel gas and water supply systems. These pipes feature excellent characteristics including heat resistance, aging resistance, high mechanical strength, environmental stress crack resistance, and good creep resistance. They serve as preferred conduits for ductwork systems and water supply networks between cities and suburbs. PE Pipe
Gas Water PE Pipe Extrusion Line Single Outlet 4 - 9m / Min Capacity
PE Pipe Extrusion Line HDPE gas water pipe machine, PE gas pipe extrusion line Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system. plastic machine Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production. PE PIPE PROCUTION LINE MAIN COMPONENTS: No Equipment Quantity 1 Vacuum loader and hopper dryer 1set 2 Single screw extruder 1set 3 Die-head 1set 4 color line
Decoration PVC Foam Board Extrusion Line 45 / 90mm Double Screw Diameter
PVC free foam sheet production line/foam board extrusion line / PVC foam decoration sheet production line Products characteristics 1) Water proof, anti-flaming, damp proof, rot proof, mothproof, light weight, keep temperature, sound and heat insulation and shock proof etc. 2) Color-way is not changed long time and not easy to aging under radiation resistance 3) This product can be manufactured by general wood processing tools; It can be drilled, sawed, nailed and dig.It is
