Laminated PVC Profile Extrusion Line Wall Panel 20cm Ceiling Production Line

Laminated PVC Profile Extrusion Line Wall Panel 20cm Ceiling Production Line
Laminated PVC Profile Extrusion Line Wall Panel 20cm Ceiling Production Line Laminated PVC Profile Extrusion Line Wall Panel 20cm Ceiling Production Line Laminated PVC Profile Extrusion Line Wall Panel 20cm Ceiling Production Line Laminated PVC Profile Extrusion Line Wall Panel 20cm Ceiling Production Line

Large Image :  Laminated PVC Profile Extrusion Line Wall Panel 20cm Ceiling Production Line

Product Details:
Place of Origin: ZHANGJIAGANG
Brand Name: LB
Certification: CE,ISO
Model Number: LB-1240
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD,EUR
Packaging Details: STANDARD PACKAGE
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 15 SETS PER MONTH

Laminated PVC Profile Extrusion Line Wall Panel 20cm Ceiling Production Line

Description
EXTRUDER MODEL: CONICAL TWIN SCREW EXTRUDER PROFILE'S SIZE: 1240MM
MOTOR POWER: 55KW RAW MATERIAL: PVC & ADDITIVES
HAUL-OFFS: TWO INDEPENDENT TRACKS CAPACITY: 350KG/H
High Light:

PVC Wall Panel Extrusion Production Line

,

20cm PVC ceiling Profile Extrusion Line

,

Laminated PVC Profile Extrusion Line

Quality Laminated PVC Wall Panel Production Line

COMPLETE PVC WALL PANEL MAKING MACHINE

High speed PVC wall ceiling panel making machine with lamination is used to make different shape of PVC ceiling panel, PVC profile for wall panel and so on. The width of final PVC ceiling can be 15 cm, 20 cm, 25 cm, 30 cm, 60*60cm etc. The surface of PVC ceiling panel can be treated by printing,hot stamping or lamination.

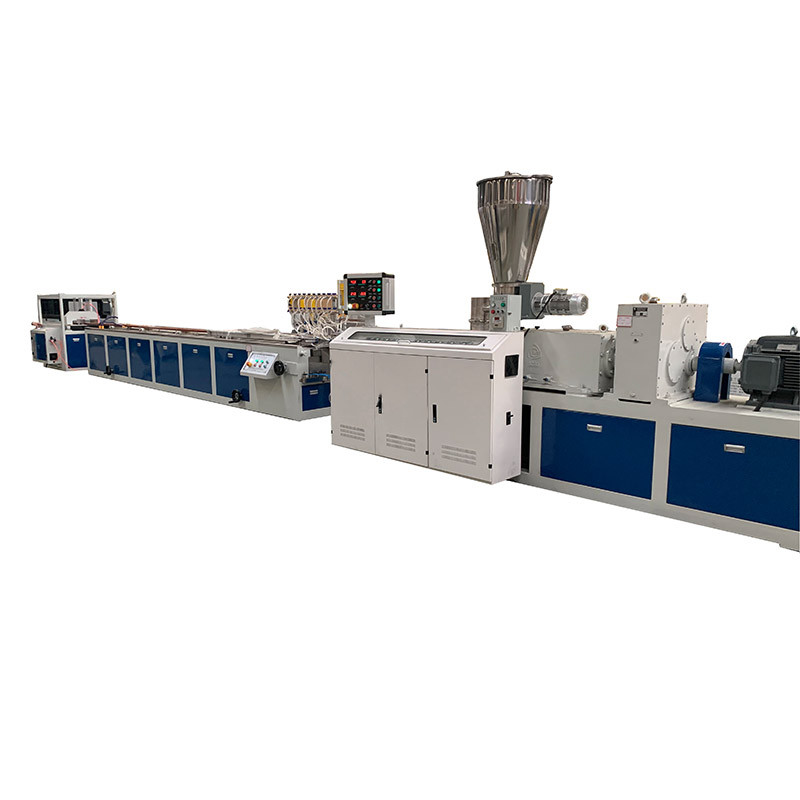

                                    Laminated PVC Profile Extrusion Line Wall Panel 20cm Ceiling Production Line 0

PRODUCT DESCRITION

PVC wall panel production line with lamination



* extruder flange adopts hinged type, convenient for changing filtration net, reduce time for changing net.

* speed controlled by inverter, saving power and easy to adjust speed

* extruder temperature controlled by Omron intelligent controller, temperature fluctuation self adjusting

* easy and convenient for operation and maintain

* low power consumption

* economical price, suitable for large scale investment.

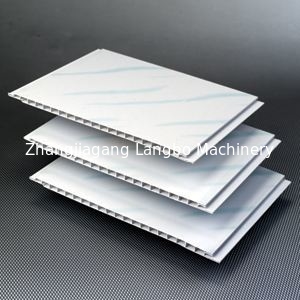

Laminated PVC Profile Extrusion Line Wall Panel 20cm Ceiling Production Line 1

THE COMPLETE EXTRUSION CONSISTS OF FOLLOWING ITEMS:

  • Conical Twin Screw Extruder:
  • It is used for melting and stirring plastic material. LANGBO adapts special screw and barrel type that provide perfect mixing and homogenous. We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.
  • Mould:
  • Our mould designing gives ideal viscosity to melt material for profile producing. It gives profile or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.
  • Calibration Table:
  • The shaped profile that come from mould is subjected to calibration and cooling processing on the calibration table. The designing of calibration table varies according to the type and characteristic of the profile. The area that contacts with water is made of stainless steel in order to prevent corrosion.
  • Caterpillar Haul-off:
  • The designing of caterpillar haul-off changes depending on the contact area that is related to the profile measurement. The inverter control is standard on all caterpillar haul-off. For this reason, as the speed can adjusted with respect to material output rate. The caterpillar haul-off is also capable of making measurement adjustment through speed control equipment.
  • Saw cutter:
  • In the speedy working condition, profile saw works with high efficiency in term of cutting frequency. As the saw table and clamps move synchronously. The saw cuts the profile in required length. During the cutting processing, swarf and dust appears, in order to prevent these in production area, there is a dust collection unit is integrated in saw cutter. This unit absorbs swarf, dust effectively and removes to storage.
  • Tip-off unit:

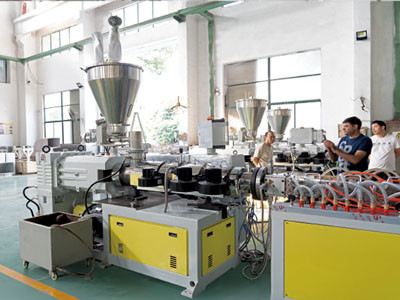

  • It operates on pneumatic cylinder.Laminated PVC Profile Extrusion Line Wall Panel 20cm Ceiling Production Line 2Laminated PVC Profile Extrusion Line Wall Panel 20cm Ceiling Production Line 3
